8. MAGNETO

Click Here for Microfiche Usage Tip

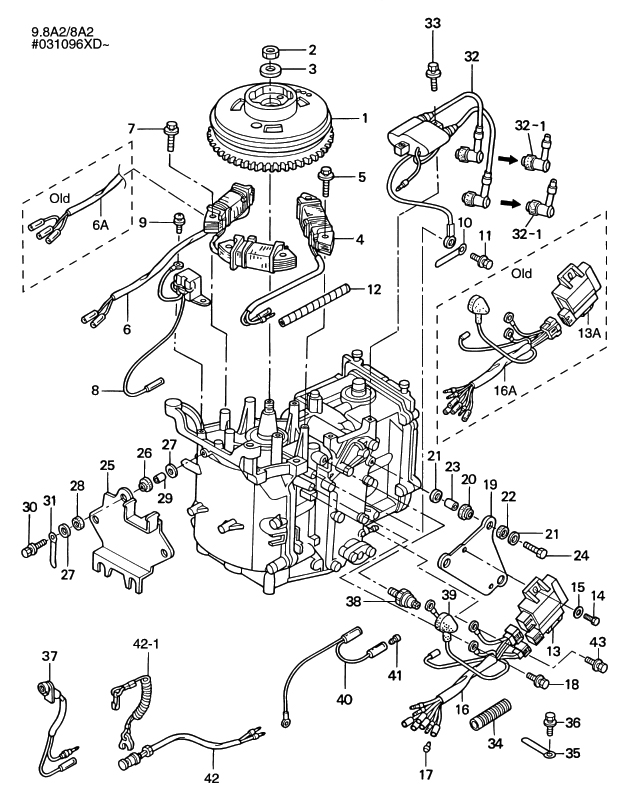

(1) FLYWHEEL CUP(2) NUT,12-P1.25(3) WASHER(4) EXCITER COIL (NEW)(4) EXCITER COIL (OLD)(5) BOLT(6) ALTERNATOR (NEW)(6A) ALTERNATOR (OLD)(7) BOLT(8) PULSER COIL(9) SCREW(10) CLAMP, 6.5-47.5P(11) BOLT(12) SPIRAL TUBE PROTECTOR(13) C.D. UNIT (CU7256) (NEW)(13A) C.D. UNIT (CU7228A) (OLD)(14) BOLT, 6-16 PRE COATED(15) WASHER, 6-16-1.5(16) CORD ASSY, C.D. UNIT (NEW)(16A) CORD ASSY, C.D. UNIT (OLD)(17) PLUG "B", CABLE TERMINAL(18) BOLT(19) BRACKET, C.D. UNIT(20) RUBBER MOUNT, 8.5-18-7(21) WASHER, 6-16-1.5(21) WASHER, 6-16-1.5(22) RUBBER MOUNT, 9-16-4.3(23) COLLAR, 6.2-9-7.4(24) BOLT(25) ELECTRIC BRACKET(26) RUBBER MOUNT, 8.5-18-7(27) WASHER, 6-16-1.5(27) WASHER, 6-16-1.5(28) RUBBER MOUNT, 9-16-4.3(29) COLLAR, 6.2-9-7.4(30) BOLT(31) CLAMP, 6.5-87P(32) IGNITION COIL(32-1) PLUG CAP ( WITH RESISTANCE)(32-1) PLUG CAP ( WITH RESISTANCE)(33) BOLT(34) PROTECTOR(35) CLAMP, 6.5-87P(36) BOLT(37) PILOT LAMP(38) SWITCH, OIL PRESSURE(39) GROMMET, OIL PRESSURE SWITCH(40) SEPARATE CORD (BLACK)(41) PLUG "B", CABLE TERMINAL(42) LANYARD STOP SWITCH "A"(42-1) LOCK, STOP SWITCH(43) BOLT



Parts List
2004 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A2 :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP 3AA060910M 3AA-06091-0 # 031096XD~ / FF-51 WITH RING GEAR $279.34 1
(2) NUT 12-P1.25 369001320M 369-00132-0 $1.61 1
(3) WASHER 9401211200M 940121-1200 $0.97 1
(4) EXCITER COIL 3AA060210M 3AA-06021-0 #031096XD~ / CORD COLOR BLACK/RED & BLUE/RED $48.03 1
(4) EXCITER COIL (OLD) 3V1060210M 3V1-06021-0 ~# 027338XD CORD COLOR BLACK/RED & BLUE $0.00 0 Sold Out View More Details
(5) BOLT 9101035630M 910113-5630 $1.15 2
(6) ALTERNATER 3AA060230M 3AA-06023-0 9.8A2/8A2 SINGLE CONNECTOR FOR EF & EP # 031096XD~ $61.59 1
(6A) ALTERNATOR 3V1060230M 3V1-06023-0 9.8A/8A BRANCHING CONNECTOR FOR EF & EP ~# 027338XD $0.00 0 Sold Out View More Details
(7) BOLT 9101035630M 910113-5630 FOR EF & EP $1.15 4
(8) PULSER COIL 3V1060710M 3V1-06071-0 $29.97 1
(9) SCREW 9215030512M 921503-5512 $0.83 2
(10) CLAMP 6.5-47.5P 309069720M 309-06972-0 ALTERNATOR & EXCITER CABLE $2.07 1
(11) BOLT 9101035616M 910103-5616 $1.15 1
(12) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 ø10-100 / ALTERNATOR & EXCITER CABLE $6.21 1
(13) C.D. UNIT (CU7256) 3AA060600M 3AA-06060-0 9.8A2/8A2 # 031096XD~ / 6P & 4P-CONNECTOR $165.19 1
(13A) C.D. UNIT (CU7228A) (OLD) 3V1060601M 3V1-06060-1 9.8A/8A ~# 027338XD / 8P-CONNECTOR $0.00 0 Sold Out View More Details
(14) BOLT 6-16 PRECOATED 3V1601080M 3V1-60108-0 OLD PART NO. 3V1-06864-0 $1.43 2
(15) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(16) C.D. UNIT CORD ASSY 3AA061670M 3AA-06167-0 9.8A2/8A2 # 031096XD~ / 6P & 4P-CONNECTOR $82.60 1
(16A) CORD ASSY C.D. UNIT (OLD) 3V1061670M 3V1-06167-0 9.8A/8A ~# 027338XD / 8P-CONNECTOR $0.00 0 Sold Out View More Details
(17) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 LIGHT GREEN & WHITE CABLE $1.50 2
(18) BOLT 9101035612M 910103-5612 GROUND CABLE $1.07 1
(19) C.D. UNIT BRACKET 3V1060610M 3V1-06061-0 $0.00 1 Sold Out View More Details
(20) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 3
(21) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 6 Sold Out View More Details
(22) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 $0.92 3
(23) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 3 Sold Out View More Details
(24) BOLT 9101130625M 910113-0625 $0.95 3
(25) ELECTRIC BRACKET 3V1069000M 3V1-06900-0 FOR EF & EP $23.60 1
(26) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 FOR EF & EP $1.04 3
(27) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR EF & EP $1.59 6 Sold Out View More Details
(28) RUBBER MOUNT 9-16-4.3 3B7063050M 3B7-06305-0 FOR EF & EP $0.92 3
(29) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 FOR EF & EP $2.21 3 Sold Out View More Details
(30) BOLT 9101130620M 910113-0620 FOR EF & EP $1.04 3
(31) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 FOR EP $1.53 1
(32) IGNITION COIL 3V1060400M 3V1-06040-0 $54.23 1
(32-1) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 $25.93 2
(33) BOLT 9101035625M 910103-5625 $1.47 2
(34) PROTECTOR 3V1061330M 3V1-06133-0 ø34-70 / FOR MF $3.62 1
(35) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 FOR MF $1.53 1
(36) BOLT 9101135612M 910113-5612 FOR MF $1.07 1
(37) WARNING LAMP 3R3710400M 3R3-71040-0 $21.44 1
(38) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(39) GROMMET OIL PRESSURE SWITCH 3H6076120M 3H6-07612-0 $2.77 1
(40) SEPARATE CORD ( BLACK) 3V5726780M 3V5-72678-0 $6.84 1
(41) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 $1.50 1
(42) STOP SWITCH 398068300M 398-06830-0 FOR MF & EF $48.44 1
(42-1) STOP SWITCH LANYARD 353068210M 353-06821-0 FOR MF & EF $16.48 1 Sold Out View More Details
(43) BOLT 9101035612M 910103-5612 FOR MF $1.07 1
