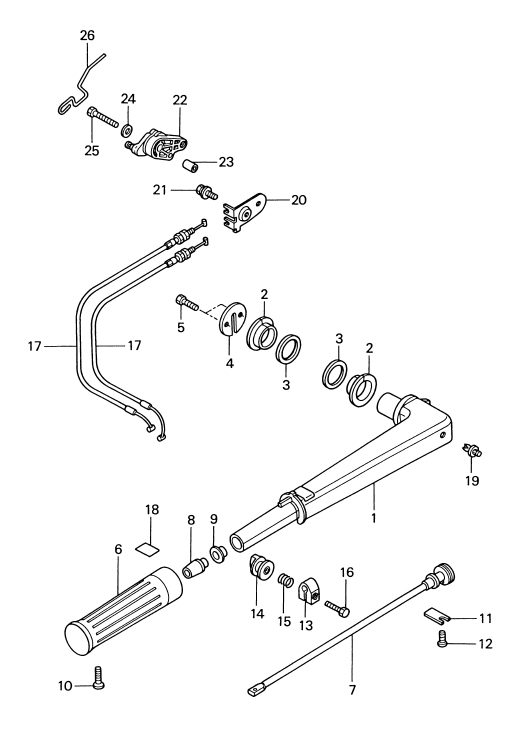

11. TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) TILLER HANDLE(2) BUSHING, HANDLE(2) BUSHING, HANDLE(3) WASHER(3) WASHER(4) COVER(5) BOLT(6) GRIP(7) THROTTLE SHAFT(8) RUBBER, THROTTLE SHAFT(9) BUSHING,14-15.8-7(10) SCREW(11) SUPPORTER, THROTTLE SHAFT(12) SCREW(13) FRICTION PIECE(14) ADJUST NUT(15) SPRING(16) BOLT(17) THROTTLE CABLE(17) THROTTLE CABLE(18) LABEL, THROTTLE(19) PLASTIC RIVET, 6.5(20) BRACKET, THROTTLE CABLE(21) BOLT(22) THROTTLE DRUM(23) SPACER, 6.2-9-15.7(24) WASHER, 6.5-16-1.5(25) BOLT(26) THROTTLE ROD



Parts List
2004 :: 8 HP :: 4 Stroke Nissan NSF8A2 :: TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE 3V1S630110 3V1S63011-0 FOR MF & EF $49.18 1
(2) HANDLE BUSHING 3V1631020M 3V1-63102-0 FOR MF & EF $2.58 2
(3) WASHER 33.5-43-3 3V1631081M 3V1-63108-1 FOR MF & EF $1.85 2
(4) COVER 3V1631070M 3V1-63107-0 FOR MF & EF $3.57 1
(5) BOLT 9101130616M 910113-0616 FOR MF & EF $0.98 2
(6) GRIP 3R3630120M 3R3-63012-0 FOR MF & EF $16.97 1
(7) THROTTLE SHAFT 3V1630410M 3V1-63041-0 FOR MF & EF $12.14 1
(8) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 FOR MF & EF $1.85 1 Sold Out View More Details
(9) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 FOR MF & EF $1.27 1
(10) SCREW 9218030518M 921803-0518 FOR MF & EF $0.72 1
(11) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 FOR MF & EF $2.31 1
(12) SCREW 9215130612M 921513-0612 FOR MF & EF $0.93 1
(13) FRICTION PIECE 3V1630350M 3V1-63035-0 FOR MF & EF $2.58 1
(14) ADJUSTING NUT 3V1630770M 3V1-63077-0 FOR MF & EF $3.85 1
(15) SPRING 3V1630360M 3V1-63036-0 FOR MF & EF $1.57 1
(16) BOLT 9101130625M 910113-0625 FOR MF & EF $0.95 1
(17) THROTTLE CABLE 3V1636000M 3V1-63600-0 FOR MF & EF $17.26 2
(18) THROTTLE DECAL 3V9720190M 3V9-72019-0 FOR MF & EF $2.19 1
(19) PLASTIC RIVET 6.5 350671540M 350-67154-0 FOR MF & EF $1.85 1
(20) THROTTLE CABLE BRACKET 3V1635080M 3V1-63508-0 $5.93 1
(21) BOLT 9101135612M 910113-5612 $1.07 1
(22) THROTTLE DRUM 3V1636220M 3V1-63622-0 $4.14 1
(23) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 1
(24) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(25) BOLT 9101130630M 910113-0630 $1.21 1
(26) THROTTLE ROD 3V1636171M 3V1-63617-1 # 023322XD~ $6.30 1
