16. DRIVE SYSTEM & WATER PUMP

Click Here for Microfiche Usage Tip

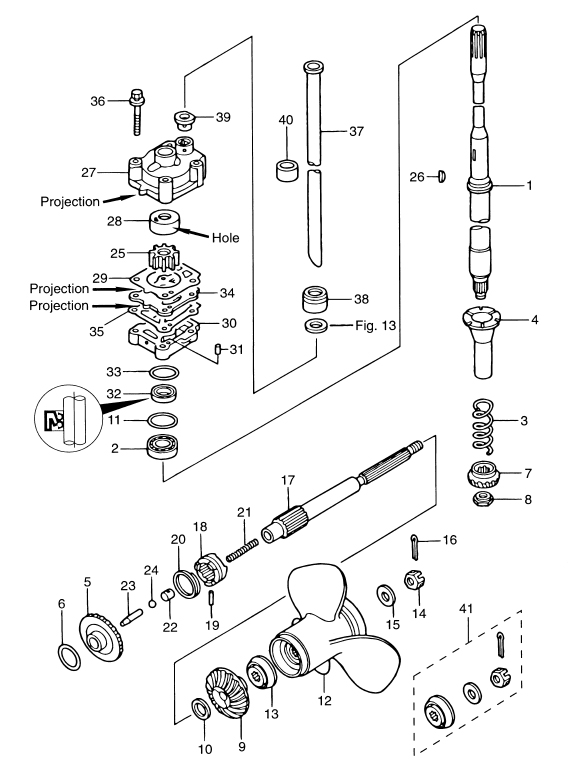

(1) DRIVE SHAFT "S"(1) DRIVE SHAFT "L"(1) DRIVE SHAFT "UL"(2) BEARING, 32004(3) DRIVE SHAFT SPRING(4) DRIVE SHAFT SPRING GUIDE(5) BEVEL GEAR "A"(6) SHIM, 26.5-34.8-0.1(6) SHIM, 26.5-34.8-0.15(7) BEVEL GEAR "B"(8) BEVEL GEAR "B" NUT(9) BEVEL GEAR "C"(10) WASHER,18-24-1.5(11) SHIM, 35-41.9-0.1(11) SHIM, 35-41.9-0.15(11) SHIM, 35-41.9-0.3(11) SHIM, 35-41.9-0.5(12) PROPELLER 8, (3 X 10.2 X 8.3)(12) PROPELLER DS 9, (3 X 9.72 X 9.0)(12) PROPELLER DS 10, (3 X 9.72 X 10)(12) PROPELLER DS 11, (3 X 9.8 X 11.0)(12) PROPELLER DS 12, (3 X 9.8 X 12)(12) PROPELLER DS 13, (3 X 9.6 X 13.0)(12) PROPELLER 14, (3 X 9.9 X 14.2)(13) PROPELLER THRUST HOLDER(14) PROPELLER NUT(15) WASHER, 12.5-32-2.5(16) SPLIT PIN, 3-22(17) PROPELLER SHAFT(18) CLUTCH(19) CLUTCH PIN(20) CLUTCH PIN SNAP(21) CLUTCH SPRING(22) CLUTCH SPRING RETAINER(23) CLUTCH PUSH ROD(24) STEEL BALL, 3/8(25) WATER PUMP IMPELLER(26) WATER PUMP IMPELLER KEY(27) PUMP CASE (UPPER)(28) PUMP CASE LINER(29) PUMP CASE GASKET (UPPER)(30) PUMP CASE (LOWER)(31) DOWEL PIN, 4-10(32) OIL SEAL, 17-30-9(33) O-RING, 3.5-36(34) WATER PUMP GUIDE PLATE(35) PUMP GUIDE PLATE GASKET(36) BOLT(37) WATER PIPE "S"(37) WATER PIPE "L"(37) WATER PIPE "UL"(38) WATER PIPE SEAL (UPPER)(39) WATER PIPE SEAL (LOWER)(40) RUBBER HOSE(41) PROPELLER HARDWARE KIT



Parts List
2005 :: 30 HP :: 4 Stroke Nissan NSF30B :: DRIVE SYSTEM & WATER PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT S 3R0643010M 3R0-64301-0 FOR TRANSOM S $186.07 1
(1) DRIVE SHAFT L 346643025M 346-64302-5 FOR TRANSOM L $301.47 1
(1) DRIVE SHAFT UL 346643035M 346-64303-5 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(2) BEARING 32004 346602130M 346-60213-0 $32.23 1
(3) SPRING DRIVE SHAFT 346643270M 346-64327-0 $4.38 1
(4) PIPE DRIVE SHAFT 346643280M 346-64328-0 $4.19 1
(5) BEVEL GEAR A 346640101M 346-64010-1 $109.58 1
(6) SHIM 26.5-34.8-0.15 369640230M 369-64081-1 $0.00 0 Sold Out View More Details
(6) SHIM 26.5-34.8-0.15 369640230M 369-64081-1 $0.00 0 Sold Out View More Details
(7) BEVEL GEAR B 346640201M 346-64020-1 $78.21 1 Sold Out View More Details
(8) NUT BEVEL GEAR B 346640271M 346-64027-1 $13.35 1
(9) BEVEL GEAR C 3AC640300M 3AC-64030-0 3 LINE $94.22 1
(10) WASHER BEVEL GEAR C 346640320M 346-64032-0 $4.38 1
(11) SHIM 35 – 41.9 – 0.1 346640810M 346-64081-0 $2.18 0
(11) SHIM 35 – 41.9 – 0.1.5 346640820M 346-64082-0 $2.18 0
(11) SHIM 35 – 41.9 – 0.3 346640830M 346-64083-0 $2.18 0
(11) SHIM 35 – 41.9 – 0.5 346640840M 346-64084-0 $2.18 0
(12) PROPELLER 8 (3 X 10.2 X 8.3) 346W641065 346W64106-5 $160.46 1
(12) PROPELLER DS 9 (3 X 9.72 X 9.0) 3R0W645180 3R0W64518-0 $104.63 1
(12) PROPELLER DS 10 (3 X 9.72 X 10) 3R0W645210 3R0W64521-0 STD. TRANSOM UL $104.63 1 Sold Out View More Details
(12) PROPELLER DS 11 (3 X 9.8 X 11.0) 3R0W645230 3R0W64523-0 STD. TRANSOM L $104.63 1
(12) PROPELLER DS 12 (3 X 9.8 X 12) 3R0W645250 3R0W64525-0 $104.63 1
(12) PROPELLER DS 13 (3 X 9.6 X 13.0) 3R0W645270 3R0W64527-0 STD. TRANSOM S $104.63 1
(12) PROPELLER 14 (3 X 9.9 X 14.2) 346W641055 346W64105-5 $0.00 1 Sold Out View More Details
(13) THRUST HOLDER 346642315M 346-64231-5 $29.88 1
(14) NUT PROPELLER 346641215M 346-64121-5 $8.05 1
(15) WASHER 12.5-32-2.5 346641245M 346-64124-5 $4.83 1
(16) SPLIT PIN 3 – 22 9515030322M 951503-0322 $0.83 1
(17) PROPELLER 346642116M 346-64211-6 $241.59 1
(18) CLUTCH 3AC642150M 3AC-64215-0 3 LINE $52.21 1
(19) CLUTCH PIN 346642180M 346-64218-0 $2.37 1
(20) SNAP CLUTCH PIN 346642190M 346-64219-0 $1.61 1 Sold Out View More Details
(21) SPRING CLUTCH 332642210M 332-64221-0 $1.85 1
(22) SPRING HOLDER CLUTCH 350642220M 350-64222-0 $13.25 1
(23) PUSH ROD CLUTCH 3C8642231M 3C8-64223-1 $11.02 1
(24) STEEL BALL 318 9650020803M 965002-0803 $1.13 1
(25) IMPELLER WATER PUMP 345650210M 345-65021-0 $12.06 1
(26) KEY PUMP IMPELLER 332650220M 332-65022-0 $6.47 1
(27) PUMP CASE UPPER (WHITE) 3R0650160M 3R0-65016-0 $24.68 1
(28) LINER PUMP CASE 3R0650110M 3R0-65011-0 $8.08 1
(29) GASKET PUMP CASE 3R0650180M 3R0-65018-0 $2.40 1
(30) PUMP CASE LOWER 346650172M 346-65017-2 $48.31 1
(31) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(32) OIL SEAL 17 - 30 - 9 346650130M 346-65013-0 $8.52 1
(33) O-RING 3.5 - 36 336624150M 336-62415-0 $1.50 1
(34) GUIDE PLATE WATER PUMP 3R0650250M 3R0-65025-0 $6.84 1
(35) GASKET GUIDE PLATE 348650291M 348-65029-1 $2.42 1
(36) BOLT 9101135652M 910113-5652 $2.91 4 Sold Out View More Details
(37) WATER PIPE S 3R0651000M 3R0-65100-0 FOR TRANSOM S $22.94 1
(37) WATER PIPE L 3R0651100M 3R0-65110-0 FOR TRANSOM L $23.74 1
(37) WATER PIPE UL 3R0651200M 3R0-65120-0 FOR TRANSOM UL $23.74 1
(38) SEAL RUBBER UPPER WATER PIPE 3R0652060M 3R0-65206-0 $2.22 1
(39) SEAL RUBBER LOWER WATER PIPE 3B7650140M 3B7-65014-0 $2.31 1
(40) RUBBER PIPE 98AM120015M 98AM12-0015 FOR TRANSOM L $0.00 1 Sold Out View More Details
(41) PROPELLER HARDWARE KIT 3R0873260M 3R0-87326-0 $38.94 1
