5. FUEL PUMP FUEL RAIL & VAPOR SEPARATOR

Click Here for Microfiche Usage Tip

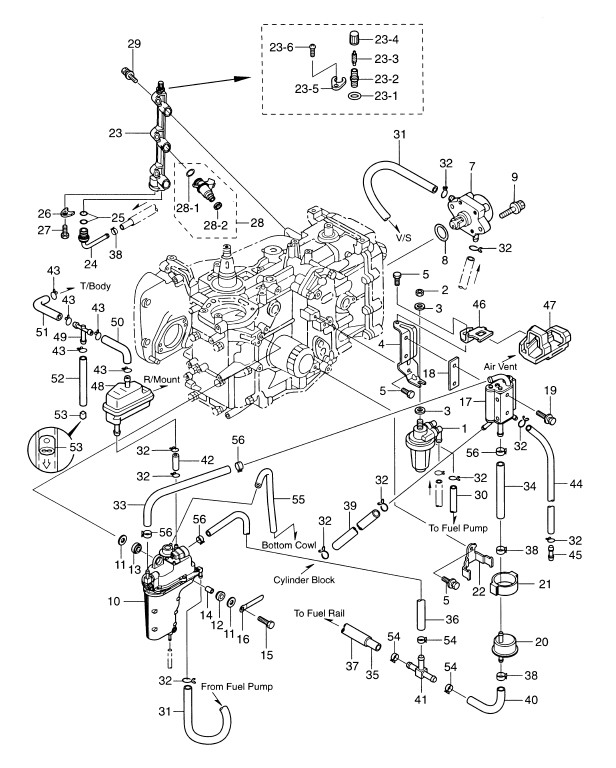

(1) FUEL FILTER(2) NUT(3) WASHER(3) WASHER(4) PLATE(5) BOLT(5) BOLT(5) BOLT(7) FUEL PUMP(8) O-RING, 3.5-25.7(9) BOLT(10) VAPOR SEPARATOR(11) WASHER, 6.5-21-1(11) WASHER, 6.5-21-1(12) RUBBER MOUNT, 8.5-14-2.5(13) RUBBER MOUNT, 8.5-14-2.5(14) SPACER, 6.2-9-15.7(15) BOLT(16) CLAMP, 6.5-87P(17) FUEL COOLER(18) FUEL COOLER GASKET(19) BOLT(20) HIGH PRESSURE FUEL FILTER(21) FUEL FILTER RUBBER MOUNT(22) FUEL FILTER BAND(23) FUEL RAIL(23-1) O-RING, 1.9-4.8(23-2) JOINT(23-3) VALVE ASSY(23-4) CAP(23-5) PLATE(23-6) SCREW(24) NIPPLE(25) O-RING, 1.9-9.8(26) HOLDING PLATE(27) BOLT(28) FUEL INJECTOR(28-1) O-RING, 3.6-6.5(28-2) O-RING(29) BOLT(30) RUBBER HOSE(31) RUBBER HOSE(31) RUBBER HOSE(32) CLIP o 10(32) CLIP o 10(32) CLIP o 10(32) CLIP o 10(32) CLIP o 10(32) CLIP o 10(32) CLIP o 10(32) CLIP o 10(32) CLIP o 10(32) CLIP o 10(33) FUEL HOSE(34) FUEL HOSE(35) FUEL HOSE(36) FUEL HOSE(37) HOSE PROTECTOR(38) CLIP, o 13.5(38) CLIP, o 13.5(38) CLIP, o 13.5(39) RUBBER HOSE(40) FUEL HOSE(41) T-NIPPLE(42) RUBBER HOSE(43) CLIP o 7(43) CLIP o 7(43) CLIP o 7(43) CLIP o 7(43) CLIP o 7(44) RUBBER HOSE(45) WATER NIPPLE(46) AIR VENT STAY(47) RUBBER MOUNT (AIR VENT)(48) AIR VENT ASSY(49) T-NIPPLE(50) RUBBER HOSE(51) RUBBER HOSE(52) RUBBER HOSE(53) LINE CHECK VALVE(53) LINE CHECK VALVE(54) CLAMP, 21/32(54) CLAMP, 21/32(55) RUBBER HOSE(56) CLAMP, 16.8(56) CLAMP, 16.8(56) CLAMP, 16.8(56) CLAMP, 16.8



Parts List
2005 :: 30 HP :: 4 Stroke Nissan NSF30B :: FUEL PUMP FUEL RAIL & VAPOR SEPARATOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL FILTER 3AC022300M 3AC-02230-0 SEE DETAIL $27.66 1
(2) NUT 9301130800M 930113-0800 $1.99 1 Sold Out View More Details
(3) WASHER 9401130800M 940113-0800 $0.84 2
(4) PLATE 3AC022390M 3AC-02239-0 $0.00 1 Sold Out View More Details
(5) BOLT 9101135616M 910113-5616 $1.15 3
(7) FUEL PUMP 3H8040001M 3H8-04000-1 $67.56 1
(8) O-RING 3.5 - 25.7 345624150M 345-62415-0 $1.10 1 Sold Out View More Details
(9) BOLT 9101135625M 910113-5625 $1.47 2
(10) VAPOR SEPARATOR ASSY 3AC101500M 3AC-10150-0 SEE DETAIL $826.34 1 Sold Out View More Details
(11) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(12) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(13) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(14) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 3
(15) BOLT 9101130630M 910113-0630 $1.21 3
(16) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 $1.53 1
(17) FUEL COOLER ASSY 3AC101750M 3AC-10175-0 SEE DETAIL $373.75 1
(18) GASKET 3AC100190M 3AC-10019-0 $1.67 1
(19) BOLT 9101135635M 910113-5635 $1.96 2 Sold Out View More Details
(20) HIGH PRESSURE FUEL FILTER 3ACB101430 3ACB10143-0 $64.77 1
(21) FUEL FILTER RUBBER MOUNT 3AC101450M 3AC-10145-0 $5.11 1
(22) FUEL FILTER BAND 3AC101440M 3AC-10144-0 $7.32 1
(23) FUEL RAIL 3AC102010M 3AC-10201-0 $484.87 1
(23-1) O-RING 1.9-4.8 3AC101620M 3AC-10162-0 $3.14 1
(23-2) JOINT 3AC773670M 3AC-77367-0 $12.80 1
(23-3) VALVE ASSY (PRESSURE CHECK) 3AC100980M 3AC-10098-0 $7.91 1
(23-4) CAP 3AC100990M 3AC-10099-0 $5.11 1
(23-5) HOLDING PLATE 3AC101690M 3AC-10169-0 $0.00 1 Sold Out View More Details
(23-6) SCREW 9215030410M 921503-0410 $0.46 1
(24) NIPPLE 3AC101610M 3AC-10161-0 $0.00 1 Sold Out View More Details
(25) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.56 2
(26) NIPPLE HOLDING PLATE 3T5101690M 3T5-10169-0 $1.22 1
(27) BOLT 9101135616M 910113-5616 $1.15 1
(28) FUEL INJECTOR 3AC103000M 3AC-10300-0 $141.09 3
(28-1) O-RING 3.6-6.5 3AC103040M 3AC-10304-0 $8.05 3
(28-2) O-RING 3AC103030M 3AC-10303-0 $8.05 3
(29) BOLT 9101135625M 910113-5625 $1.47 3
(30) RUBBER HOSE 98AB51000M 98AB51000M F/FILTER - F/PUMP $11.41 1
(31) RUBBER HOSE 98AB51000M 98AB51000M F/PUMP - VAPOR SEPARATOR $11.41 1
(32) CLIP ø10 338022150M 338-02215-0 $1.41 10
(33) FUEL HOSE 3AD022040M 3AD-02204-0 VAPOR SEPARATOR - F/COOLER $19.92 1
(34) FUEL HOSE 3AC022040M 3AC-02204-0 F/COOLER - H/P/F/FILTER $12.63 1
(35) FUEL HOSE 3AC022120M 3AC-02212-0 T NIPPLE - FUEL RAIL $26.82 1 Sold Out View More Details
(36) FUEL HOSE 3AD022110M 3AD-02211-0 VAPOR SEPARATOR - T NIPPLE $33.19 1
(37) PROTECTOR ø18-240 3AD061570M 3AD-06157-0 L=240 $0.00 1 Sold Out View More Details
(38) CLIP ø 13.5 3AC090560M 3AC-09056-0 $2.10 3 Sold Out View More Details
(39) HOSE 98AR50600M 98AR-5-0600 CYLINDER - F/COOLER $5.12 1
(40) FUEL HOSE 3AC022110M 3AC-02211-0 H/P/F/FILTER - T NIPPLE $8.60 1
(41) PIPE JOINT 3AC700130M 3AC-70013-0 $2.62 1
(42) RUBBER HOSE 98AB51000M 98AB51000M AIR VENT - VAPOR SEPARATOR $11.41 1
(43) CLIP ø 7 338011330M 338-01133-0 $1.04 5
(44) HOSE 98AR50600M 98AR-5-0600 FUEL COOLER - WATER NIPPLE $5.12 1
(45) WATER NIPPLE 353011380M 353-01138-0 BOTTOM COWL $2.21 1
(46) STAY 3AC761740M 3AC-76174-0 $3.27 1
(47) RUBBER MOUNT 3AC063020M 3AC-06302-0 $0.00 1 Sold Out View More Details
(48) AIR VENT ASSY 3AC103200M 3AC-10320-0 $14.73 1
(49) T-NIPPLE 3AC011760M 3AC-01176-0 $0.00 1 Sold Out View More Details
(50) LUBRICATION PIPE D 98AL41000M 98AL41000M T NIPPLE - AIR VENT $8.81 1
(51) LUBRICATION PIPE D 98AL41000M 98AL41000M T/BODY - T NIPPLE $8.81 1
(52) LUBRICATION PIPE D 98AL41000M 98AL41000M T NIPPLE - FOR OUTLET $8.81 1
(53) LINE CHECK VALVE 393011600M 393-01160-0 $4.31 1
(54) CLAMP 21/32 3T5100860M 3T5-10086-0 $5.58 3
(55) RUBBER HOSE 98AB31000M 98AB31000M V/SEPARATOR - BOTTOM COWL $10.72 1
(56) CLAMP ø16.8 3AC100870M 3AC-10087-0 $3.14 4
