3. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

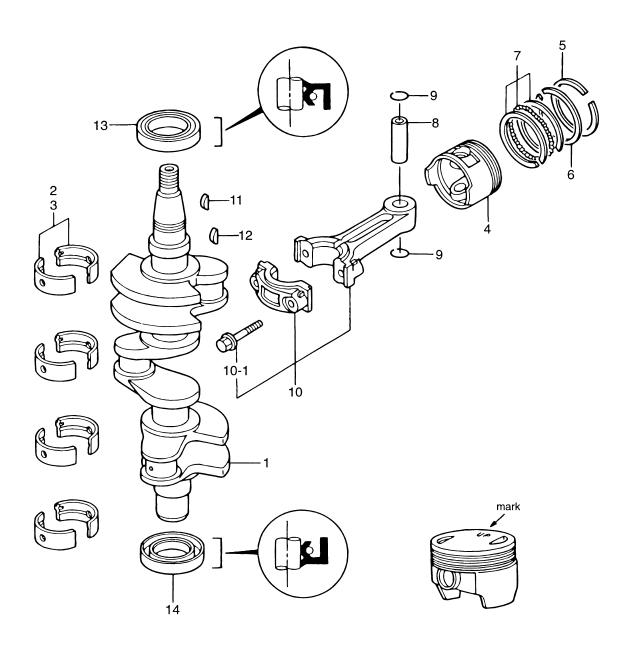

(1) CRANKSHAFT ASSY(2) BEARING (RED)(3) BEARING (BLUE)(4) PISTON(5) PISTON RING TOP(6) PISTON RING 2ND(7) PISTON RING OIL(8) PISTON PIN(9) PISTON PIN CLIP(9) PISTON PIN CLIP(10) CONNECTING ROD(10-1) CONNECTING ROD BOLT(11) MAGNETO KEY(12) DRIVE PULLEY KEY(13) OIL SEAL, 38-50-8(14) OIL SEAL, 35-50-8



Parts List
2005 :: 30 HP :: 4 Stroke Nissan NSF30B :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT 3R0000301M 3R0-00030-1 $700.77 1
(2) BEARING (RED) 3AE074070M 3AE-07407-0 $6.13 8
(3) BEARING (BLUE) 3AE074080M 3AE-07408-0 $6.13 8
(4) PISTON (STD) 3AC000010M 3AC-00001-0 $43.25 3
(5) PISTON RING TOP 3AC000110M 3AC-00011-0 $10.07 3
(6) PISTON RING 2ND 3AC000120M 3AC-00012-0 $8.47 3
(7) PISTON RING OIL 3AC000130M 3AC-00013-0 $5.87 3
(8) PISTON PIN 3H6000210M 3H6-00021-0 $4.86 3
(9) PISTON PIN CLIP 3H6000240M 3H6-00024-0 $0.92 6
(10) CONNECTING ROD ASSY 3R0000400M 3R0-00040-0 $51.06 3
(10-1) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 6
(11) KEY MAGNETO 334001310M 334-00131-0 $3.39 1
(12) KEY 3T5101310M 3T5-10131-0 TIMING PULLEY $1.56 1
(13) OIL SEAL 38 - 50 - 8 3R0001220M 3R0-00122-0 UPPER $13.25 1
(14) OIL SEAL 35 - 50 - 8 3R0001210M 3R0-00121-0 LOWER $14.32 1
