1. CYLINDER HEAD

Click Here for Microfiche Usage Tip

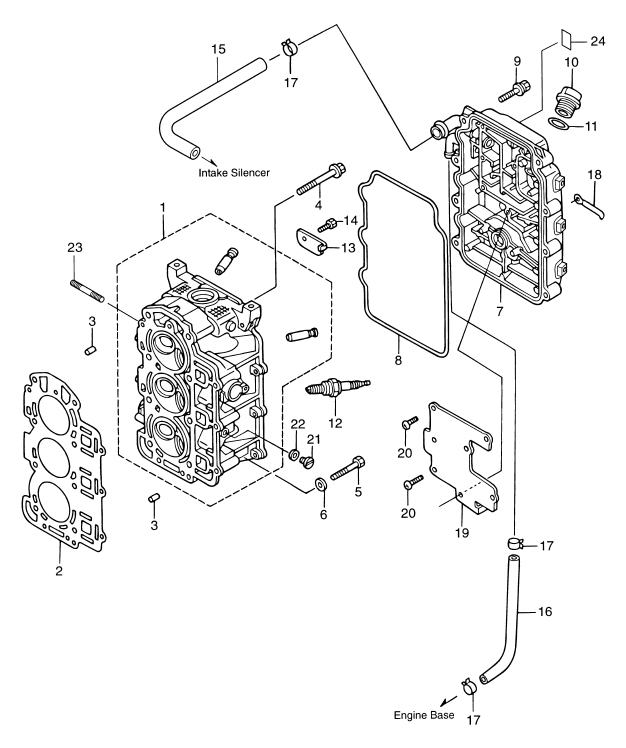

(1) CYLINDER HEAD(2) CYLINDER HEAD GASKET(3) DOWEL PIN, 6-12(3) DOWEL PIN, 6-12(4) CYLINDER HEAD BOLT(5) BOLT, 6-53(6) WASHER(7) CYLINDER HEAD COVER(8) CYLINDER HEAD COVER GASKET(9) BOLT(10) ENGINE OIL FILLER CAP(11) O-RING, 3.1-24.4(12) SPARK PLUG(13) CYLINDER HEAD PLATE(14) BOLT(15) BREATHER HOSE(16) RUBBER HOSE(17) CLIP, o 15.5(17) CLIP, o 15.5(17) CLIP, o 15.5(18) CLAMP, 6.5-87P(19) BREATHER, CHAMBER COVER(20) SCREW(20) SCREW(21) PLUG, M8(22) GASKET, 8.1-15-1(23) STUD BOLT(24) ENGINE OIL DECAL



Parts List
2005 :: 30 HP :: 4 Stroke Nissan NSF30B :: CYLINDER HEAD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER HEAD 3ACB010010 3ACB01001-0 $489.22 1
(2) CYLINDER HEAD GASKET 3AC010050M 3AC-01005-0 $39.71 1
(3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(4) BOLT CYLINDER HEAD 8 - 60 3H8010130M 3H8-01013-0 8-60 $2.13 8
(5) BOLT 9161140653M 916114-0653 $2.82 3
(6) WASHER 9401130600M 940113-0600 $0.83 3
(7) CYLINDER HEAD COVER ASSY 3ACB010200 3ACB01020-0 $100.08 1
(8) GASKET HEAD COVER 3R0010240M 3R0-01024-0 $9.09 1
(9) BOLT 9101145630M 910114-5630 $1.21 8
(10) ENGINE OIL FILLER CAP 3R0710150M 3R0-71015-0 $3.31 1
(11) O-RING 3.1-24.4 3R0074220M 3R0-07422-0 $1.30 1
(12) SPARK PLUG 970111103M 9701-1-1103 NGK DCPR6E $6.50 3
(13) PLATE CYLINDER HEAD 3R0010940M 3R0-01094-0 $1.71 1 Sold Out View More Details
(14) BOLT 9101130612M 910113-0612 $0.84 1
(15) BREATHER HOSE 3AC074350M 3AC-07435-0 C/HEAD COVER-1/SILENCER $17.65 1
(16) RUBBER PIPE 98AM120290M 98AM12-0290 $0.00 1 Sold Out View More Details
(17) CLIP 3R0074370M 3R0-07437-0 $2.28 3
(18) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 $1.53 2
(19) PLATE BREATHER 3R0074310M 3R0-07431-0 $0.00 1 Sold Out View More Details
(20) SCREW 9215035508M 921503-5508 $0.47 7
(21) WATER PLUG 332600052M 332-60005-2 WATER PLUG $5.07 1
(22) GASKET 8.1-15-1 332600060M 332-60006-0 WATER PLUG $0.86 1
(23) STUD BOLT 9153840635M 915384-0635 C/HEAD-INTAKE MANIFOLD $2.35 3
(24) ENGINE OIL DECAL 3AC720410M 3AC-72041-0 $1.78 1 Sold Out View More Details
