11. RECOIL STARTER

Click Here for Microfiche Usage Tip

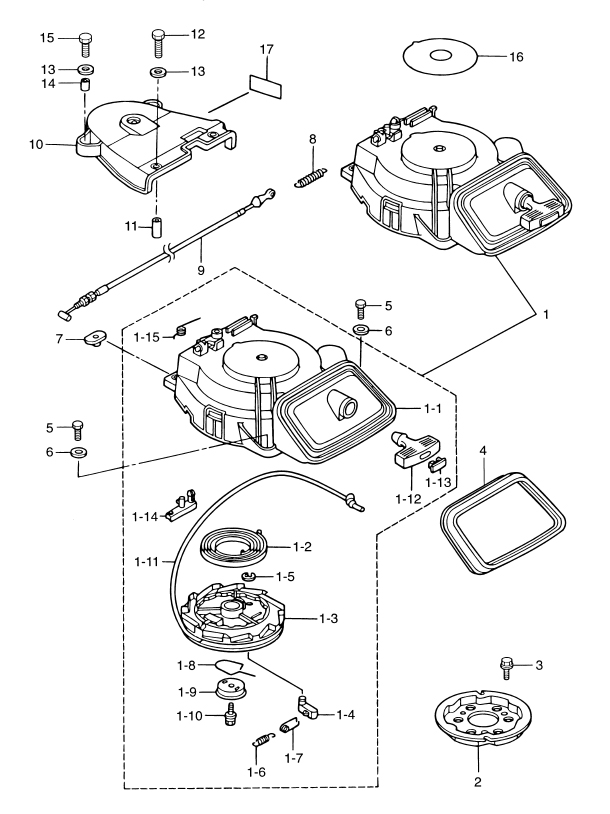

(1) RECOIL START(1-1) STARTER CASE(1-2) STARTER SPRING(1-3) REEL(1-4) RATCHET(1-5) E-RING, D=10(1-6) RETURN SPRING(1-7) RACHET GUIDE(1-8) FRICTION SPRING(1-9) FRICTION PLATE(1-10) STARTER SHAFT BOLT(1-11) STARTER ROPE(1-12) STARTER HANDLE(1-13) STARTER HANDLE CAP(1-14) STARTER LOCK(1-15) STARTER LOCK SPRING(2) STARTER PULLEY(3) BOLT(4) STARTER SEAL(5) BOLT(5) BOLT(6) WASHER, 6.5-16-1.5(6) WASHER, 6.5-16-1.5(7) NUT(8) STARTER LOCK CAM SPRING(9) STARTER LOCK CABLE(10) BELT COVER(11) COLLAR, 6.2-9-12.3(12) BOLT(13) WASHER, 6.5-16-1.5(13) WASHER, 6.5-16-1.5(14) COLLAR, 6.2-9-7.4(15) BOLT(16) CAUTION DECAL "B"(17) SPARK PLUG DECAL (WITH RESISTANCE)



Parts List
2005 :: 25 HP :: 4 Stroke Tohatsu MFS25B :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER ASSY 3AC050900M 3AC-05090-0 $293.08 1
(1-1) STARTER CASE 3AC051050M 3AC-05105-0 $88.33 1
(1-2) STARTER SPRING 3H8050040M 3H8-05004-0 $18.50 1
(1-3) REEL 3R3051060M 3R3-05106-0 $25.26 1
(1-4) RATCHET 3R3050030M 3R3-05003-0 $4.33 1
(1-5) E-RING D=10 3R3050110M 3R3-05011-0 $1.27 1
(1-6) RETURN SPRING 3R3050120M 3R3-05012-0 $4.31 1
(1-7) RATCHET GUIDE 3H8051231M 3H8-05123-1 $4.08 1 Sold Out View More Details
(1-8) FRICTION SPRING 3R3050070M 3R3-05007-0 $6.72 1
(1-9) FRICTION PLATE 3R3050060M 3R3-05006-0 $4.81 1
(1-10) BOLT STARTER SHAFT 3R3051380M 3R3-05138-0 $1.38 1
(1-11) STARTER ROPE 3R3050130M 3R3-05013-0 ø 5-1800 $9.25 1
(1-12) STARTER HANDLE 3AC050190M 3AC-05019-0 $9.09 1
(1-13) CAP STARTER HANDLE 3R3051310M 3R3-05131-0 $3.04 1
(1-14) STARTER LOCK 3R3052520M 3R3-05252-0 $4.03 1
(1-15) SPRING 3R3052160M 3R3-05216-0 $2.72 1
(2) STARTER PULLEY 3R0059011M 3R0-05901-1 $0.00 1 Sold Out View More Details
(3) BOLT 9101135616M 910113-5616 $1.15 3
(4) SEAL RUBBER STARTER 3R0675030M 3R0-67503-0 $14.08 1
(5) BOLT 9101130620M 910113-0620 $1.04 3
(6) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 3 Sold Out View More Details
(7) NUT 3F3760421M 3F3-76042-1 $1.66 2 Sold Out View More Details
(8) STARTER LOCK CAM SPRING 3AC052580M 3AC-05258-0 $5.44 1
(9) STARTER LOCK WIRE 3AC052070M 3AC-05207-0 $28.78 1
(10) BELT COVER 3R3063080M 3R3-06308-0 $8.66 1
(11) COLLAR 6.2 - 9 -12.3 3R0063030M 3R0-06303-1 $2.40 2
(12) BOLT 9101130625M 910113-0625 $0.95 2
(13) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(14) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 2 Sold Out View More Details
(15) BOLT 9101130620M 910113-0620 $1.04 2
(16) CAUTION DECAL B 3R0721810M 3R0-72181-0 $3.85 1
(17) RESISTANCE SPARK PLUG DECAL 3H6720260M 3H6-72026-0 $3.04 1
