9. ELECTRIC PARTS

Click Here for Microfiche Usage Tip

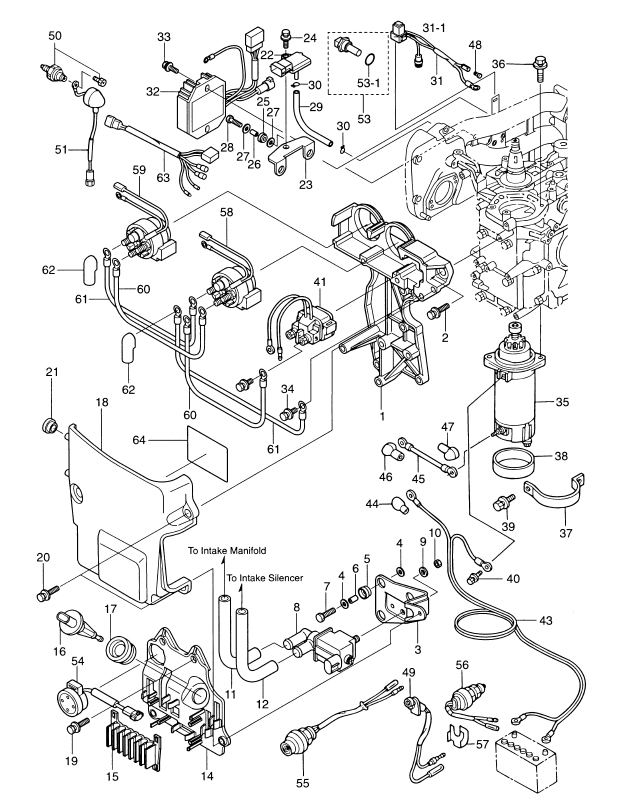

(1) ELECTRIC BRACKET(2) BOLT(3) PLATE(4) WASHER, 6-16-1.5(4) WASHER, 6-16-1.5(5) RUBBER MOUNT(6) COLLAR, 6.2-9-7.4(7) BOLT(8) ISC VALVE(9) WASHER(10) NUT(11) FUEL HOSE(12) FUEL HOSE(14) CORD HOLDER(15) HOLDER(16) MAT SENSOR(17) MAT SENSOR GROMMET(18) ELECTRIC BRACKET COVER(19) BOLT(20) BOLT(21) GROMMET, 17-2.7(22) MAP SENSOR(23) MAP SENSOR PLATE(24) BOLT(25) RUBBER MOUNT(26) COLLAR, 6.2-9-7.4(27) WASHER, 6-16-1.5(27) WASHER, 6-16-1.5(28) BOLT(29) HOSE(30) CLIP, o 7(30) CLIP, o 7(31) FUSE CABLE(31-1) FUSE (20A)(32) RECTIFIER(33) BOLT(34) BOLT(35) STARTER MOTOR(36) BOLT(37) STARTER MOTOR BAND(38) STARTER MOTOR DAMPER(39) BOLT(40) BOLT(41) STARTER SOLENOID(43) BATTERY CABLE(44) TERMINAL CAP(45) STARTER CABLE(46) TERMINAL CAP(47) TERMINAL CAP(48) CABLE TERMINAL PLUG(49) WARNING LAMP(50) OIL PRESSURE SWITCH(51) PRESSURE SWITCH LEAD CABLE(53) WATER TEMPERATURE SENSOR(53-1) O-RING, 2-10(54) OVER-HEAT BUZZER(55) MAIN SWITCH(56) NEUTRAL SWITCH(57) NEUTRAL SWITCH ACTUATOR(58) PTT SOLENOID SWITCH "A"(59) PTT SOLENOID SWITCH "B"(60) SOLENOID SWITCH CORD "B"(60) SOLENOID SWITCH CORD "B"(61) SOLENOID SWITCH CORD "B"(61) SOLENOID SWITCH CORD "B"(62) TERMINAL CAP(62) TERMINAL CAP(63) PTT EXTENSION CORD(64) WIRING DIAGRAM DECAL



Parts List
2005 :: 25 HP :: 4 Stroke Tohatsu MFS25B :: ELECTRIC PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BRACKET 3AC069010M 3AC-06901-0 $0.00 1 Sold Out View More Details
(2) BOLT 9101035625M 910103-5625 $1.47 5
(3) PLATE 3AC025010M 3AC-02501-0 $14.73 1 Sold Out View More Details
(4) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 6 Sold Out View More Details
(5) RUBBER MOUNT 3AC069200M 3AC-06920-0 $1.04 3
(6) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 3 Sold Out View More Details
(7) BOLT 9101030620M 910103-0620 $1.04 3
(8) ISC VALVE 3AC102110M 3AC-10211-0 $105.98 1
(9) WASHER 9401030600M 940103-0600 $0.70 1
(10) NUT 9301030600M 930113-0600 $0.84 1
(11) FUEL HOSE 3AC022030M 3AC-02203-0 ISC VALVE — INTAKE MANIFOLD $0.00 1 Sold Out View More Details
(12) FUEL HOSE 3AD022030M 3AD-02203-0 INTAKE SILENCER — ISC VALVE $0.00 1 Sold Out View More Details
(14) CORD HOLDER 3AC620040M 3AC-62004-0 $0.00 1 Sold Out View More Details
(15) HOLDER 3AC061350M 3AC-06135-0 $5.29 1 Sold Out View More Details
(16) MAT SENSOR 3AC102150M 3AC-10215-0 $23.56 1
(17) MAT SENSOR GROMMET 3AC043190M 3AC-04319-0 $3.71 1
(18) COVER ASSY 3AC069190M 3AC-06919-0 $30.92 1
(19) BOLT 9101035625M 910103-5625 $1.47 3
(20) BOLT 9101135620M 910113-5620 $1.30 2
(21) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(22) MAP SENSOR 3AC102140M 3AC-10214-0 $117.76 1
(23) PLATE 3AC072330M 3AC-07233-0 $5.87 1 Sold Out View More Details
(24) BOLT 9101135616M 910113-5616 $1.15 1
(25) RUBBER MOUNT 3AC069200M 3AC-06920-0 $1.04 2
(26) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 2 Sold Out View More Details
(27) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(28) BOLT 9101130620M 910113-0620 $1.04 2
(29) LUBRICATION PIPE D 98AL41000M 98AL41000M MAP SENSOR — I/MANIFOLD $8.81 1
(30) CLIP ø 7 338011330M 338-01133-0 $1.04 2
(31) FUSE WIRE ASSY 3AC760660M 3AC-76066-0 FOR EP & EF $53.60 1
(31-1) FUSE (20A) 3T5762470M 3T5-76247-0 FOR EP & EF $2.99 2
(32) RECTIFIER 3AC760650M 3AC-76065-0 FOR EP & EF $127.36 1
(33) BOLT 9101035625M 910103-5625 FOR EP & EF $1.47 2
(34) BOLT 9101035612M 910103-5612 FOR EP & EF $1.07 1
(35) STARTER MOTOR 3C8760101M 3C8-76010-1 FOR EP & EF $491.52 1 Sold Out View More Details
(36) BOLT 9101035830M 9101E3-5830 FOR EP & EF $1.89 2
(37) BAND STARTER MOTOR 3R0760090M 3R0-76009-0 FOR EP & EF $5.32 1
(38) RUBBER STARTER MOTOR 3C8760070M 3C8-76007-0 FOR EP & EF $3.39 1 Sold Out View More Details
(39) BOLT 9101135820M 910113-5820 FOR EP & EF $1.89 2
(40) BOLT 9101035612M 910103-5612 FOR EP & EF $1.07 1
(41) STARTER SOLENOID 3H8760400M 3H8-76040-0 WITH BOLT (910103-5610 X 2) FOR EP & EF $67.57 1
(43) BATTERY CABLE (L=2500) 3V1761201M 3V1-76120-1 L=2500 FOR EP & EF $61.59 1
(44) TERMINAL CAP 3AA761450M 3AA-76145-0 FOR EP & EF $2.25 1
(45) STARTER CORD (L=270) 3R3761410M 3R3-76141-0 L=270 FOR EP & EF $24.89 1
(46) TERMINAL CAP 3Y1761450M 3Y1-76145-0 STARTER SOLENOID (RED) FOR EP & EF $2.25 1
(47) TERMINAL CAP 3Y0761450M 3Y0-76145-0 STARTER MOTOR (RED) FOR EP & EF $2.25 1
(48) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EP & EF $1.50 1
(49) WARNING LAMP 3R3710400M 3R3-71040-0 $21.44 1
(50) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(51) OIL PRESSURE SWITCH LEAD WIRE L=160 3AC076130M 3AC-07613-0 L=170 WITH GROMMET $12.52 1
(53) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 $26.18 1
(53-1) O-RING 2-10 3G9661360M 3G9-66136-0 $1.59 1
(54) OVERHEAT BUZZER 3AC761710M 3AC-76171-0 FOR MF & EF $36.78 1
(55) MAIN SWITCH 3AA760260M 3AA-76026-0 OR 3B2-76026-1 FOR EF $13.94 1
(56) NEUTRAL SWITCH 361760800M 361-76080-0 FOR EF $20.43 1
(57) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF $4.02 1
(58) PTT SOLENOID SWITCH A 3AC725800M 3AC-72580-0 UP FOR PTT TYPE $72.11 1
(59) PTT SOLENOID SWITCH B 3AC725810M 3AC-72581-0 DOWN FOR PTT TYPE $72.11 1
(60) CORD B SOLENOID SWITCH 3C7725830M 3C7-72583-0 L=150 RED (+) FOR PTT TYPE $5.07 2
(61) CORD B SOLENOID SWITCH 3C8725831M 3C8-72583-1 L=130 BLACK (-) FOR PTT TYPE $4.83 2
(62) TERMINAL CAP 3Y1761450M 3Y1-76145-0 FOR PTT TYPE $2.25 2
(63) EXTENSION CORD (PTT) 3AC725690M 3AC-72569-0 FOR PTT TYPE $82.44 1
(64) WIRING DIAGRAM DECAL 3AC720280M 3AC-72028-0 $2.91 1
