4. INTAKE MANIFOLD & THROTTLE BODY

Click Here for Microfiche Usage Tip

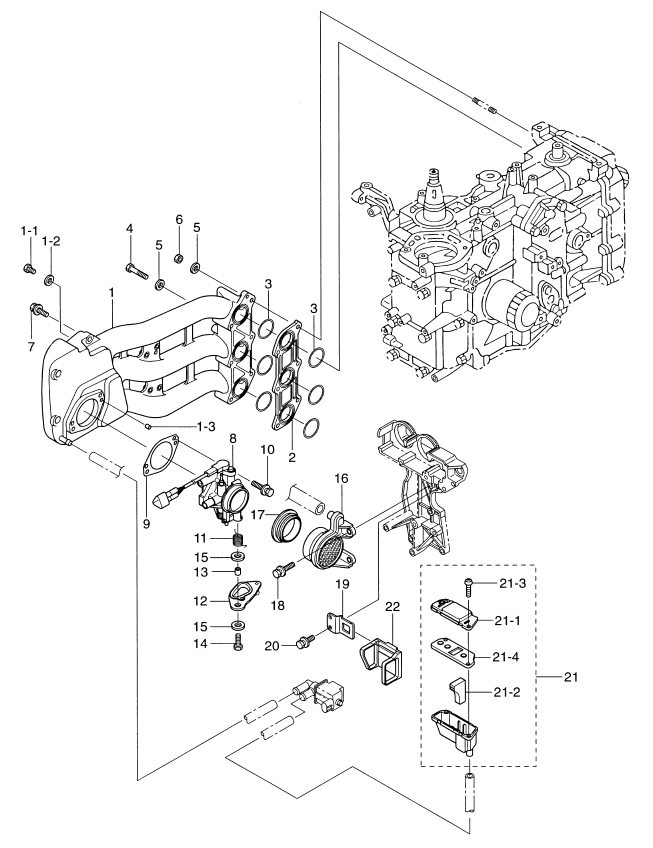

(1) INTAKE MANIFOLD(1-1) BOLT, 5-10(1-2) WASHER, 5.3-12-1(1-3) DOWEL PIN, 6-12(2) INSULATOR(3) O-RING, 1.9-31.2(3) O-RING, 1.9-31.2(4) BOLT(5) WASHER(5) WASHER(6) NUT(7) BOLT(8) THROTTLE BODY ASSY(9) THROTTLE BODY GASKET(10) BOLT(11) SPRING(12) THROTTLE CAM(13) COLLAR, 6.2-9-9.3(14) BOLT(15) WASHER, 6.2-21-1(15) WASHER, 6.2-21-1(16) INTAKE SILENCER ASSY(17) GASKET(18) BOLT(19) STAY(20) BOLT(21) INTAKE SILENCER ASSY(21-1) INTAKE SILENCER COVER(21-2) AIR FILTER(21-3) TAPPING SCREW, 5-16(21-4) INTAKE SILENCER GASKET(22) GROMMET



Parts List
2005 :: 25 HP :: 4 Stroke Tohatsu MFS25B :: INTAKE MANIFOLD & THROTTLE BODY
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD 3AC020100M 3AC-02010-0 $250.27 1 Sold Out View More Details
(1-1) BOLT 5 -10 3R0020950M 3R0-02095-0 $0.00 1 Sold Out View More Details
(1-2) WASHER 5.3 -12 -1 3R0021120M 3R0-02112-0 $2.91 1
(1-3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(2) INSULATOR 3AC039520M 3AC-03952-0 $6.77 1
(3) O-RING 1.9-31.2 3AC020120M 3AC-02012-0 $1.01 6
(4) BOLT 9161140635M 916114-0635 $0.00 3 Sold Out View More Details
(5) WASHER 9401130600M 940113-0600 $0.83 6
(6) NUT 9301130600M 930113-0600 $0.84 3
(7) BOLT 9101035625M 910103-5625 $1.47 3
(8) THROTTLE BODY ASSY 3AD101000M 3AD-10100-0 25HP WITH TPS $294.45 1
(9) GASKET 3AC101040M 3AC-10104-0 $2.31 1
(10) BOLT 9101135625M 910113-5625 $1.47 2
(11) SPRING 3AC637270M 3AC-63727-0 $2.21 1
(12) THROTTLE CAM 3AD637180M 3AD-63718-0 25HP (WHITE) $8.20 1
(13) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 1
(14) BOLT 9101130625M 910113-0625 $0.95 1
(15) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 2
(16) INTAKE SILENCER ASSY 3AD024090M 3AD-02409-0 FOR THROTTLE BODY $0.00 1 Sold Out View More Details
(17) GASKET 3AC024180M 3AC-02418-0 $6.56 1
(18) BOLT 9101135620M 910113-5620 $1.30 2
(19) STAY 3AC637370M 3AC-63737-0 $2.62 1 Sold Out View More Details
(20) BOLT 9101135612M 910113-5612 $1.07 2
(21) INTAKE SILENCER ASSY 3AC024090M 3AC-02409-0 FOR ISC $22.69 1
(21-1) INTAKE SILENCER COVER 3AC024160M 3AC-02416-0 $9.98 1 Sold Out View More Details
(21-2) AIR FILTER 3AC101300M 3AC-10130-0 $2.62 1
(21-3) TAPPING SCREW 5-16 3AC059130M 3AC-05913-0 $0.75 2 Sold Out View More Details
(21-4) TAPPING SCREW 5-16 3AC059130M 3AC-05913-0 $0.75 2 Sold Out View More Details
(22) TAPPING SCREW 5-16 3AC059130M 3AC-05913-0 $0.75 2 Sold Out View More Details
