2. CYLINDER

Click Here for Microfiche Usage Tip

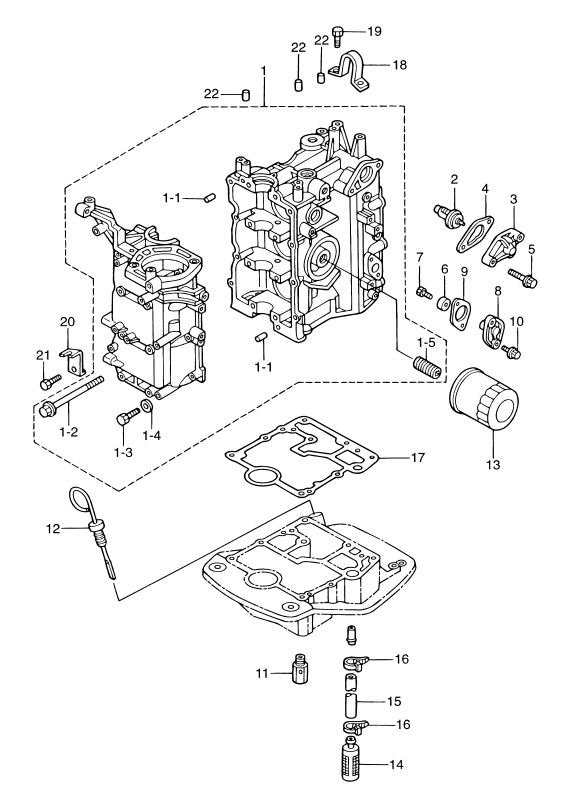

(1) CYLINDER-CRANK CASE(1-1) DOWEL PIN, 6-12(1-1) DOWEL PIN, 6-12(1-2) BOLT, 8-90(1-3) BOLT(1-4) WASHER(1-5) OIL FILTER BOLT(2) THERMOSTAT(3) THERMOSTAT CAP(4) THERMOSTAT CAP GASKET(5) BOLT(6) ANODE(7) BOLT(8) ANODE CAP(9) ANODE CAP GASKET(10) BOLT(11) PLUNGER(12) OIL LEVEL GAUGE(13) OIL FILTER(14) OIL STRAINER(15) HOSE(16) LEAD WIRE BAND, 150(16) LEAD WIRE BAND, 150(17) ENGINE BASEMENT GASKET(18) HANGER(19) BOLT(20) STARTER LOCK CABLE BRACKET(21) BOLT(22) DOWEL PIN, 6-12(22) DOWEL PIN, 6-12(22) DOWEL PIN, 6-12



Parts List
2005 :: 25 HP :: 4 Stroke Tohatsu MFS25B :: CYLINDER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYL BLOCK & CRANKCASE ASSY 3ACB011000 3ACB01100-0 $877.20 1 Sold Out View More Details
(1-1) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(1-2) BOLT 8 – 90 3R0011130M 3R0-01113-0 $2.86 8
(1-3) BOLT 9161190640M 916119-0640 $1.59 8
(1-4) WASHER 9401130600M 940113-0600 $0.83 8
(1-5) BOLT OIL FILTER 3H8076360M 3H8-07636-0 $6.49 1
(2) THERMOSTAT 3R3010300M 3R3-01030-0 $39.63 1
(3) THERMOSTAT CAP 3H6B010310M 3H6B01031-0 $10.65 1 Sold Out View More Details
(4) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(5) BOLT 9101135630M 910113-5630 $1.15 2 Sold Out View More Details
(6) ANODE 369602181M 369-60218-1 $7.42 1
(7) BOLT 9101030616M 910113-0616 $0.98 1
(8) ANODE CAP 3H8B011430 3H8B01143-0 $17.31 1
(9) ANODE CAP GASKET 3R3011440M 3R3-01144-0 $2.01 1
(10) BOLT 9101135620M 910113-5620 $1.30 2
(11) PLUNGER 3V2076200M 3V1-07620-0 OR 3R3-07620-0 $26.96 1
(12) PLUNGER 3V2076200M 3V1-07620-0 OR 3R3-07620-0 $26.96 1
(13) OIL FILTER ASSY 3R0076150M 3R0-07615-0 $11.78 1
(14) OIL STRAINER ASSY 3R3074100M 3R3-07410-0 $7.36 1
(15) RUBBER HOSE 98AH100220M 98AH10-0220 $65.61 1
(16) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
(17) GASKET ENGINE BASE 3R0013030M 3R0-01303-0 $31.56 1
(18) HANGER 3C7B015131 3C7B015131 $0.00 1 Sold Out View More Details
(19) BOLT 9101145820M 910114-5820 $1.43 2 Sold Out View More Details
(20) STARTER LOCK CABLE BRACKET 3AC690000M 3AC-69000-0 $2.05 1 Sold Out View More Details
(21) BOLT 9101130612M 910113-0612 $0.84 1
(22) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 3
