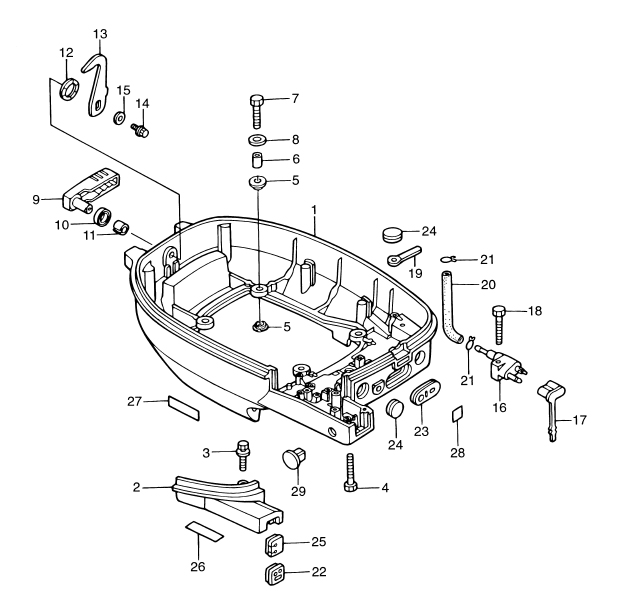

22. BOTTOM COWL

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) CABLE COVER(3) BOLT(4) BOLT(5) RUBBER MOUNT, 8.5-14-2.5(5) RUBBER MOUNT, 8.5-14-2.5(6) SPACER, 6.2-9-15.7(7) BOLT(8) WASHER, 6.5-21-1(9) HOOK LEVER(10) HOOK LEVER SEAL RING(11) BUSHING,14-16.5-17.7(12) WAVE WASHER(13) COVER HOOK(14) BOLT(15) WASHER, 6-16-1.5(16) FUEL CONNECTOR (ENGINE, MALE)(17) FUEL CONNECTOR PROTECTOR(18) BOLT(19) CLAMP, 6.5-87P(20) RUBBER HOSE(21) CLIP o 10(21) CLIP o 10(22) CONTROL CABLE GROMMET(23) BATTERY CABLE GROMMET(24) GROMMET, 17-2.7(24) GROMMET, 17-2.7(25) THROTTLE CABLE GROMMET(26) SHIFT DECAL (F, N, R)(27) STORAGE DECAL(28) OIL PRESSURE DECAL(29) PLUG



Parts List
2005 :: 25 HP :: 4 Stroke Nissan NSF25B :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3R0Q671000 3R0Q67100-0 MOTOR COVER (LOWER) PTT TYPE FIG. 21 $0.00 1 Sold Out View More Details
(2) SHIFT LEVER BRACKET COVER 3R0Q761180 3R0Q76118-0 $40.17 1 Sold Out View More Details
(3) BOLT 9101135635M 910113-5635 $2.10 1
(4) BOLT 9101135650M 910113-5650 $0.00 3 Sold Out View More Details
(5) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.78 8 Sold Out View More Details
(6) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.89 4
(7) BOLT 9101130630M 910113-0630 $1.30 4
(8) WASHER 6.5-21-1 346671150M 346-67115-0 $1.50 4
(9) HOOK LEVER 3R3Q671410 3R3Q67141-0 $16.33 1
(10) SEAL RING 338671470M 338-67147-0 $1.98 1
(11) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 $1.78 1
(12) WAVE WASHER D=14 9414031400M 941403-1400 $0.88 1
(13) COVER HOOK 3R3671420M 3R3-67142-0 $7.54 1
(14) BOLT 9101135612M 910113-5612 $1.15 1 Sold Out View More Details
(15) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 1
(16) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $27.35 1
(17) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.83 1
(18) BOLT 9101135630M 910113-5630 $1.22 1 Sold Out View More Details
(19) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 $1.64 1
(20) RUBBER HOSE 98AB51000M 98AB51000M $12.20 1
(21) CLIP ø10 338022150M 338-02215-0 $1.50 2
(22) GROMMET CONTROL CABLE 3R0837320M 3R0-83732-0 FOR EP & EPT $4.44 1
(23) GROMMET BATTERY CORD 353671620M 353-67162-0 $3.54 1
(24) GROMMET 17-2.7 345671170M 345-67117-0 1 FOR EP $2.48 2
(25) GROMMET THROTTLE CABLE 3R0636210M 3R0-63621-0 FOR MF & EF $2.94 1
(26) SHIFT DECAL (F N R) 3V9675780M 3V9-67578-0 FOR MF & EF $7.55 1 Sold Out View More Details
(27) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.32 1
(28) OIL PRESSURE DECAL 3H6761990M 3H6-76199-0 $0.00 1 Sold Out View More Details
(29) PLUG 3B7010460M 3B7-01046-0 FOR EP & EPT $1.50 1
