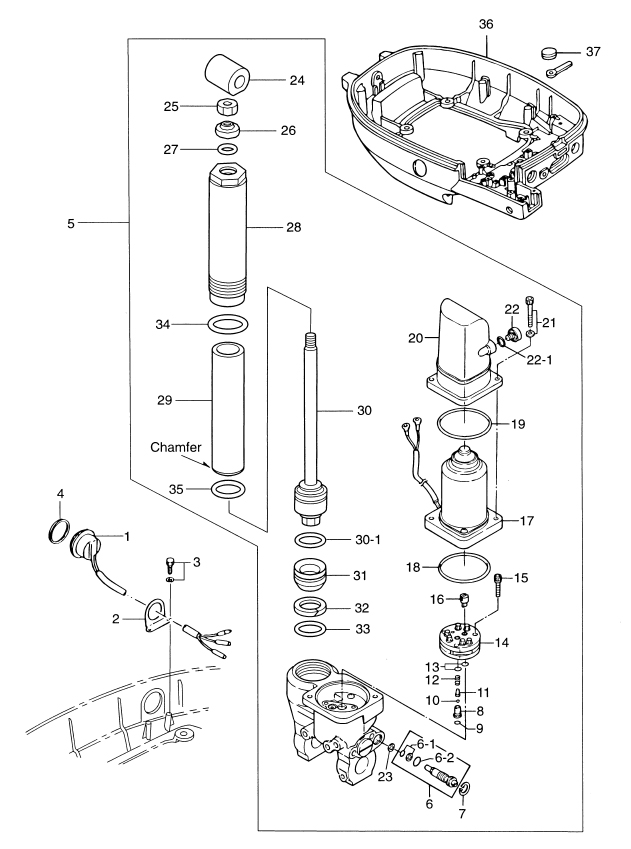

21. POWER TRIM & TILT

Click Here for Microfiche Usage Tip
(1) PTT SWITCH(2) PTT SWITCH BRACKET(3) BOLT(4) PTT SWITCH GASKET(5) POWER TRIM & TILT(6) MANUAL VALVE ASSY(6-1) SEAL SET(6-2) O-RING, 2.4-9.8(7) C-RING(8) VALVE SEAT(9) O-RING, 1.5-3.5(10) BALL(11) SPRING SEAT(12) SPRING(13) O-RING, 1.5-6.5(14) PUMP(15) BOLT(16) PUMP COUPLING(17) MOTOR(18) O-RING, 2-62.5(19) O-RING, 2.4-66.6(20) RESERVOIR TANK(21) BOLT(22) CAP ASSY(22-1) O-RING, 1.9-9.8(23) SEAL WASHER(24) JOINT(25) NUT(26) DUST SEAL(27) O-RING, 2.4-12.3(28) CYLINDER(29) INNER TUBE(30) PISTON ROD ASSY(30-1) O-RING, 2-28.5(31) FREE PISTON(32) BACK-UP RING(33) O-RING, 2.4-27.7(34) O-RING, 2-43.5(35) O-RING, 2-34.5(36) BOTTOM COWL(37) GROMMET, 18-2.5



Parts List
2005 :: 25 HP :: 4 Stroke Nissan NSF25B :: POWER TRIM & TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PTT SWITCH 3AC726150M 3AC-72615-0 $61.81 1
(2) BRACKET PTT SWITCH 3F3726171M 3F3-72617-1 $7.59 1
(3) BOLT 9101135616M 910113-5616 $1.15 2
(4) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 $3.27 1
(5) POWER TRIM & TILT 3ACQ771510 3ACQ77151-0 $1,286.08 1
(6) MANUAL VALVE ASSY 3AC771750M 3AC-77175-0 $161.97 1
(6-1) SEAL SET 3R0774090M 3R0-77409-0 $8.33 1
(6-2) O-RING 2.4 - 9.8 3R0771770M 3R0-77177-0 $3.05 1
(7) C-RING 3R0771710M 3R0-77171-0 $3.52 1
(8) VALVE SEAT 3AC774530M 3AC-77453-0 $57.41 1
(9) O-RING 1.5 - 3.5 3R0774510M 3R0-77451-0 $2.71 1
(10) BALL 3R0774570M 3R0-77457-0 $12.52 1
(11) SPRING SEAT 3AC774540M 3AC-77454-0 $13.97 1
(12) SPRING 3R0774550M 3R0-77455-0 $2.60 1
(13) O-RING 1.5 - 6.5 3B7774330M 3B7-77433-0 $3.34 2
(14) PUMP 3R0774300M 3R0-77430-0 $250.48 1
(15) BOLT 3B7774311M 3B7-77431-1 $3.36 3
(16) COUPLING PUMP 3E0771630M 3E0-77163-0 $9.60 1
(17) MOTOR ASSY 3AC771800M 3AC-77180-0 $618.31 1
(18) O-RING 2 – 62.5 3R0771670M 3R0-77167-0 $7.66 1
(19) O-RING 2.4 – 66.6 3C8771820M 3C8-77182-0 $8.42 1
(20) RESERVOIR TANK 3R0771650M 3R0-77165-0 $105.64 1
(21) BOLT 3R0771590M 3R0-77159-0 $5.81 2
(22) CAP ASSY 3R0771680M 3R0-77168-0 $19.16 1
(22-1) O-RING 1.9 – 9.8 3R0771690M 3R0-77169-0 $2.95 1
(23) SEAL WASHER 3AC771730M 3AC-77173-0 $6.76 1
(24) JOINT 3AD773670M 3AD-77367-0 $119.26 1
(25) NUT 3AC773740M 3AC-77374-0 $7.05 1
(26) DUST SEAL 3AC773820M 3AC-77382-0 $9.09 1 Sold Out View More Details
(27) O-RING 2.4-12.3 3AC773840M 3AC-77384-0 $4.38 1
(28) CYLINDER 3AC773610M 3AC-77361-0 $294.45 1
(29) INNER TUBE 3AC773630M 3AC-77363-0 $20.59 1
(30) PISTON ROD ASSY 3AC773650M 3AC-77365-0 $512.95 1
(30-1) O-RING 2-28.5 3AC773750M 3AC-77375-0 $4.38 1
(31) FREE PISTON 3AC773770M 3AC-77377-0 $45.63 1
(32) BACK-UP RING 3AC773760M 3AC-77376-0 $25.02 1
(33) O-RING 2.4-27.7 3AC773980M 3AC-77398-0 $5.87 1
(34) O-RING 2-43.5 3AC773920M 3AC-77392-0 $6.03 1
(35) O-RING 2-34.5 3AC773830M 3AC-77383-0 $5.87 1
(36) BOTTOM COWL 3S9Q671000 3S9Q67100-0 MOTOR COVER LOWER $0.00 1 Sold Out View More Details
(37) GROMMET 18-2.5 338671630M 338-67163-0 FOR PTT TYPE $2.07 1
