19. SWIVEL BRACKET (MANUAL TYPE)

Click Here for Microfiche Usage Tip

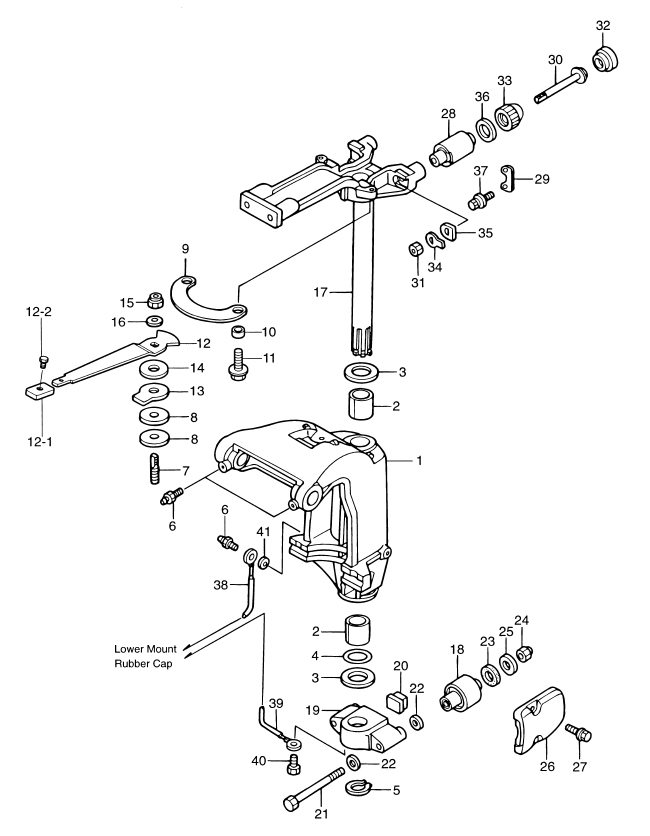

(1) SWIVEL BRACKET(2) BUSHING, 30-36-41(2) BUSHING, 30-36-41(3) THRUST PLATE, 31-50-2(3) THRUST PLATE, 31-50-2(4) O-RING, 3.5-29.7(5) C-RING, D=28(6) GREASE FITTING(6) GREASE FITTING(7) CO-PILOT BOLT(8) CO-PILOT DISK(9) CO-PILOT PLATE(10) COLLAR, 6.5-10.5-6.5(11) BOLT(12) CO-PILOT HANDLE(12-1) GRIP(12-2) STOPPER(13) CO-PILOT WASHER(14) WASHER, 8.1-20-0.8(15) NYLON NUT, 8P-1.25(16) WASHER(17) STEERING SHAFT ASSY(18) RUBBER MOUNT (LOWER)(19) MOUNT BRACKET(20) RUBBER DAMPER (LOWER)(21) RUBBER MOUNT BOLT (LOWER)(22) WASHER(22) WASHER(23) RUBBER DAMPER, 21-36-5(24) NYLON NUT, 12-P1.25(25) WASHER, 13-34-3(26) MOUNT HOLDING PLATE (LOWER)(27) BOLT(28) RUBBER MOUNT (UPPER)(29) RUBBER MOUNT RETAINER(30) RUBBER MOUNT BOLT (UPPER)(31) NUT(32) DAMPER RUBBER (UPPER) "A"(33) DAMPER RUBBER (UPPER) "B"(34) RUBBER MOUNT LOCK PLATE(35) WASHER(36) LOCK PLATE (UPPER)(37) BOLT(38) GROUND CABLE(39) GROUND CABLE(40) BOLT(41) WASHER



Parts List
2005 :: 25 HP :: 4 Stroke Nissan NSF25B :: SWIVEL BRACKET (MANUAL TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWIVEL BRACKET 3AEQ623100 3AEQ62310-0 $256.16 1
(2) BUSHING 30 - 36 - 41 353624170M 353-62417-0 $5.98 2 Sold Out View More Details
(3) THRUST PLATE 353624230M 353624230M $3.92 2
(4) O-RING 3.5 - 29.7 353624150M 353-62415-0 $2.53 1
(5) C-RING D=28 9451032800M 945103-2800 $1.06 1
(6) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(7) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR MF & EF $6.74 1
(8) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR MF & EF $7.91 2
(9) PLATE 3AC624470M 3AC-62447-0 FOR MF & EF $5.44 1
(10) COLLAR 6.5-10.7-6.5 3AC636190M 3AC-63619-0 FOR MF & EF $2.74 2
(11) BOLT 9101135616M 910113-5616 FOR MF & EF $1.15 2
(12) FRICTION LEVER ASSY 3AC624500M 3AC-62450-0 FOR MF & EF $13.34 1
(12-1) GRIP 3AC630120M 3AC-63012-0 FOR MF & EF $7.05 1
(12-2) STOPPER LEVER GRIP 346663340M 346-66334-0 FOR MF & EF $1.27 1
(13) CO-PILOT WASHER 3R3624480M 3R3624480M FOR MF & EF $5.59 1
(14) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR MF & EF $1.48 1
(15) NYLON NUT 8P-1.25 9304030800M 930446-0800 FOR MF & EF $1.99 1
(16) WASHER 9401130800M 940113-0800 FOR MF & EF $0.84 1
(17) STEERING SHAFT ASSY 3R0Q620100 3R0Q62010-0 $271.86 1
(18) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $46.05 2
(19) MOUNT BRACKET 3AEQ614110 3AEQ61411-0 $123.66 1
(20) DAMPER RUBBER 3C8613360M 3C8-61336-0 $5.69 1
(21) BOLT LOWER MOUNT RUBBER 3R0613210M 3R0-61321-0 $16.93 2
(22) WASHER 9402131200M 940213-1200 $2.10 4
(23) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(24) NYLON NUT 12 P1.25 3R0613240M 3R0-61324-0 $6.47 2 Sold Out View More Details
(25) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(26) MOUNT HOLDING PLATE (LOWER) 3R0Q613420 3R0Q61342-0 RUBBER MOUNT CAP (LOWER) $28.48 2
(27) BOLT 9101135620M 910113-5620 $1.30 4
(28) RUBBER MOUNT (UPPER) 3R0613011M 3R0-61301-0 $26.54 2
(29) RUBBER MOUNT RETAINER 3R0613120M 3R0613120M $1.71 2
(30) BOLT MOUNT RUBBER 3R0613070M 3R0-61307-0 $10.64 2
(31) NUT 9301031000M 930103-1000 $1.59 2
(32) UPPER DAMPER RUBBER A 3R0613330M 3R0-61333-0 $1.62 2
(33) UPPER DAMPER RUBBER B 3R0613371M 3R0-61337-1 $1.71 2
(34) LOCK PLATE MOUNT RUBBER 3R0613230M 3R0-61323-0 $1.93 2
(35) WASHER 345613222M 345-61322-2 $1.85 2
(36) UPPER LOCK PLATE 3R0613350M 3R0-61335-0 $1.93 2
(37) BOLT 9101130620M 910113-0620 $1.04 4
(38) GROUND CABLE 3C8623961M 3C8-62396-0 L=210 $4.56 1
(39) GROUNG CABLE 3A3623961M 3A3-62396-0 L=110 $17.85 1
(40) BOLT 9101035612M 910103-5612 $1.07 1
(41) WASHER 9401030600M 940103-0600 $0.70 1
