12. STEERING HANDLE (TILLER HANDLE)

Click Here for Microfiche Usage Tip

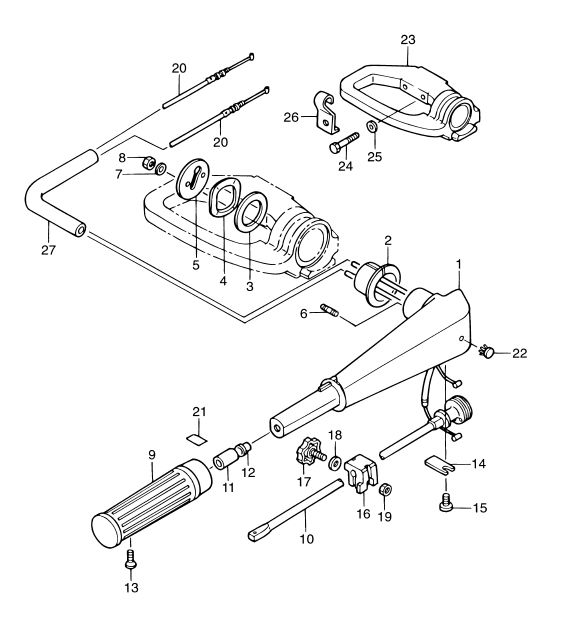

(1) TILLER HANDLE(2) TILLER HANDLE BUSHING(3) WASHER, 39-52-1(4) WAVE WASHER, 39.5-52-1.2(5) TILLER HANDLE COVER(6) STUD BOLT(7) WASHER(8) NUT(9) GRIP(10) THROTTLE SHAFT(11) THROTTLE SHAFT DAMPER(12) BUSHING, 8.4-10-11(13) SCREW(14) THROTTLE SHAFT SUPPORTER(15) SCREW(16) GRIP FRICTION PIECE(17) ADJUSTING SCREW(18) WASHER(19) NUT(20) THROTTLE CABLE(20) THROTTLE CABLE(21) THROTTLE DECAL(22) PLASTIC RIVET, 6.5(23) STEERING BRACKET(24) BOLT, 10-80 P1.5(25) WASHER(26) THROTTLE CABLE CLAMP(27) PROTECTOR



Parts List
2005 :: 25 HP :: 4 Stroke Nissan NSF25B :: STEERING HANDLE (TILLER HANDLE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE 3R3Q630110 3R3Q63011-0 FOR MF & EF $47.36 1
(2) BUSHING HANDLE 3R3631020M 3R3-63102-0 FOR MF & EF $1.22 1
(3) WASHER 39 - 52 -1 3R3631080M 3R3-63108-0 FOR MF & EF $1.27 1
(4) WAVE WASHER 39 - 52 -1.2 3R3631090M 3R3-63109-0 FOR MF & EF $5.64 1
(5) PLATE STEERING HANDLE 3R3631070M 3R3-63107-0 FOR MF & EF $3.37 1
(6) STUD BOLT 3B2631041M 3B2-63104-1 FOR MF & EF $3.27 2
(7) WASHER 9401130600M 940113-0600 FOR MF & EF $0.83 2
(8) NUT 9301130600M 930113-0600 FOR MF & EF $0.84 2
(9) GRIP 3R3630120M 3R3-63012-0 FOR MF & EF $16.97 1
(10) THROTTLE SHAFT 3R3630410M 3R3-63041-0 FOR MF & EF $12.36 1
(11) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 FOR MF & E $1.85 1
(12) BUSHING 8.4 -10 -11 350630460M 350-63046-0 FOR MF & EF $1.85 1
(13) SCREW 9218030518M 921803-0518 FOR MF & EF $0.72 1
(14) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 FOR MF & EF $2.31 1
(15) SCREW 9215130612M 921513-0612 FOR MF & EF $0.93 1
(16) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 FOR MF & EF $4.19 1
(17) ADJUSTING SCREW 3B2630340M 3B2-63034-0 FOR MF & EF $4.19 1
(18) WASHER 9401130600M 940113-0600 FOR MF & EF $0.83 1
(19) NUT 9301130600M 930113-0600 FOR MF & EF $0.84 1
(20) THROTTLE CABLE 3R0636000M 3R0-63600-0 FOR MF & EF $18.00 2
(21) THROTTLE DECAL 3AC720190M 3AC-72019-0 FOR MF & EF $2.21 1
(22) PLASTIC RIVET 6.5 350671540M 350-67154-0 FOR MF & EF $1.85 1
(23) STEERING BRACKET 3R3Q620010 3R3Q62001-0 FOR MF & EF $70.24 1
(24) BOLT 10 - 80 P1.5 3R3620940M 3R3620940M FOR MF & EF $6.84 2
(25) WASHER 9401131000M 940113-1000 FOR MF & EF $1.50 2
(26) CLAMP THROTTLE CABLE 3R0636280M 3R0-63628-0 FOR MF & EF $2.58 1
(27) PROTECTION TUBE 3R0061570M 3R0-06157-0 FOR MF & EF $2.58 1
