6. CAMSHAFT & OIL PUMP

Click Here for Microfiche Usage Tip

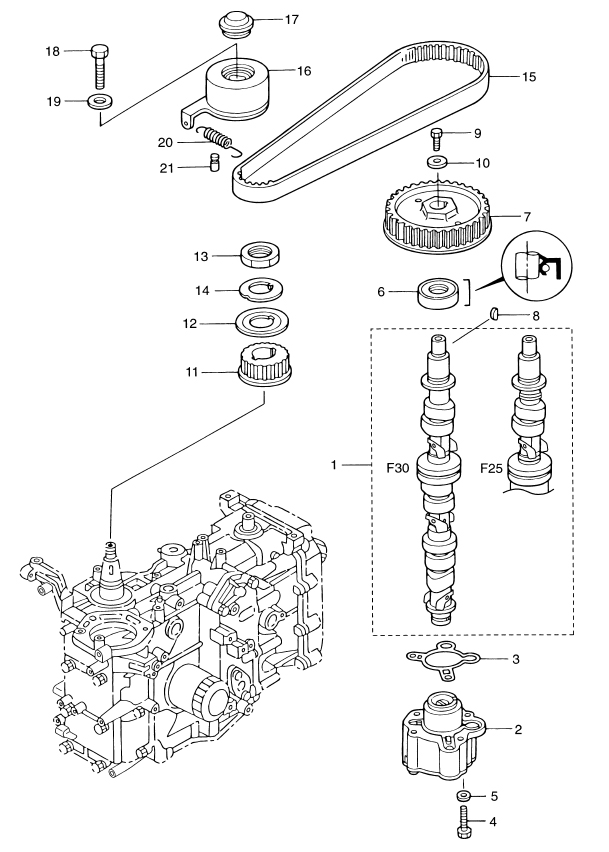

(1) CAMSHAFT(2) OIL PUMP(3) OIL PUMP O-RING (OUTER)(4) BOLT(5) WASHER(6) OIL SEAL, 18-35-8(7) DRIVEN PULLEY(8) KEY(9) BOLT, 6-20 PRE-COATED(10) WASHER, 6.5-19-3.2(11) DRIVE PULLEY(12) BELT GUIDE(13) NUT(14) LOCK WASHER(15) TIMING BELT(16) TIMING BELT TENSIONER(17) TENSIONER COVER(18) BOLT(19) WASHER(20) TENSIONER SPRING(21) TENSIONER SPRING HOOK



Parts List
2005 :: 25 HP :: 4 Stroke Nissan NSF25B :: CAMSHAFT & OIL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CAMSHAFT 3AD070100M 3AD-07010-0 WITH PIN & DECOMPRESSOR $191.37 1
(2) OIL PUMP 3R0076000M 3R0-07600-0 $109.25 1
(3) O-RING OIL PUMP OUTER 3R0076390M 3R0-07639-0 $2.31 1
(4) BOLT 9101140645M 910114-0645 $1.25 3
(5) WASHER 9401130600M 940113-0600 $0.83 3
(6) OIL SEAL 18-35-8 3H8070250M 3H8-07025-0 $5.44 1
(7) DRIVEN PULLEY 3H8100622M 3H8-10062-2 CAMSHAFT PULLEY (BLACK) $48.39 1
(8) KEY 309001310M 309-00131-0 $2.31 1
(9) BOLT 6-20 PRE-COATED 3AA601080M 3AA-60108-0 $1.45 1 Sold Out View More Details
(10) WASHER 6.5-19-3.2 3H8100660M 3H8-10066-0 $1.27 1 Sold Out View More Details
(11) DRIVE PULLEY 3R0100600M 3R0-10060-0 TIMING PULLEY $48.83 1
(12) PLATE 3R0100630M 3R0-10063-0 $1.93 1
(13) NUT 3R0100680M 3R0-10068-0 $5.02 1
(14) LOCK WASHER 3R0100690M 3R0-10069-0 $1.93 1
(15) TIMING BELT 3R0100610M 3R0-10061-0 $57.04 1
(16) TENSIONER TIMING BELT 3R0100700M 3R0-10070-0 $0.00 1 Sold Out View More Details
(17) COVER TENSIONER 3R0100740M 3R0-10074-0 $1.45 1
(18) BOLT 9101131040M 910113-1040 $0.00 1 Sold Out View More Details
(19) WASHER 9401131000M 940113-1000 $1.50 1
(20) SPRING TENSIONER 3R0100750M 3R0-10075-0 $9.20 1
(21) HOOK TENSIONER SPRING 3R0100770M 3R0-10077-0 $0.00 1 Sold Out View More Details
