5. CAMSHAFT & VALVE

Click Here for Microfiche Usage Tip

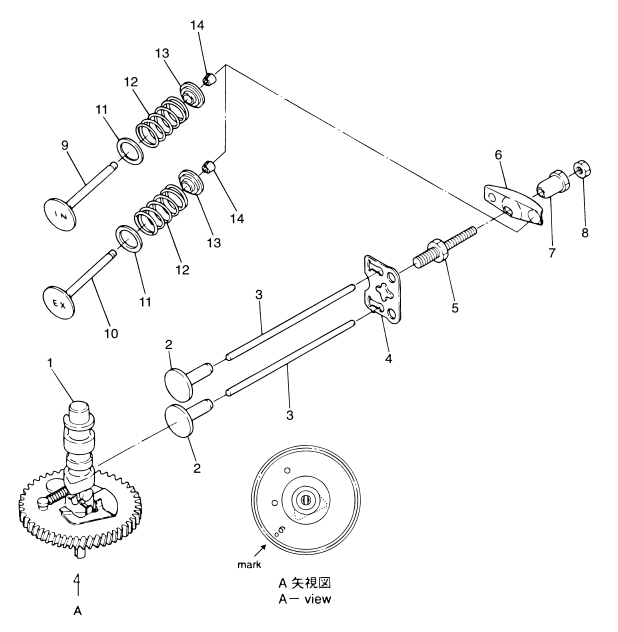

(1) CAMSHAFT(2) LIFTER(2) LIFTER(3) PUSH ROD(3) PUSH ROD(4) PUSH ROD PLATE(5) PIVOT BOLT(6) ROCKER ARM(7) ROCKER ARM PIVOT(8) ADJUSTING NUT(9) INTAKE VALVE(10) EXHAUST VALVE(11) VALVE SPRING SEAT(11) VALVE SPRING SEAT(12) VALVE SPRING(12) VALVE SPRING(13) RETAINER(13) RETAINER(14) COTTER(14) COTTER



Parts List
2005 :: 5 HP :: 4 Stroke Tohatsu MFS5B :: CAMSHAFT & VALVE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CAMSHAFT 3R4070100M 3R4-07010-0 MARK 6 $125.82 1
(2) LIFTER 3H6072310M 3H6-07231-0 $4.98 2
(3) PUSH ROD 3H6072320M 3H6-07232-0 $3.63 2
(4) PUSH ROD PLATE 3H6072330M 3H6-07233-0 $2.58 1
(5) PIVOT BOLT 3H6072340M 3H6-07234-0 $1.71 2
(6) ROCKER ARM 3H6072350M 3H6-07235-0 $6.51 2
(7) ROCKER ARM PIVOT 3H6072360M 3H6-07236-0 $3.82 2
(8) ADJUSTING NUT 3H6072370M 3H6-07237-0 $1.11 2
(9) INTAKE VALVE 3H6072010M 3H6-07201-0 $22.69 1
(10) EXHAUST VALVE 3H6072020M 3H6-07202-0 $19.01 1
(11) VALVE SPRING SEAT 3H6072050M 3H6-07205-0 $1.30 2
(12) VALVE SPRING (OLD) 3H6072031M 3H6-07203-1 L=35 $3.43 2
(13) RETAINER 3H6072210M 3H6-07221-0 $4.40 2
(14) COTTER 3H6072230M 3H6-07223-0 $2.48 4
