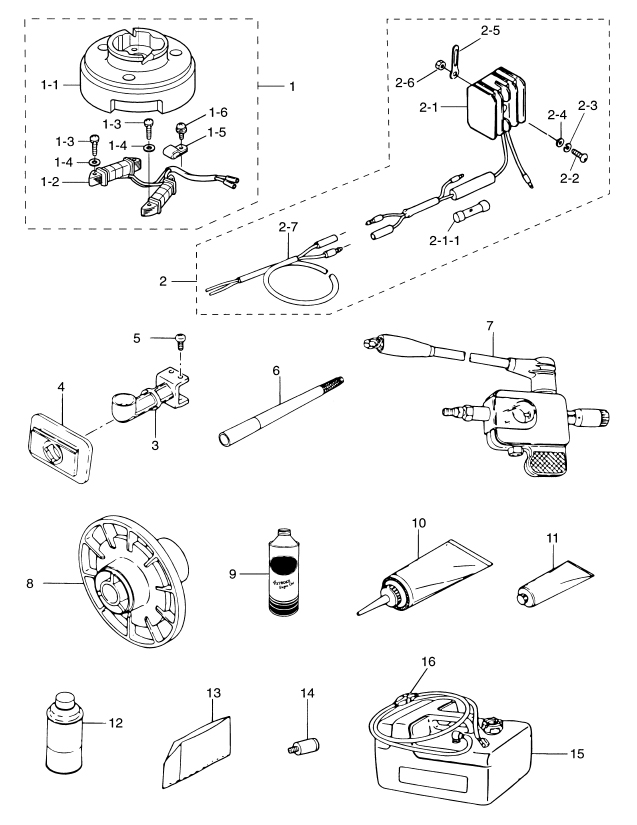

19. OPTIONAL PARTS (2) ACCESSORIES

Click Here for Microfiche Usage Tip
(1) ALTERNATOR KIT(1-1) FLYWHEEL CUP, MFS54 (MARK 50)(1-2) ALTERNATOR (12V60W)(1-3) SCREW(1-3) SCREW(1-4) WASHER(1-4) WASHER(1-5) CLAMP 4.2-3-8(1-6) SCREW(2) RECTIFIER KIT(2-1) RECTIFIER(2-1-1) FUSE (10A)(2-2) SCREW(2-3) SPRING WASHER(2-4) WASHER(2-5) CLAMP, 7-80P(2-6) NUT(2-7) EXTENSION CORD(3) VERTICAL STARTING ELBOW(4) VERTICAL STARTING SEAL(5) TAPPING SCREW, 6-12(6) LONG HANDLE, 0.4M(6) LONG HANDLE, 0.8M(6) LONG HANDLE, 1.0M(7) SPARK TESTER(8) TEST PROPELLER(9) TOHATSU 4-CYCLE FCW OIL (12-QUARTS)(9) TOHATSU 4-CYCLE FCW OIL (6-GALLONS)(9) NISSAN 4-CYCLE FCW OIL (12-QUARTS)(9) NISSAN 4-CYCLE FCW OIL (6-GALLONS)(10) TOHATSU GEAR LUBE (12-QUARTS)(10) TOHATSU GEAR LUBE (5 GAL PAIL)(10) TOHATSU GEAR LUBE (16 GAL DRUM)(10) NISSAN GEAR LUBE (12-QUARTS)(10) NISSAN GEAR LUBE (5 GAL PAIL)(10) NISSAN GEAR LUBE (16 GAL DRUM)(11) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(11) NISSAN GREASE (10-14 OZ. CARTRIDGE)(12) TOUCH-UP PAINT (AQUAMARINE BLUE)(12) TOUCH-UP PAINT (SILVER GRAY)(13) VINYL MOTOR COVER (S)(14) FLUSHING ATTACHMENT(15) FUEL TANK (12L, PLASTIC)(15) FUEL TANK (12L, PLASTIC)(16) PRIMER BULB ASSY



Parts List
2005 :: 5 HP :: 4 Stroke Nissan NSF5B :: OPTIONAL PARTS (2) ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ALTERNATOR KIT 3AS061280M 3AS-06128-0 #023742XE~ F6B/5B/4B~ $274.67 1
(1-1) FLYWHEEL CUP MFS54 (MARK 50) 3AS060010M 3AS-06001-0 FOR WITH ALTERNATOR F6B/5B/4B #023742XE~ $187.92 1
(1-2) ALTERNATOR (12V60W) 3AS060230M 3AS-06023-0 #023742XE~ F6B/5B/4B~ $81.36 1
(1-3) SCREW 9215030525M 921503-0525 $0.97 4
(1-4) WASHER 9401030500M 940103-0500 $0.56 4
(1-5) CLAMP 4.2-3-8 369069150M 369-06915-0 $2.48 1
(1-6) SCREW 9215216408M 921521-6408 $0.67 1
(2) RECTIFIER KIT 3H6761600M 3H6-76160-0 $53.27 1
(2-1) RECTIFIER 369760601M 369-76060-1 $52.26 1
(2-1-1) FUSE (10A) 334762110M 334-76211-0 $2.03 1
(2-2) SCREW 9215030525M 921503-0525 $0.97 1
(2-3) SPRING WASHER 9413030500M 941303-0500 $0.97 1
(2-4) WASHER 9401030500M 940103-0500 $0.56 1
(2-5) CLAMP 7-80P 353069720M 353-06972-0 $2.35 1
(2-6) NUT 9301030500M 930103-0500 $0.92 1
(2-7) EXTENSION CORD 369761610M 369-76161-0 L=2000 $11.79 1
(3) VERTICAL STARTING ELBOW 369B059110 369B05911-0 $78.27 1
(4) VERTICAL STARTING SEAL 3B2059120M 3B2-05912-0 $14.45 1
(5) TAPPING SCREW 6-12 369059130M 369-05913-0 $0.00 4 Sold Out View More Details
(6) LONG HANDLE 0.4M 3B2630370 3B2-63037-0 $0.00 1 Sold Out View More Details
(6) LONG HANDLE 0.8M 3A1630390M 3A1-63039-0 $0.00 1 Sold Out View More Details
(6) LONG HANDLE 1.0M 3A1630380M 3A1-63038-0 $0.00 1 Sold Out View More Details
(7) SPARK TESTER 3F3725400M 3F3-72540-0 $181.77 1
(8) TEST PROPELLER 369641110M 369-64111-0 $0.00 1 Sold Out View More Details
(9) TOHATSU 4-CYCLE FCW OIL (12-QUARTS) 332823080M 332823080M QUARTS - 12 PER CASE $132.74 1
(9) TOHATSU 4-CYCLE FCW OIL (6-GALLONS) 332823050M 332823050M GALLONS - 6 PER CASE $158.85 1 Sold Out View More Details
(9) NISSAN 4-CYCLE FCW OIL (12-QUARTS) 332823070M 332823070M QUARTS - 12 PER CASE $132.74 1
(9) NISSAN 4-CYCLE FCW OIL (6-GALLONS) 332823020M 332823020M GALLONS - 6 PER CASE $158.85 1 Sold Out View More Details
(10) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $150.31 1
(10) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $214.27 1
(10) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(10) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $150.31 1
(10) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $214.27 1
(10) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(11) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $0.00 1 Sold Out View More Details
(11) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $0.00 1 Sold Out View More Details
(12) TOUCH-UP PAINT (SILVER GRAY) 3B7723260M 3B7-72326-0 OLD N.A.F.N. $0.00 0 Sold Out View More Details
(13) VINYL MOTOR COVER (S) 369723140M 369-72314-0 UNIQUE $0.00 1 Sold Out View More Details
(14) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.61 1 Sold Out View More Details
(15) FUEL TANK (12L PLASTIC) 99998FT12M 99998FT12M FOR F6B(D)/5B(D)/4B(D) NISSAN $93.44 1
(15) FUEL TANK (12L PLASTIC) 3B2701670M 3B2-70167-0 FOR F6B(D)/5B(D)/4B(D) TOHATSU $93.44 1
(16) PRIMER BULB ASSY 3H6702000M 3H6-70200-0 FOR F6B(D)/5B(D)/4B(D) $131.17 1
