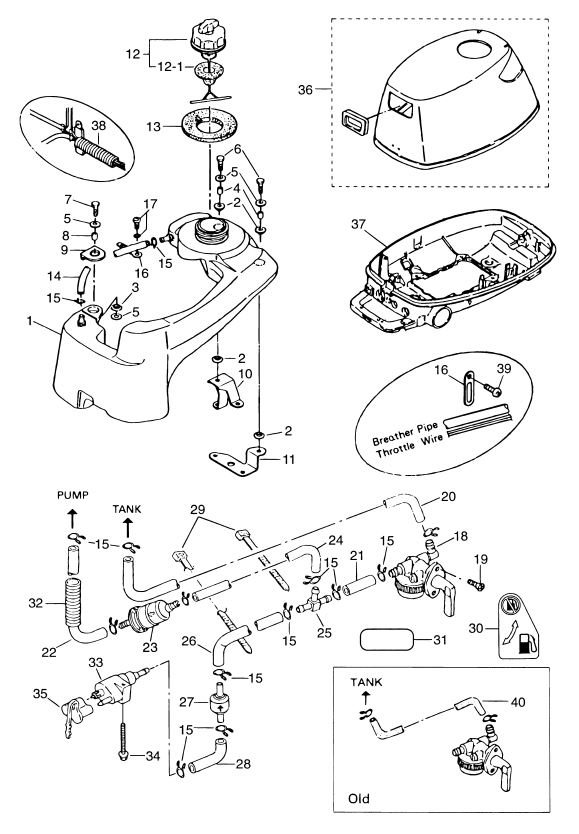

17. INTEGRAL FUEL TANK

Click Here for Microfiche Usage Tip
(1) FUEL TANK(2) RUBBER MOUNT, 8.5-14-2.5(2) RUBBER MOUNT, 8.5-14-2.5(2) RUBBER MOUNT, 8.5-14-2.5(3) RUBBER MOUNT, 9-23-4(4) SPACER, 6.2-9-15.7(5) WASHER, 6.5-21-1(5) WASHER, 6.5-21-1(5) WASHER, 6.5-21-1(6) BOLT(7) BOLT(8) SPACER, 6.2-9-11.5(9) FUEL TANK HOLDING PLATE(10) BRACKET (REAR)(11) BRACKET (LEFT)(12) TANK CAP(12-1) TANK CAP GASKET(13) FUEL TANK SEAL(14) RUBBER HOSE(15) CLIP, o 10(15) CLIP, o 10(15) CLIP, o 10(15) CLIP, o 10(15) CLIP, o 10(15) CLIP, o 10(15) CLIP, o 10(15) CLIP, o 10(16) CLAMP, 6.5-47.5P(16) CLAMP, 6.5-47.5P(17) SCREW(18) FUEL COCK(19) SCREW(20) FUEL HOSE, 4.5S-310(21) RUBBER HOSE(22) FUEL HOSE "C"(23) FUEL FILTER(24) FUEL HOSE, 4.5L-230(25) HOSE JOINT "T" TYPE(26) FUEL HOSE, 4.5L-115(27) NON RETURN VALVE(28) FUEL HOSE "F"(29) LEAD WIRE BAND, 150(30) FUEL LEVER DECAL "B"(31) FUEL LEVER DECAL "D"(32) FUEL HOSE PROTECTOR(33) FUEL CONNECTOR (ENGINE, MALE)(34) BOLT(35) FUEL CONNECTOR PROTECTOR(36) TOP COWL (FOR INTEGRAL TANK)(37) BOTTOM COWL (FOR INTERGRAL TANK)(38) WIRE HARNESS PROTECTOR(39) SCREW(40) FUEL HOSE, 4.5L-335



Parts List
2005 :: 5 HP :: 4 Stroke Nissan NSF5B :: INTEGRAL FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL TANK 3H9703161M 3H9-70316-1 $61.74 1
(2) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 4
(3) RUBBER MOUNT 9-23-4 122350830M 122-35083-0 $2.07 1
(4) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 2
(5) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(6) BOLT 9101130625M 910113-0625 OR 910103-0625 $0.95 2
(7) BOLT 9101130620M 910113-0620 OR 910103-0620 $1.04 1
(8) SPACER 6.2-9-11.5 3H9700150M 3H9-70015-0 $1.18 1
(9) FUEL TANK HOLDING PLATE 3H9700480M 3H9-70048-0 $3.37 1
(10) BRACKET (REAR) 3H9700440M 3H9-70044-0 $0.00 1 Sold Out View More Details
(11) BRACKET (LEFT) 3H9700460M 3H9-70046-0 OLD 4A2~#12517 $0.00 0 Sold Out View More Details
(12) TANK CAP 3H9700200M 3H9-70020-0 $14.44 1 Sold Out View More Details
(12-1) TANK CAP GASKET 309700213M 309-70021-3 $3.64 1
(13) FUEL TANK SEAL 3H9700360M 3H9-70036-0 $6.21 1 Sold Out View More Details
(14) RUBBER HOSE 98AB50250M 98AB-5-0250 $11.41 1
(15) CLIP ø10 338022150M 338-02215-0 $1.41 14
(16) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(17) SCREW 9215035512M 921503-5512 $0.83 1
(18) FUEL COCK 3H9703110M 3H9-70311-0 $24.59 1 Sold Out View More Details
(19) SCREW 9218030410M 921803-0410 $0.60 2
(20) FUEL HOSE 4.5S-310 3H9703260M 3H9-70326-0 $0.00 1 Sold Out View More Details
(21) RUBBER HOSE 98AB51000M 98AB51000M $11.41 1
(22) FUEL HOSE C 394022110M 394-02211-0 $0.00 1 Sold Out View More Details
(23) FUEL FILTER 369022300M 369-02230-0 $12.14 1
(24) FUEL HOSE 4.5L-230 3H9703250M 3H9-70325-0 $0.00 1 Sold Out View More Details
(25) HOSE JOINT T TYPE 394700130M 394-70013-0 $2.19 1
(26) FUEL HOSE 4.5L-115 3H6022040M 3H6-02204-0 $0.00 1 Sold Out View More Details
(27) NON RETURN VALVE 394703270M 394-70327-0 $14.90 1
(28) FUEL HOSE F 394703250M 394-70325-0 $3.45 1
(29) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
(30) FUEL LEVER DECAL B 3H9720240M 3H9-72024-0 $1.33 1
(31) FUEL LEVER DECAL D 394720160M 394-72016-0 $0.00 1 Sold Out View More Details
(32) FUEL HOSE PROTECTOR 3H9703130M 3H9-70313-0 $2.31 1
(33) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(34) BOLT 9101135640M 910113-5640 $1.68 1
(35) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(36) TOP COWL (FOR INTEGRAL TANK) 3AUQ675001 3AUQ67500-1 MOTOR COVER (UPPER) $0.00 0 Sold Out View More Details
(37) BOTTOM COWL (FOR INTERGRAL TANK) 3H9Q671002 3H9Q67100-2 MOTOR COVER (LOWER) $186.30 1
(38) WIRE HARNESS PROTECTOR 3H9061330M 3H9-06133-0 $0.00 1 Sold Out View More Details
(39) SCREW 9215130612M 921513-0612 OR 921503-0612 $0.93 1
(40) FUEL HOSE 4.5L-335 3H9022040M 3H9-02204-0 OLD 4A#10230~4A2#12182 $0.00 0 Sold Out View More Details
