15. COWL

Click Here for Microfiche Usage Tip

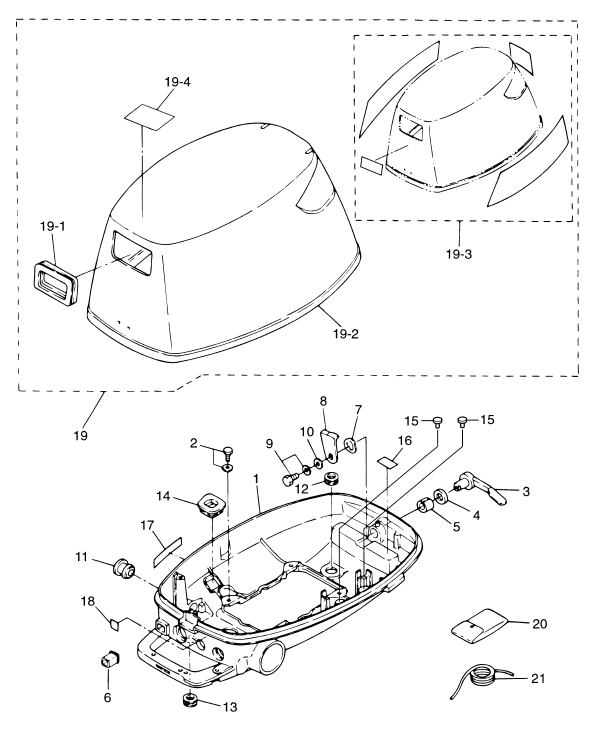

(1) BOTTOM COWL (FOR SEPARATE TANK)(2) BOLT(3) HOOK LEVER(4) SEAL RING, 13.8-22-3.7(5) HOOK LEVER BUSHING(6) CHOKE ROD BUSHING(7) WAVE WASHER, D=14(8) COVER HOOK(9) BOLT(10) WASHER, 6-16-1.5(11) THROTTLE LEVER GROMMET(12) GROMMET, 18-2.5(13) GROMMET, 17-2.7(14) STARTER LOCK ROD GROMMET(15) GROMMET(15) GROMMET(16) SPARK PLUG DECAL (WITH RESISTANCE)(17) STORAGE DECAL(18) OIL PRESSURE DECAL(19) TOP COWL (FOR SEPARATE TANK)(19) TOP COWL (FOR SEPARATE TANK)(19-1) STARTER SEAL(19-2) TOP COWL SEAL(19-3) DECAL SET(19-3) DECAL SET(19-4) CAUTION DECAL "A"(20) TOOL(21) ROPE



Parts List
2005 :: 5 HP :: 4 Stroke Nissan NSF5B :: COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL (FOR SEPARATE TANK) 3H6Q671002 3H6Q67100-2 MOTOR COVER (LOWER) $135.42 1
(2) BOLT 9101135616M 910113-5616 $1.15 4
(3) HOOK LEVER 369Q671411 369Q67141-1 $8.63 1
(4) SEAL RING 338671470M 338-67147-0 $1.85 1
(5) BUSHING 369671050M 369-67105-0 $2.07 1
(6) CHOKE ROD BUSHING 3H6671040M 3H6-67104-0 $3.39 1
(7) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(8) COVER HOOK 3H6671420M 3H6-67142-0 $7.36 1
(9) BOLT 9101036612M 910103-6612 OR 910103-6612 $1.16 1
(10) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(11) THROTTLE LEVER GROMMET 369671870M 369-67187-0 $2.19 1
(12) GROMMET 18-2.5 338671630M 338-67163-0 $2.07 1
(13) GROMMET 17-2.7 345671170M 345-67117-0 $2.31 1 Sold Out View More Details
(14) STARTER LOCK ROD GROMMET 369671880M 369-67188-0 $2.62 1
(15) GROMMET 3AS671610M 3AS-67161-0 #023742XE~ F6B/5B/4B~ $1.76 2
(16) RESISTANCE SPARK PLUG DECAL 3H6720260M 3H6-72026-0 $3.04 1
(17) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
(18) OIL PRESSURE DECAL 3H6761990M 3H6-76199-0 $0.00 1 Sold Out View More Details
(19) TOP COWL (FOR SEPARATE TANK) 3R4Q675601 3R4Q67560-1 TOHATSU MOTOR COVER (UPPER) $0.00 1 Sold Out View More Details
(19) TOP COWL (FOR SEPARATE TANK) 3CBQ676451 3CBQ67645-1 NISSAN MOTOR COVER (UPPER) $0.00 1 Sold Out View More Details
(19-1) STARTER SEAL 3B2675030M 3B2-67503-0 $9.66 1
(19-2) TOP COWL SEAL 3H6675010M 3H6-67501-0 L=1170 $24.76 1
(19-3) DECAL SET 3H6Q878011 3H6Q87801-1 TOHATSU $29.10 1
(19-3) DECAL SET 3P7N878016 3P7N87801-6 NISSAN $0.00 1 Sold Out View More Details
(19-4) CAUTION DECAL A 3R0721800M 3R0-72180-0 $3.40 1
(20) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(21) ROPE 312722010M 312-72201-0 ø 4-1000 $3.00 1
