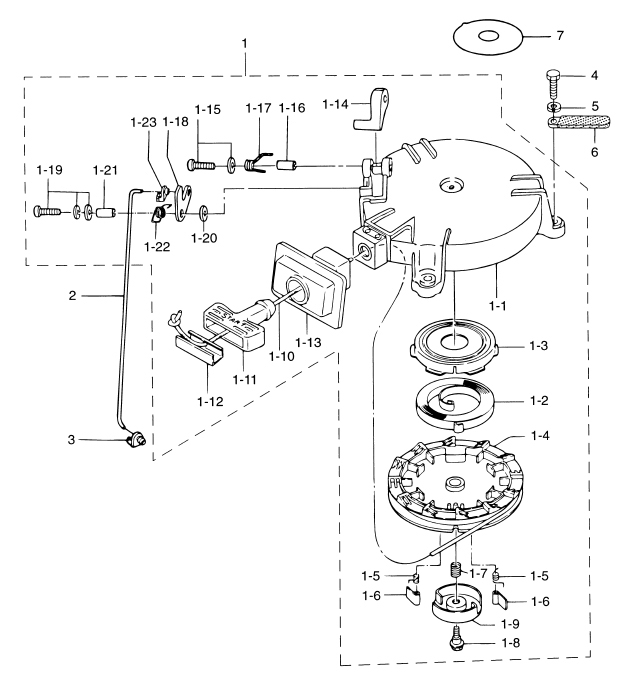

9. RECOIL STARTER

Click Here for Microfiche Usage Tip
(1) RECOIL STARTER(1-1) STARTER CASE(1-2) STARTER SPRING(1-3) STARTER SPRING CASE(1-4) REEL(1-5) RETURN SPRING(1-5) RETURN SPRING(1-6) RACHET(1-6) RACHET(1-7) FRICTION SPRING(1-8) STARTER SHAFT BOLT(1-9) FRICTION PLATE(1-10) STARTER ROPE(1-11) STARTER HANDLE(1-12) ROPE ANCHOR(1-13) STARTER SEALING PLATE(1-14) STARTER LOCK(1-15) SCREW(1-16) COLLAR, 4-6-21(1-17) STARTER LOCK SPRING(1-18) STARTER LOCK CAM(1-19) SCREW(1-20) WASHER(1-21) COLLAR, 6.1-8-6.5(1-22) STARTER LOCK CAM SPRING(1-23) ROD SNAP, 3.5-2(2) STARTER LOCK ROD(3) ROD SNAP, 3.5-2(4) BOLT(5) SPRING WASHER(6) CLAMP, 6.5-47.5P(7) CAUTION DECAL



Parts List
2005 :: 5 HP :: 4 Stroke Nissan NSF5B :: RECOIL STARTER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECOIL STARTER 3R1050900M 3R1-05090-0 6A2 #03506~ / 5A2 #21292~ / 4A2 #12518~ $115.18 1
(1-1) STARTER CASE 3R1051050M 3R1-05105-0 6A2 #03506~ / 5A2 #21292~ / 4A2 #12518~ $44.80 1
(1-2) STARTER SPRING (T=0.6) (OLD) 3R1050040M 3R1-05004-0 OR 3B2-05010-0 STARTER SPRING SET $16.24 1
(1-3) STARTER SPRING CASE 3R1051250M 3R1-05125-0 OR 3B2-05010-0 STARTER SPRING SET $5.99 1
(1-4) REEL 3R1051040M 3R1-05104-0 OR 3B2-05104-0 $43.73 1
(1-5) RETURN SPRING 3R1050120M 3H6-05012-0 6A2 #03506~ / 5A2 #21292~ / 4A2 #12518~ $2.22 2
(1-6) RATCHET 3R1050031M 3R1-05003-1 OR 3B2-05003-0 $3.14 2
(1-7) FRICTION SPRING 3R1050070M 369-05007-0 OR 369-05007-0 $1.59 1
(1-8) STARTER SHAFT BOLT 3R1051381M 3R1-05138-1 OR 3B2-05138-0 $3.04 1
(1-9) FRICTION PLATE 3R1050061M 3B2-05006-0 OR 3B2-05006-0 $6.97 1
(1-10) STARTER ROPE 3R1050130M 3R1-05013-0 ø 4.5-1620 OR 3B2-05013-0 $8.29 1
(1-11) STARTER HANDLE (OLD) 3R1050190M 3H6-05019-0 6A2 #03506~ / 5A2 #21292~ / 4A2 #12518~ $7.00 1
(1-12) ROPE ANCHOR 3R1051310M 3R1-05131-0 6A2 #03506~ / 5A2 #21292~ / 4A2 #12518~ $4.78 1
(1-13) STARTER SEALING PLATE 3R1051160M 3B2-05116-0 OR 3B2-05116-0 $12.63 1 Sold Out View More Details
(1-14) STARTER LOCK (GRAY) (OLD) 3R1052520M 3R1-05252-0 OR 338-05252-0 $2.16 1
(1-15) SCREW 9215035430M 921503-5430 $0.93 1
(1-16) COLLAR 4-6-21 3R1052550M 3R1-05255-0 OR 338-05255-0 $1.85 1
(1-17) SPRING STARTER LOCK 3R1052160M 338-05216-0 OR 338-05216-0 $1.27 1
(1-18) STARTER LOCK CAM 3R1052530M 3R1-05253-0 OR 338-05253-2 $1.27 1
(1-19) SCREW 9215037616M 921503-7616 $1.36 1
(1-20) WASHER 9401130600M 940113-0600 $0.83 1
(1-21) COLLAR 6.1-8-6.5 3R1052150M 3R1-05215-0 6A2 #03506~ / 5A2 #21292~ / 4A2 #12518~ $2.08 1
(1-22) STARTER LOCK CAM SPRING 3R1052580M 3R1-05258-0 6A2 #03506~ / 5A2 #21292~ / 4A2 #12518~ $1.27 1
(1-23) ROD SNAP 3.5-2 3R1052230M 3R1-05223-0 OR 345-05223-1 $1.45 1 Sold Out View More Details
(2) STARTER LOCK ROD 3H6052170M 3H6-05217-0 $8.83 1
(3) ROD SNAP 3.5-2 345052231M 345-05223-1 $1.45 1
(4) BOLT 9101140623M 910114-0623 $0.65 3
(5) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(6) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(7) CAUTION DECAL B 3R0721810M 3R0-72181-0 6A2 #03506~ / 5A2 #21292~ / 4A2 #12518~ $3.85 1
