8. TILLER HANDLE & THROTTLE

Click Here for Microfiche Usage Tip

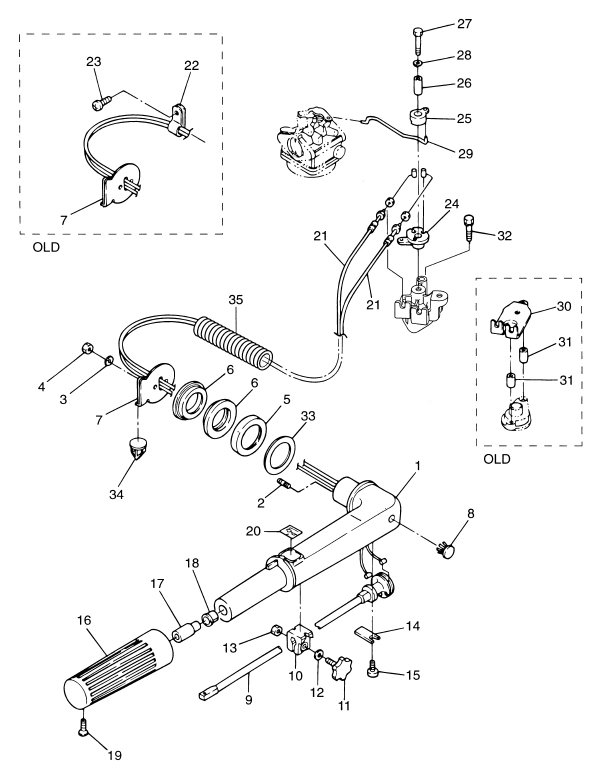

(1) TILLER HANDLE(2) STUD BOLT(3) SPRING WASHER(4) NUT(5) TILLER HANDLE SPACER(6) TILLER HANDLE BUSHING(6) TILLER HANDLE BUSHING(7) TILLER HANDLE STOPPER(7) TILLER HANDLE STOPPER(8) PLASTIC RIVET, 6.5(9) THROTTLE SHAFT(10) GRIP FRICTION PIECE(11) ADJUSTING SCREW(12) WASHER(13) NUT(14) THROTTLE SHAFT SUPPORTER(15) SCREW(16) GRIP(17) THROTTLE SHAFT DAMPER(18) BUSHING, 14-15.8-7(19) SCREW(20) THROTTLE DECAL(21) THROTTLE CABLE (NEW)(21) THROTTLE CABLE (NEW)(21) THROTTLE CABLE (OLD)(21) THROTTLE CABLE (OLD)(22) CLAMP, 6.5-14L(23) SCREW(24) THROTTLE DRUM(25) THROTTLE OPENER(26) COLLAR, 6.5-10.5-22.6(27) BOLT(28) WASHER 6-16-1.5(29) THROTTLE ROD(30) THROTTLE CABLE BRACKET(31) BRACKET COLLAR(31) BRACKET COLLAR(32) BOLT(33) WASHER, 30-45-1(34) ANCHOR CLIP, 6.5(35) PROTECTOR



Parts List
2005 :: 5 HP :: 4 Stroke Nissan NSF5B :: TILLER HANDLE & THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE 3H6Q630110 3H6Q63011-0 $0.00 1 Sold Out View More Details
(2) STUD BOLT 3B2631041M 3B2-63104-1 $3.27 2
(3) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(4) NUT 9301130600M 930113-0600 OR 930103-0600 $0.84 2
(5) TILLER HANDLE SPACER 3H6630260M 3H6-63026-0 $3.51 1
(6) TILLER HANDLE BUSHING 3H6631020M 3H6-63102-0 $3.37 2
(7) TILLER HANDLE STOPPER 3H6631030M 3H6-63103-0 $5.76 1
(8) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(9) THROTTLE SHAFT 3B2630410M 3B2-63041-0 $18.64 1
(10) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(11) ADJUSTING SCREW 3B2630340M 3B2-63034-0 $4.19 1
(12) WASHER 9401130600M 940113-0600 OR 940103-0600 $0.83 2
(13) NUT 9301130600M 930113-0600 OR 930103-0600 $0.84 1
(14) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(15) SCREW 9215130612M 921513-0612 OR 921503-0612 $0.93 1
(16) GRIP 369630121M 369-63012-1 $29.88 1
(17) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 $1.85 1 Sold Out View More Details
(18) BUSHING 14-15.8-7 3H6635100M 3H6-63510-0 OLD PART NO. 3H6-63506-0 $1.27 1
(19) SCREW 9208130518M 920813-0518 OR 920803-0518 $1.59 1
(20) THROTTLE DECAL 369720191M 369-72019-1 $1.20 1
(21) THROTTLE CABLE (NEW) 3H6636001M 3H6-63600-0 OUTER L=476 #016455XC~ $14.50 2
(21) THROTTLE CABLE (OLD) 3H6636000M 3H6-63600-0 OUTERL=526 ~#012402XC $14.50 0
(21) THROTTLE CABLE (NEW) 3H6636001M 3H6-63600-0 OUTER L=476 #016455XC~ $14.50 2
(21) THROTTLE CABLE (OLD) 3H6636000M 3H6-63600-0 OUTERL=526 ~#012402XC $14.50 0
(22) CLAMP 6.5-14L 345069150M 345-06915-0 ~#012402XC $4.63 0
(23) SCREW 9215130612M 921513-0612 ~#012402XC $0.93 0
(24) THROTTLE DRUM 3H6636110M 3H6-63611-0 $3.55 1
(25) THROTTLE OPENER 3H6636120M 3H6-63612-0 $1.71 1
(26) COLLAR 6.5-10.5-22.6 3H6636180M 3H6-63618-0 $4.28 1
(27) BOLT 9101036635M 910103-6635 $1.09 1 Sold Out View More Details
(28) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 1 Sold Out View More Details
(29) THROTTLE ROD 3H6636170M 3H6-63617-0 $3.85 1
(30) THROTTLE CABLE BRACKET 3H6636150M 3H6-63615-0 6A2~#03505 5A2~#21291 4A2~#12517 $0.00 0 Sold Out View More Details
(31) COLLAR 6.5-10.5-10 3H6636191M 3H6-63619-1 6A2~#03505 5A2~#21291 4A2~#12517 $4.19 0
(32) BOLT 9101036645M 910103-6645 $1.18 2
(33) WASHER 30-45-1 3B2631080M 3B2-63108-0 $1.41 1
(34) ANCHOR CLIP 6.5 3H6671540M 3H6-67154-0 $1.39 1
(35) PROTECTOR 3H6061330M 3H6-06133-0 #016455XC~ $2.53 1
