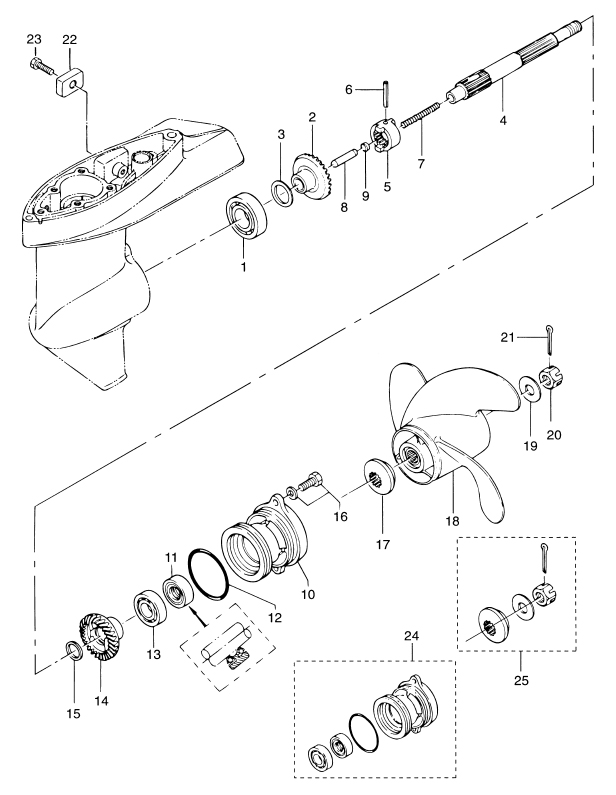

12. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip
(1) BALL BEARING, 6004(2) BEVEL GEAR "A"(3) SHIM, 21-28-0.1(3) SHIM, 21-28-0.15(4) PROPELLER SHAFT(5) CLUTCH(6) SPRING PIN, 3.5-28(7) CLUTCH SPRING(8) CLUTCH PUSH ROD(9) CLUTCH SPRING RETAINER(10) PROPELLER SHAFT HOUSING(11) OIL SEAL, 15-28-10(12) O-RING, 3.2-47(13) BALL BEARING 6002(14) BEVEL GEAR "C"(15) WASHER, 15.2-19-1.9(16) BOLT(17) PROPELLER THRUST HOLDER(18) PROPELLER (6) 3X7.9X6.0(18) PROPELLER (7) 3X7.7X7(18) PROPELLER (8) 3X7.7X8(18) PROPELLER (9) 3X7.9X9(19) WASHER, 10.5-28-2(20) PROPELLER NUT(21) SPLIT PIN, 3-18(22) ANODE(23) BOLT(24) PROPELLER SHAFT HOUSING ASSY(25) PROPELLER HARDWARE KIT



Parts List
2005 :: 4 HP :: 4 Stroke Nissan NSF4B :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BALL BEARING 6004 960106004M 9601-0-6004 $10.98 1
(2) BEVEL GEAR A 369640102M 369-64010-2 $44.34 1
(3) SHIM 21-28-.01 369640140M 369-64014-0 $1.98 0
(3) SHIM 21-28-0.15 369640150M 369-64015-0 $1.98 0
(4) PROPELLER SHAFT 369642111M 369-64211-1 $132.17 1
(5) CLUTCH 301642151M 301-64215-1 $24.53 1
(6) SPRING PIN 3.5-28 301642170M 301-64217-0 $1.41 1
(7) CLUTCH SPRING 393642210M 393-64221-0 $1.73 1
(8) CLUTCH PUSH ROD 369642230M 369-64223-0 $4.83 1
(9) CLUTCH SPRING RETAINER 369642220M 369-64222-0 $1.85 1 Sold Out View More Details
(10) PROPELLER SHAFT HOUSING 369Q601011 369Q60101-1 $33.81 1 Sold Out View More Details
(11) OIL SEAL 15-28-10 369601110M 369-60111-0 $4.38 1
(12) O-RING 3.2-47 345650150M 345-65015-0 $1.50 1
(13) BALL BEARING 6002 960106002M 9601-0-6002 $10.98 1
(14) BEVEL GEAR C 369640302M 369-64030-2 $44.34 1
(15) WASHER 15.2-19-1.9 369640320M 369-64032-0 $3.27 1
(16) BOLT 9101135616M 910113-5616 $1.15 2
(17) PROPELLER THRUST HOLDER 3AS642300M 369-64231-1 OLD PART NO. 369-64231-1 $8.63 1
(18) PROPELLER (6) 3X7.9X6.0 369W645120 369W64512-0 $178.02 1
(18) PROPELLER (7) 3X7.7X7 3R1W645140 3R1W64514-0 4B STD FOR TRANSOM S L $85.10 1
(18) PROPELLER (8) 3X7.7X8 3R1W645160 3R1W64516-0 6B 5B STD FOR TRANSOM S L $87.72 1
(18) PROPELLER (9) 3X7.9X9 369W645181 369W64518-1 $88.69 1
(19) WASHER 10.5-28-2 369641240M 369-64124-0 $4.20 1
(20) PROPELLER NUT 369641210M 369-64121-0 $8.80 1
(21) SPLIT PIN 3-18 9515030318M 951503-0318 $0.95 1
(22) ANODE 3H6602180M 3H6-60218-0 $5.53 1
(23) BOLT 9101030616M 910113-0616 $0.98 1
(24) PROPELLER SHAFT HOUSING ASSY 369Q873231 369Q87323-1 $75.08 1
(25) PROPELLER HARDWARE KIT 3H6873260M 3H6-87326-0 $14.22 1
