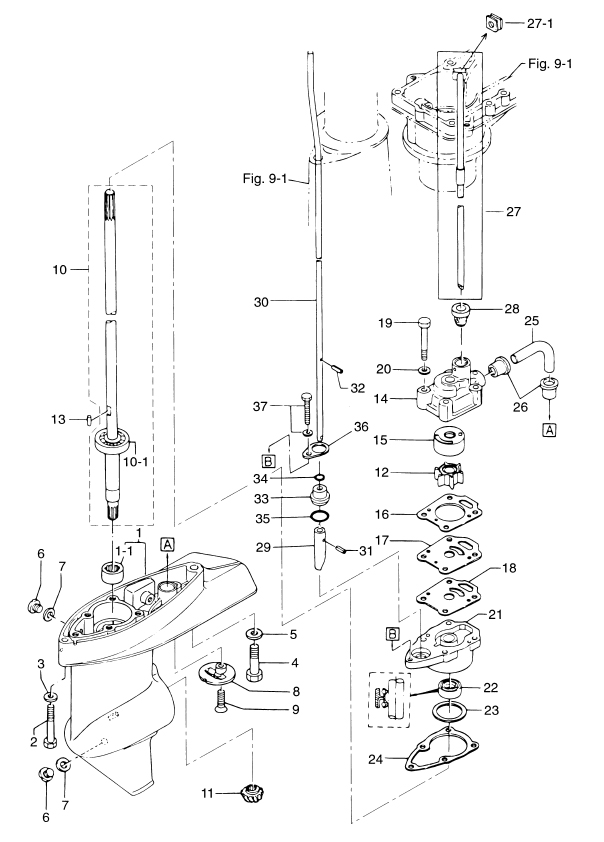

11. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip
(1) GEAR CASE(1-1) NEEDLE BEARING, 14-20-12(2) BOLT(3) WASHER(4) BOLT(5) WASHER(6) OIL PLUG(6) OIL PLUG(7) GASKET, 8.1-15-1(7) GASKET, 8.1-15-1(8) WATER STRAINER(9) SCREW(10) DRIVE SHAFT "S"(10) DRIVE SHAFT "L"(10) DRIVE SHAFT "UL"(10-1) BALL BEARING, 6300(11) BEVEL GEAR "B"(12) WATER PUMP IMPELLER(13) WATER PUMP IMPELLER KEY(14) PUMP CASE (UPPER)(15) PUMP CASE LINER(16) PUMP CASE GASKET (UPPER)(17) WATER PUMP GUIDE PLATE(18) PUMP GUIDE PLATE GASKET(19) BOLT(20) WASHER(21) PUMP CASE (LOWER)(22) OIL SEAL, 10-24-8(23) SHIM, 26.5-34.8-0.1(23) SHIM, 26.5-34.8-0.15(24) PUMP CASE GASKET (LOWER)(25) LOWER WATER PIPE(26) LOWER WATER PIPE SEAL(27) WATER PIPE "S"(27) WATER PIPE "L"(27) WATER PIPE "UL"(27-1) WATER PIPE GROMMER (UPPER)(28) WATER PIPE SEAL (LOWER)(29) CLUTCH CAM(30) CAM ROD "S"(30) CAM ROD "L"(30) CAM ROD "UL"(31) SPRING PN, 3-10(32) SPRING PN, 3-12(33) CAM ROD BUSHING(34) O-RING, 2.5-4.9(35) O-RING, 2.4-15.4(36) CAM ROD BUSHING STOPPER(37) BOLT



Parts List
2005 :: 4 HP :: 4 Stroke Nissan NSF4B :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE S & L 369Q600002 369Q60000-2 $139.87 1
(1-1) NEEDLE BEARING 14-20-12 369602110M 369-60211-0 $26.40 1
(2) BOLT 9161130645M 916113-0645 $2.58 1
(3) WASHER 9401130600M 940113-0600 $0.83 1
(4) BOLT 9161130835M 916113-0835 $2.01 1
(5) WASHER 9401130800M 940113-0800 $0.84 1
(6) WATER PLUG 332600052M 332-60005-2 $5.07 2
(7) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(8) WATER STRAINER 369602060M 369-60206-0 $3.87 1
(9) SCREW 9218030620M 921803-0620 $1.06 1
(10) DRIVE SHAFT S 369643010M 369-64301-0 FOR TRANSOM S $131.17 1
(10) DRIVE SHAFT L 369643020M 369-64302-0 FOR TRANSOM L $138.07 1
(10) DRIVE SHAFT UL 369643030M 369-64303-0 FOR TRANSOM UL $151.86 1
(10-1) BALL BEARING 6300 960106300M 9601-0-6300 $11.82 1
(11) BEVEL GEAR B 369640202M 369-64020-2 $20.68 1
(12) WATER PUMP IMPELLER 369650211M 369-65021-1 $7.43 1
(13) WATER PUMP IMPELLER KEY 369650220M 369-65022-0 $1.50 1
(14) PUMP CASE (UPPER) 369650160M 369-65016-0 $27.72 1
(15) PUMP CASE LINER 369650110M 369-65011-0 $5.29 1
(16) PUMP CASE GASKET (UPPER) 369650180M 369-65018-0 $1.82 1
(17) WATER PUMP GUIDE PLATE 369650250M 369-65025-0 $2.88 1
(18) PUMP GUIDE PLATE GASKET 369650290M 369-65029-0 $1.85 1
(19) BOLT 9161130645M 916113-0645 $2.58 4
(20) WASHER 9401130600M 940113-0600 $0.83 4
(21) PUMP CASE (LOWER) 369650171M 369-65017-1 $29.88 1
(22) OIL SEAL 10-24-8 369602230M 369-60223-0 $4.03 1
(23) SHIM 26.5-34.8-0.15 369640230M 369-64081-1 $0.00 0 Sold Out View More Details
(23) SHIM 26.5-34.8-0.15 369640230M 369-64081-1 $0.00 0 Sold Out View More Details
(24) PUMP CASE GASKET (LOWER) 369650200M 369-65020-0 $2.31 1
(25) LOWER WATER PIPE 369650350M 369-65035-0 $5.13 1
(26) LOWER WATER PIPE SEAL 369650360M 369-65036-0 $2.07 2
(27) WATER PIPE S 369651000M 369-65100-0 FOR TRANSOM S $17.77 1
(27) WATER PIPE L 369651100M 369-65110-0 FOR TRANSOM L $19.09 1
(27) WATER PIPE UL 369651200M 369-65120-0 FOR TRANSOM UL $20.02 1
(27-1) WATER PIPE GROMMER (UPPER) 369651950M 369-65195-0 $0.72 1
(28) WATER PIPE SEAL (LOWER) 369650140M 369-65014-0 $2.07 1
(29) CLUTCH CAM 369660110M 369-66011-0 $17.77 1
(30) CAM ROD S 369660120M 369-66012-0 FOR TRANSOM S $16.10 1
(30) CAM ROD L 369660130M 369-66013-0 FOR TRANSOM L $17.49 1
(30) CAM ROD UL 369660140M 369-66014-0 FOR TRANSOM UL $19.09 1
(31) SPRING PIN 3-10 9514070310M 951407-0310 $0.81 1
(32) SPRING PN 3-12 9514070312M 951407-0312 $0.86 1
(33) CAM ROD BUSHING 369660310M 369-66031-0 $3.39 1
(34) O-RING 2.5-4.9 369660211M 369-66021-1 $1.27 1
(35) O-RING 2.4-15.4 332660320M 332-66032-0 $1.41 1
(36) STOPPER 369660330M 369-66033-0 $2.07 1
(37) BOLT 9101135625M 910113-5625 $1.47 1
