10. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip

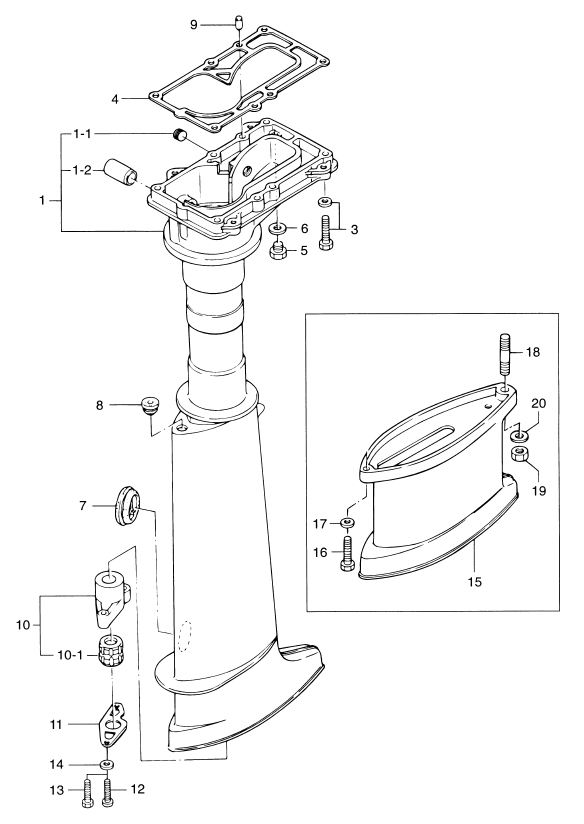

(1) DRIVE SHAFT HOUSING "S"(1) DRIVE SHAFT HOUSING "L"(1-1) EXHAUST PLUG(1-2) SHIFT LEVER BUSHING(3) BOLT(4) DRIVE SHAFT HOUSING GASKET(5) WATER PLUG(6) GASKET, 8.1-15-1(7) GROMMET, 29-3(8) CAM ROD GROMMET(9) DOWEL PIN, 6-12(10) DRIVE SHAFT BUSHING ASSY(10) DRIVE SHAFT BUSHING ASSY(10-1) DRIVE SHAFT BUSHING(10-1) DRIVE SHAFT BUSHING(11) DRIVE SHAFT BUSHING STOPPER(12) SCREW(13) BOLT, 5-25 PRE-COATED(14) WASHER(15) EXTENSION HOUSING "UL"(16) BOLT(17) WASHER(18) STUD BOLT(19) NUT(20) WASHER



Parts List
2005 :: 4 HP :: 4 Stroke Nissan NSF4B :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 3H6Q610200 3H6Q61020-0 FOR TRANSOM S $182.14 1
(1) DRIVE SHAFT HOUSING L 3H6Q610301 3H6Q61030-1 FOR TRANSOM L $211.69 1
(1-1) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(1-2) SHIFT LEVER BUSHING 301610210M 301-61021-0 $0.00 1 Sold Out View More Details
(3) BOLT 9101135630M 910113-5630 $1.15 6 Sold Out View More Details
(4) DRIVE SHAFT HOUSING GASKET 3H6610120M 3H6-61012-0 $5.92 1
(5) WATER PLUG 9106130808M 910613-0808 $2.12 1
(6) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 1
(7) GROMMET 29-3 369610160M 369-61016-0 $3.27 1
(8) GROMMET 369660431M 369-66043-1 $1.57 1
(9) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(10) DRIVE SHAFT BUSHING ASSY 369643312M 369-64331-1 FOR TRANSOM L $41.45 1
(10) DRIVE SHAFT BUSHING ASSY 3AS643310M 3AS-64331-0 FOR TRANSOM UL $59.62 1
(10-1) DRIVE SHAFT BUSHING 369600030M 369-60003-0 FOR TRANSOM L $20.22 1 Sold Out View More Details
(10-1) DRIVE SHAFT BUSHING 3AS600030M 3AS-60003-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(11) DRIVE SHAFT BUSHING STOPPER 369643320M 369-64332-0 $3.39 1 Sold Out View More Details
(12) SCREW 9215130510M 921513-0510 FOR TRANSOM S $0.81 2
(13) BOLT 5-25 PRE-COATED 3AS024200M 3AS-02420-0 FOR TRANSOM L UL $1.85 2
(14) WASHER 9401030500M 940103-0500 $0.53 2
(15) EXTENSION HOUSING UL 369Q611101 369Q61110-1 FOR TRANSOM UL $82.17 1
(16) BOLT 9161130625M 916113-0625 FOR TRANSOM UL $1.04 1
(17) WASHER 9401130600M 940113-0600 FOR TRANSOM UL $0.83 1
(18) STUD BOLT 9152130825M 915213-0825 FOR TRANSOM UL $2.62 1
(19) NUT 9301130800M 930113-0800 FOR TRANSOM UL $1.99 1 Sold Out View More Details
(20) WASHER 9401130800M 940113-0800 FOR TRANSOM UL $0.84 1
