6. MAGNETO (NEW)

Click Here for Microfiche Usage Tip

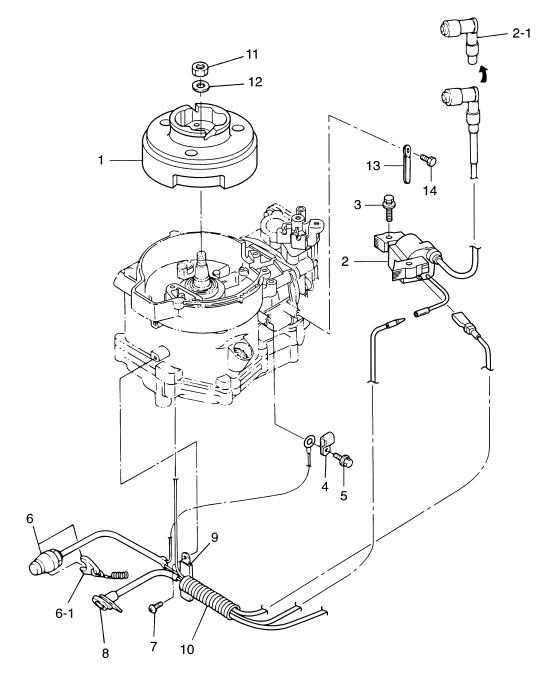

(1) FLYWHEEL CUP, MF54 (MARK 48)(2) IGNITOR(2-1) PLUG CAP (WITH RESISTANCE)(3) BOLT(4) CLAMP, 6.5-14L(5) BOLT(6) STOP SWITCH(6-1) STOP SWITCH LANYARD(7) SCREW(8) WARNING LAMP(9) CLAMP, 6.5-67P(10) WIRE HARNESS PROTECTOR(11) MAGNETOR NUT (12P-1.25)(12) WASHER(13) CLAMP, 6.5-47.5P(14) BOLT



Parts List
2005 :: 4 HP :: 4 Stroke Nissan NSF4B :: MAGNETO (NEW)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL CUP MF54 (MARK 48) 3AS060090M 3AS-06009-0 FOR WITH OUT ALTERNATOR F6B/5B/4B # 023742XE~ $0.00 1 Sold Out View More Details
(2) IGNITOR 3AS060470M 3AS-06047-0 F6B/5B/4B #020184XE~ $142.35 1
(2-1) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 OLD PART NO. 3H6-06921-0 $25.93 1
(3) BOLT 9101035630M 910113-5630 $1.15 2
(4) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(5) BOLT 9101030612M 910113-0612 $0.84 1
(6) STOP SWITCH 3AS068700M 3AS-06870-0 #020184XE~ F6B/5B/4B $45.96 1
(6-1) STOP SWITCH LANYARD 353068210M 353-06821-0 $16.48 1 Sold Out View More Details
(7) SCREW 9215030612M 921513-0612 $0.93 1
(8) WARNING LAMP 3H6710400M 3H6-71040-0 $19.55 1
(9) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 2
(10) PROTECTOR 3H6061330M 3H6-06133-0 $2.53 1
(11) NUT 12-P1.25 369001320M 369-00132-0 $1.61 1
(12) WASHER 9401211200M 940121-1200 $0.97 1
(13) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(14) BOLT 9101035612M 910103-5612 $1.07 1
