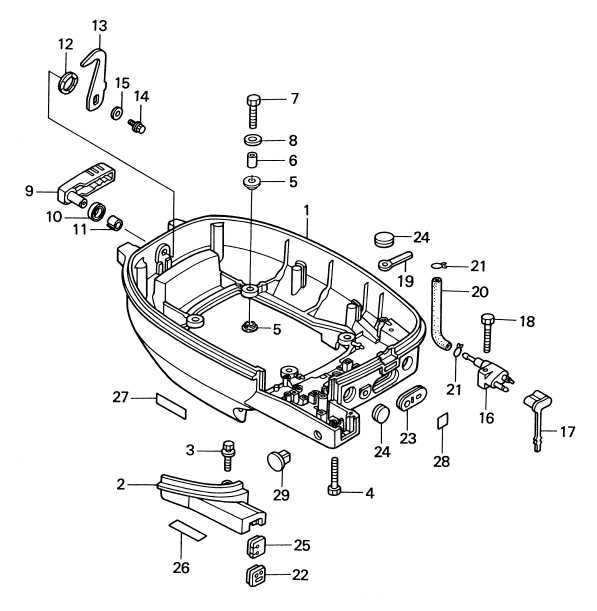

22. MOTOR COVER LOWER

Click Here for Microfiche Usage Tip
(1) LOWER MOTOR COVER(2) COVER, CABLE(3) BOLT(4) BOLT(5) MOUNT RUBBER(5) MOUNT RUBBER(6) SPACER, 6.2 - 9 -15.7(7) BOLT(8) WASHER, 6.5 - 21 -1(9) HOOK LEVER(10) SEAL RING, HOOK LEVER(11) BUSHING,14 -16.5 -17.7(12) WAVE WASHER(13) COVER HOOK(14) BOLT(15) WASHER, 6 -16 -1.5(16) FUEL CONNECTOR (ENGINE, MALE)(17) PROTECTOR, FUEL CONNECTOR(18) BOLT(19) CLAMP, 6.5 - 87P(20) FUEL PIPE(21) CLIP, o10(21) CLIP, o10(22) GROMMET, CONTROL CABLE(23) GROMMET, BATTERY CORD(24) GROMMET,17 - 2.7(24) GROMMET,17 - 2.7(25) GROMMET, THROTTLE CABLE(26) DECAL, F, N, R (SHIFT MARK)(27) LABEL, STORAGE(28) LABEL, OIL PRESSURE(29) PLUG



Parts List
2002 :: 30 HP :: 4 Stroke Tohatsu MFS30A :: MOTOR COVER LOWER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) LOWER MOTOR COVER 3R0S671000 3R0S67100-0 PTT TYPE FIG. 21 $0.00 1 Sold Out View More Details
(2) COVER CABLE 3R0S761180 3R0S76118-0 $37.55 1
(3) BOLT 9101135635M 910113-5635 $1.96 1 Sold Out View More Details
(4) BOLT 9101135650M 910113-5650 $0.00 3 Sold Out View More Details
(5) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(6) SPACER 6.2-9-15.7 346671140M 346-67114-0 $1.76 4
(7) BOLT 9101130630M 910113-0630 $1.21 4
(8) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(9) HOOK LEVER 3R3S671410 3R3S67141-0 $15.25 1
(10) SEAL RING 338671470M 338-67147-0 $1.85 1
(11) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 $1.66 1
(12) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(13) COVER HOOK 3R3671420M 3R3-67142-0 $7.05 1
(14) BOLT 9101135612M 910113-5612 OR 910103-5612 $1.07 1
(15) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(16) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(17) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(18) BOLT 9101135630M 910113-5630 OR 910103-5630 $1.15 1 Sold Out View More Details
(19) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 $1.53 1
(20) FUEL PIPE 98AB50300M 98AB-5-0300 $11.41 1
(21) CLIP ø10 338022150M 338-02215-0 $1.41 2
(22) GROMMET CONTROL CABLE 3R0837320M 3R0-83732-0 FOR EP & EPT $4.15 1
(23) GROMMET BATTERY CORD 353671620M 353-67162-0 $3.31 1
(24) GROMMET 17-2.7 345671170M 345-67117-0 1 FOR EP $2.31 2 Sold Out View More Details
(25) GROMMET THROTTLE CABLE 3R0636210M 3R0-63621-0 FOR MF & EF $2.74 1
(26) DECAL F N R (SHIFT MARK) 3R3675780M 3R3-67578-0 FOR MF & EF $2.31 1
(27) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
(28) OIL PRESSURE DECAL 3H6761990M 3H6-76199-0 $0.00 1 Sold Out View More Details
(29) PLUG 3B7010460M 3B7-01046-0 FOR EP & EPT $1.41 1
