19. SWIVEL BRACKET

Click Here for Microfiche Usage Tip

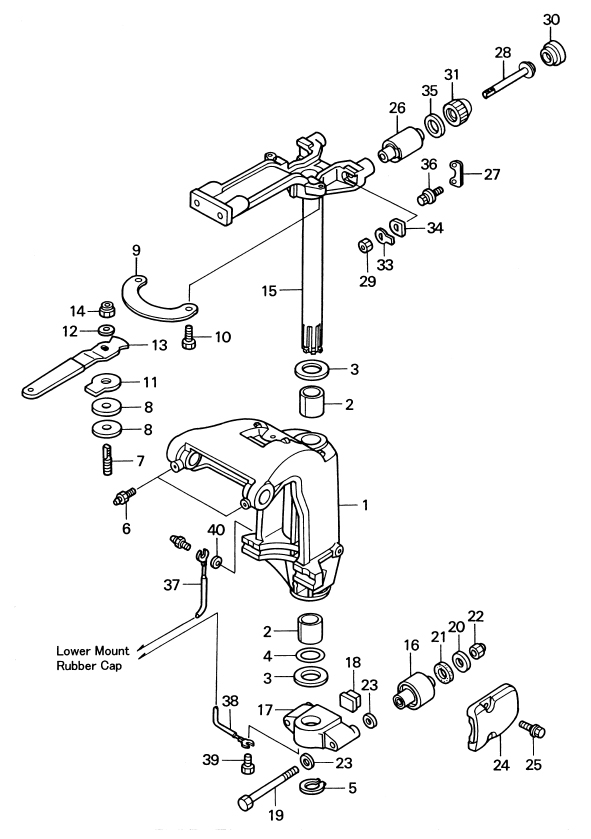

(1) SWIVEL BRACKET(2) BUSHING, 30 - 36 - 41(2) BUSHING, 30 - 36 - 41(3) THRUST PLATE(3) THRUST PLATE(4) O-RING, 3.5 - 29.7(5) C-RING, D=28(6) GREASE NIPPLE(7) BOLT, CO-PILOT(8) DISK, CO-PILOT(9) PLATE, CO-PILOT(10) BOLT(11) WASHER, CO-PILOT(12) WASHER, 8.1- 20 - 0.8(13) HANDLE, CO-PILOT(14) NYLON NUT (2T), M8 P1.25(15) STEERING SHAFT ASSY(16) LOWER MOUNT RUBBER(17) MOUNT BRACKET(18) DAMPER RUBBER(19) BOLT, LOWER MOUNT RUBBER(20) WASHER,13 - 34 - 3(21) DAMPER RUBBER, 21- 36 - 5(22) NYLON NUT, 12 P1.25(23) WASHER(23) WASHER(24) CAP, LOWER MOUNT RUBBER(25) BOLT(26) UPPER MOUNT RUBBER(27) RETAINER, MOUNT RUBBER(28) BOLT, MOUNT RUBBER(29) NUT(30) UPPER DAMPER RUBBER A(31) UPPER DAMPER RUBBER B(33) LOCK PLATE, MOUNT RUBBER(34) WASHER(35) UPPER LOCK PLATE(36) BOLT(37) GROUND CABLE(38) GROUND CABLE(39) BOLT(40) WASHER



Parts List
2002 :: 30 HP :: 4 Stroke Tohatsu MFS30A :: SWIVEL BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWIVEL BRACKET 3R0S623100 3R0S62310-0 $0.00 1 Sold Out View More Details
(2) BUSHING 30 - 36 - 41 353624170M 353-62417-0 $5.98 2 Sold Out View More Details
(3) THRUST PLATE 353624231M 353624230M $3.92 2
(4) O-RING 3.5 - 29.7 353624150M 353-62415-0 $2.53 1
(5) C-RING D=28 9451032800M 945103-2800 $1.06 1
(6) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(7) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR MF & EF $6.74 1
(8) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR MF & EF $7.91 2
(9) PLATE CO-PILOT 3R3624470M 3R3-62447-0 FOR MF & EF $4.28 1
(10) BOLT 9101135616M 910113-5616 FOR MF & EF $1.15 2
(11) WASHER CO-PILOT 3R3624481M 3R3-62448-1 FOR MF & EF $5.59 1
(12) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR MF & EF $1.48 1
(13) HANDLE CO-PILOT 3R3624410M 3R3-62441-0 FOR MF & EF $13.14 1
(14) NYLON NUT (2T) M8 P1.25 3V5624420M 3V5-62442-0 FOR MF & EF $5.25 1
(15) STEERING SHAFT ASSY 3R0S620100 3R0S62010-0 $271.86 1
(16) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $46.05 2
(17) MOUNT BRACKET 3R0S614110 3R0S61411-0 $127.61 1
(18) DAMPER RUBBER 3C8613360M 3C8-61336-0 $5.69 1
(19) BOLT LOWER MOUNT RUBBER 3R0613210M 3R0-61321-0 $16.93 2
(20) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(21) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(22) NYLON NUT 12 P1.25 3R0613240M 3R0-61324-0 $6.47 2 Sold Out View More Details
(23) WASHER 9402131200M 940213-1200 $2.10 4
(24) CAP LOWER MOUNT RUBBER 3R0S613420 3R0S61342-0 $28.48 2
(25) BOLT 9101135620M 910113-5620 $1.30 4
(26) UPPER MOUNT RUBBER 3R0613010M 3R0-61301-0 $26.54 2
(27) RETAINER MOUNT RUBBER 3R0613121M 3R0-61312-1 $1.71 2
(28) BOLT MOUNT RUBBER 3R0613070M 3R0-61307-0 25A #20225~ / 30A #30212~ $10.64 2
(29) NUT 9301031000M 930103-1000 $1.59 2
(30) UPPER DAMPER RUBBER A 3R0613330M 3R0-61333-0 $1.62 2
(31) UPPER DAMPER RUBBER B 3R0613371M 3R0-61337-1 25A #20794~ / 30A #30556~ $1.71 2
(33) LOCK PLATE MOUNT RUBBER 3R0613230M 3R0-61323-0 $1.93 2
(34) WASHER 345613222M 345-61322-2 $1.85 2
(35) UPPER LOCK PLATE 3R0613350M 3R0-61335-0 $1.93 2
(36) BOLT 9101130620M 910113-0620 $1.04 2
(37) GROUND CABLE 3C8623960M 3C8-62396-0 $4.56 1
(38) GROUND CABLE 3A3623960M 3A3-62396-0 $17.85 1
(39) BOLT 9101135612M 910113-5612 $1.07 1
(40) WASHER 9401030600M 940103-0600 $0.70 1
