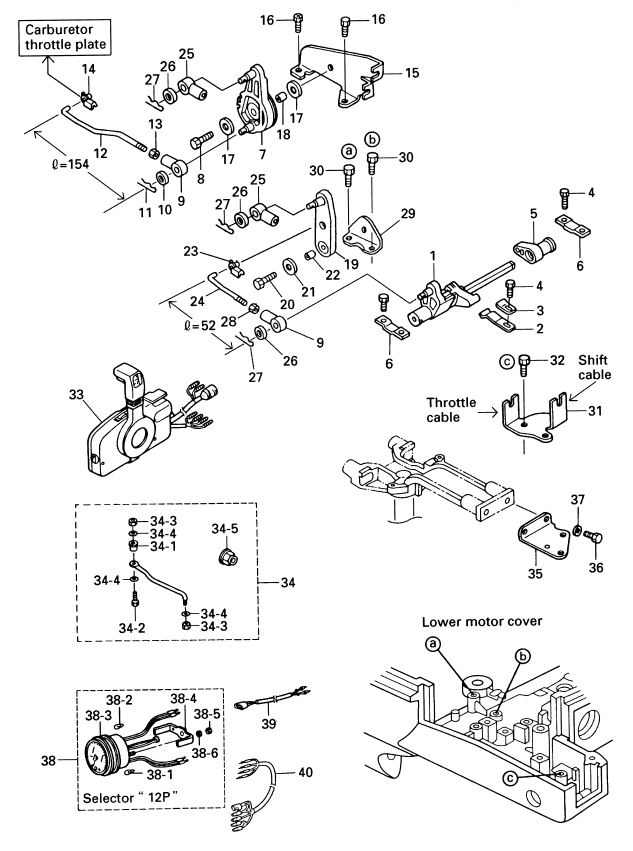

17. SHIFT

Click Here for Microfiche Usage Tip
(1) SHIFT LEVER SHAFT ASSY(2) STOPPER, SHIFT LEVER(3) PLATE, SHIFT LEVER(4) BOLT(4) BOLT(5) LEVER, SHIFT ROD(6) PLATE, SHIFT LEVER SHAFT(6) PLATE, SHIFT LEVER SHAFT(7) THROTTLE DRUM(8) BOLT(9) CABLE JOINT(9) CABLE JOINT(10) WASHER, 8.5 -18 -1.6(11) R-PIN, D=8(12) THROTTLE LINK ROD(13) NUT(14) ROD SNAP, 5 - 3(15) BRACKET, THROTTLE CABLE(16) BOLT(16) BOLT(17) WASHER, 6 -16 -1.5(17) WASHER, 6 -16 -1.5(18) COLLAR, 6.2 - 9 - 9.3(19) SHIFT ARM(20) BOLT(21) WASHER, 6 -16 -1.5(22) COLLAR, 6.2 - 9 - 9.3(23) ROD SNAP, 5 - 3(24) LINK ROD, 4.5 - 40.5(25) CABLE JOINT(25) CABLE JOINT(26) WASHER, 8.5 -18 -1.6(26) WASHER, 8.5 -18 -1.6(26) WASHER, 8.5 -18 -1.6(27) R-PIN, D=8(27) R-PIN, D=8(27) R-PIN, D=8(28) NUT(29) BRACKET, SHIFT ARM(30) BOLT(30) BOLT(31) BRACKET, CABLE(32) BOLT(33) REMOTE CONTROL BOX (RC5B)(33) REMOTE CONTROL BOX (RC8B)(34) DRAG LINK H ASSY(34-1) SPACER, DRAG LINK H(34-2) BOLT, 3/8 - 50(34-3) NYLON NUT, 3/8(34-3) NYLON NUT, 3/8(34-4) WASHER, 9.6 -18 - 2(34-4) WASHER, 9.6 -18 - 2(34-4) WASHER, 9.6 -18 - 2(34-5) SEAL RING, DRAG LINK(35) STEERING HOOK PLATE(36) BOLT(37) WASHER(38) TACHOMETER(38-1) BULB, OIL 12V -1.7W(38-2) BULB, METER 12V -1.7W(38-3) DAMPER, METER(38-4) PLATE, FITTING(38-5) NUT(38-6) SPRING WASHER(39) LEAD WIRE, TACHOMETER(40) LEAD WIRE, METER



Parts List
2002 :: 30 HP :: 4 Stroke Tohatsu MFS30A :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHIFT LEVER SHAFT ASSY 3R0661300M 3R0-66130-0 $15.04 1
(2) STOPPER SHIFT LEVER 3C8661120M 3B2-66113-0 $1.89 1
(3) SHIFT LEVER STOPPER 3C8661160M 3C8-66116-0 $2.53 1
(4) BOLT 9101035612M 910103-5612 7 FOR MF & EF / 5 FOR EP & EPT $1.07 7
(5) LEVER SHIFT ROD 3R0662250M 3R0-66225-0 $3.11 1
(6) PLATE SHIFT LEVER SHAFT 3R3661450M 3R3-66145-0 3 FOR MF & EF / 2 FOR EP & EPT $2.25 3
(7) THROTTLE DRUM 3R0636110M 3R0-63611-0 $0.00 1 Sold Out View More Details
(8) BOLT 9101130620M 910113-0620 OR 910103-0620 $1.04 1
(9) CABLE JOINT 3R0837150M 3R0-83715-0 1 FOR MF & EF / 2 FOR EP & EPT $2.40 2
(10) WASHER 8.5-18-1.6 353837190M 353-83719-0 $2.39 1
(11) SNAP PIN D=8 9516030800M 951603-0800 $0.70 1
(12) THROTTLE LINK ROD 3R0636170M 3R0-63617-0 $0.00 1 Sold Out View More Details
(13) NUT 9301030500M 930103-0500 $0.86 1
(14) ROD SNAP 5 - 3 3B7637330M 3B7-63733-0 $1.41 1
(15) BRACKET THROTTLE CABLE 3R0635080M 3R0-63508-0 $19.85 1
(16) BOLT 9101035612M 910103-5612 $1.07 2
(17) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 2 Sold Out View More Details
(18) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 1
(19) SHIFT ARM 3R0661220M 3R0-66122-0 FOR EP & EPT $0.00 1 Sold Out View More Details
(20) BOLT 9101135620M 910113-5620 OR 910103-5620 / FOR EP & EPT $1.30 1
(21) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 / FOR EP & EPT $1.59 2 Sold Out View More Details
(22) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 FOR EP & EPT $4.06 1
(23) ROD SNAP 5-3 3C8637330M 3C8-63733-0 FOR EP & EPT $1.45 1
(24) LINK 4.5 - 40.5 3R0637090M 3R0-63709-0 FOR EP & EPT $2.10 1
(25) CABLE JOINT 3B7837150M 3B7-83715-0 FOR EP & EPT $4.83 2 Sold Out View More Details
(26) WASHER 8.5-18-1.6 353837190M 353-83719-0 FOR EP & EPT $2.39 3
(27) SNAP PIN D=8 9516030800M 951603-0800 FOR EP & EPT $0.70 3
(28) NUT 9301060500M 930106-0500 FOR EP & EPT $0.86 1
(29) BRACKET SHIFT ARM 3R0661260M 3R0-66126-0 FOR EP & EPT $11.51 1
(30) BOLT 9101135616M 910113-5616 OR 910103-5616 / FOR EP & EPT $1.15 2
(31) BRACKET CABLE 3R0838200M 3R0-83820-0 FOR EP & EPT $8.12 1
(32) BOLT 9101135616M 910113-5616 OR 910103-5616 / FOR EP & EPT $1.15 1
(33) REMOTE CONTROL BOX (RC5B) 3B7843401M 3B7-84340-1 TOHATSU / FOR EP $456.39 1
(33) REMOTE CONTROL BOX (RC8B) 3B1N843403 3B1N843403 NISSAN / FOR EP $0.00 1 Sold Out View More Details
(34) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 FOR EP & EPT $154.19 1
(34-1) SPACER 3E0849140M 3E0-84914-0 FOR EP & EPT $7.32 1
(34-2) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 FOR EP & EPT $11.28 1
(34-3) NYLON NUT 3/8 353849180M 353-84918-0 FOR EP & EPT $6.59 2
(34-4) WASHER 9.6-18-2 353849160M 353-84916-0 FOR EP & EPT $1.45 3
(34-5) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 FOR EP & EPT $2.56 1 Sold Out View More Details
(35) STEERING HOOK PLATE 3R0838300M 3R0-83830-0 FOR EP & EPT $10.35 1
(36) BOLT 9101031030M 910103-1030 FOR EP & EPT $2.51 2
(37) WASHER 9401131000M 940113-1000 FOR EP & EPT $1.50 2
(38) TACHOMETER (WITH OIL LAMP) 3B7726401M 3B7-72640-1 UNIQUE / OPTION / FOR EP & EPT $0.00 1 Sold Out View More Details
(38-1) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR EP & EPT $3.27 1
(38-2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR EP & EPT $0.00 1 Sold Out View More Details
(38-3) METER DAMPER 3B7726560M 3B7-72656-0 FOR EP & EPT $3.27 1
(38-4) FITTING PLATE 3B7726610M 3B7-72661-0 FOR EP & EPT $25.33 1
(38-5) NUT 9302030500M 930203-0500 FOR EP & EPT $0.60 2
(38-6) SPRING WASHER 9413030500M 941303-0500 FOR EP & EPT $0.90 2
(39) TACHOMETER LEAD CABLE 361725390M 361-72539-0 L=6000 / OPTION / FOR EP $50.65 1
(40) LEAD WIRE METER 3R0725371M 3R0-72537-1 L=2000 / OPTION / FOR EPT $65.87 1
