14. GEAR CASE

Click Here for Microfiche Usage Tip

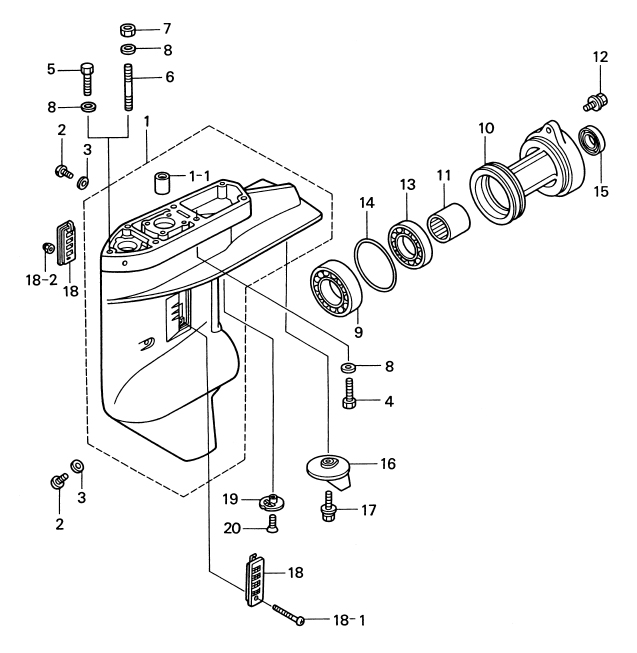

(1) GEAR CASE ASSY(1-1) NEEDLE BEARING, 20 - 27 - 30(2) OIL PLUG(2) OIL PLUG(3) GASKET, 8.1 -15 -1(3) GASKET, 8.1 -15 -1(4) BOLT(5) BOLT(6) STUD BOLT(7) NUT(8) WASHER(8) WASHER(8) WASHER(9) BEARING, 30205(10) HOUSING, PROPELLER SHAFT(11) NEEDLE BEARING,18 - 25 - 25(12) BOLT(13) BEARING, 6205(14) O-RING, 3 - 62.5(15) OIL SEAL, 18 - 28 - 8(16) TRIM TAB(17) BOLT(18) WATER STRAINER SET(18) WATER STRAINER SET(18-1) SCREW(18-2) NYLON NUT, 4 P0.7(19) STRAINER, SUB WATER(20) SCREW



Parts List
2002 :: 30 HP :: 4 Stroke Tohatsu MFS30A :: GEAR CASE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE ASSY 346S600006 346S60000-6 $0.00 1 Sold Out View More Details
(1-1) NEEDLE BEARING 20 - 27 - 30 346602110M 346-60211-0 $34.68 1
(2) WATER PLUG 332600052M 332-60005-2 $5.07 2
(3) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(4) BOLT 9161130840M 916113-0840 $2.08 4
(5) BOLT 9161130845M 916113-0845 TRANSOM L & UL $2.35 1
(6) STUD BOLT 9153130830M 915313-0830 TRANSOM S $2.39 1
(7) NUT 9301130800M 930113-0800 TRANSOM S $1.99 1 Sold Out View More Details
(8) WASHER 9401130800M 940113-0800 $0.84 5
(9) BEARING 30205 346602150M 346-60215-0 $25.33 1
(10) HOUSING PROPELLER SHAFT 346S601015 346S60101-5 $62.96 1
(11) NEEDLE BEARING 18 - 25 - 25 346601020M 346-60102-0 $25.33 1
(12) BOLT 9101135830M 910113-5830 $1.38 2
(13) BEARING 6205 960106205M 9601-0-6205 $13.25 1
(14) O-RING 3 - 62.5 332601030M 332-60103-0 $3.91 1
(15) OIL SEAL 18 - 28 - 8 346601110M 346-60111-0 $8.52 1
(16) TRIM TAB 3C8602171M 3C8-60217-1 $13.60 1
(17) BOLT 9101135620M 910113-5620 $1.30 1
(18) WATER STRAINER SET 3A1602350M 3A1-60235-0 $13.35 1
(18-1) SCREW 9215130430M 921513-0430 $0.95 1
(18-2) NYLON NUT 4P-0.7 9304060400M 930406-0400 $1.68 1
(19) WATER STRAINER 369602060M 369-60206-0 $3.87 1
(20) SCREW 9208130620M 920813-0620 $1.21 1
