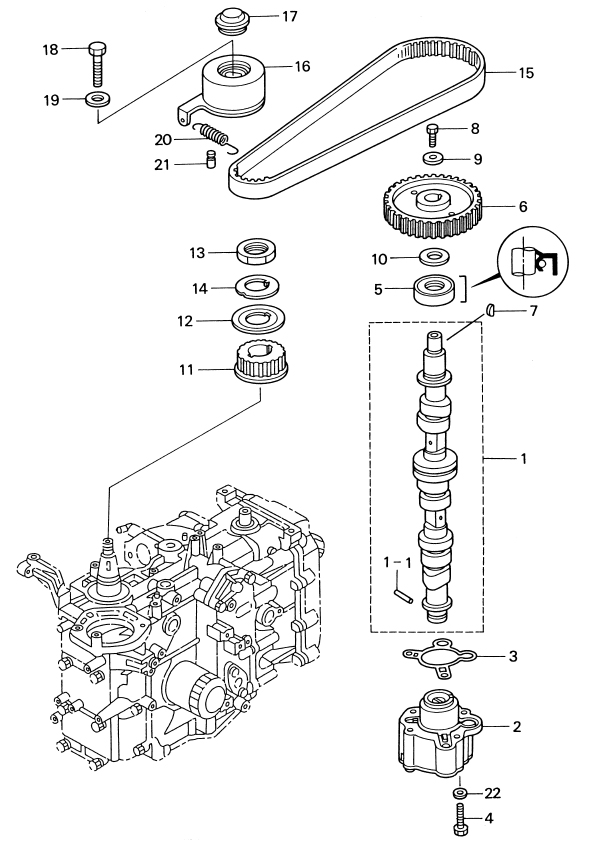

6. CAMSHAFT & OIL PUMP

Click Here for Microfiche Usage Tip
(1) CAMSHAFT ASSY(1-1) PIN(2) OIL PUMP(3) O-RING, OIL PUMP OUTER(4) BOLT(5) OIL SEAL,18 - 35 - 8(6) DRIVEN PULLEY(7) KEY(8) BOLT(9) WASHER, 6.5 -19 - 3.2(10) WASHER, 14.2 - 25 - 2.5(11) DRIVE PULLEY(12) PLATE(13) NUT(14) LOCK WASHER(15) TIMING BELT(16) TENSIONER, TIMING BELT(17) COVER, TENSIONER(18) BOLT(19) WASHER(20) SPRING, TENSIONER(21) HOOK, TENSIONER SPRING(22) WASHER



Parts List
2002 :: 30 HP :: 4 Stroke Tohatsu MFS30A :: CAMSHAFT & OIL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CAMSHAFT ASSY 3R0070100M 3R0-07010-0 $0.00 1 Sold Out View More Details
(1-1) PIN 3H8072460M 3H8-07246-0 $0.00 1 Sold Out View More Details
(2) OIL PUMP 3R0076000M 3R0-07600-0 $109.25 1
(3) O-RING OIL PUMP OUTER 3R0076390M 3R0-07639-0 $2.31 1
(4) BOLT 9101140645M 910114-0645 25A #20123~ / 30A #30135~ $1.25 3
(5) OIL SEAL 18-35-8 3H8070250M 3H8-07025-0 $5.44 1
(6) DRIVEN PULLEY 3H8100621M 3H8-10062-1 PULLEY CAMSHAFT $48.39 1
(7) KEY 309001310M 309-00131-0 $2.31 1
(8) BOLT 9101140620M 910114-0620 $0.90 1
(9) WASHER 6.5-19-3.2 3H8100660M 3H8-10066-0 $1.27 1 Sold Out View More Details
(10) WASHER 14.2 - 25 - 2.5 3R3100670M 3R3-10067-0 $0.00 1 Sold Out View More Details
(11) DRIVE PULLEY 3R0100600M 3R0-10060-0 PULLEY TIMING $48.83 1
(12) PLATE 3R0100630M 3R0-10063-0 $1.93 1
(13) NUT 3R0100680M 3R0-10068-0 $5.02 1
(14) LOCK WASHER 3R0100690M 3R0-10069-0 $1.93 1
(15) TIMING BELT 3R0100610M 3R0-10061-0 $57.04 1
(16) TENSIONER TIMING BELT 3R0100700M 3R0-10070-0 $0.00 1 Sold Out View More Details
(17) COVER TENSIONER 3R0100740M 3R0-10074-0 $1.45 1
(18) BOLT 9101031040M 910103-1040 $3.92 1
(19) WASHER 9401131000M 940113-1000 OR 940103-1000 $1.50 1
(20) SPRING TENSIONER 3R0100750M 3R0-10075-0 $9.20 1
(21) HOOK TENSIONER SPRING 3R0100770M 3R0-10077-0 $0.00 1 Sold Out View More Details
(22) WASHER 9401110600M 940111-0600 25A #20123~ / 30A #30135~ $0.83 1
