4. INLET MANIFOLD & FUEL PUMP

Click Here for Microfiche Usage Tip

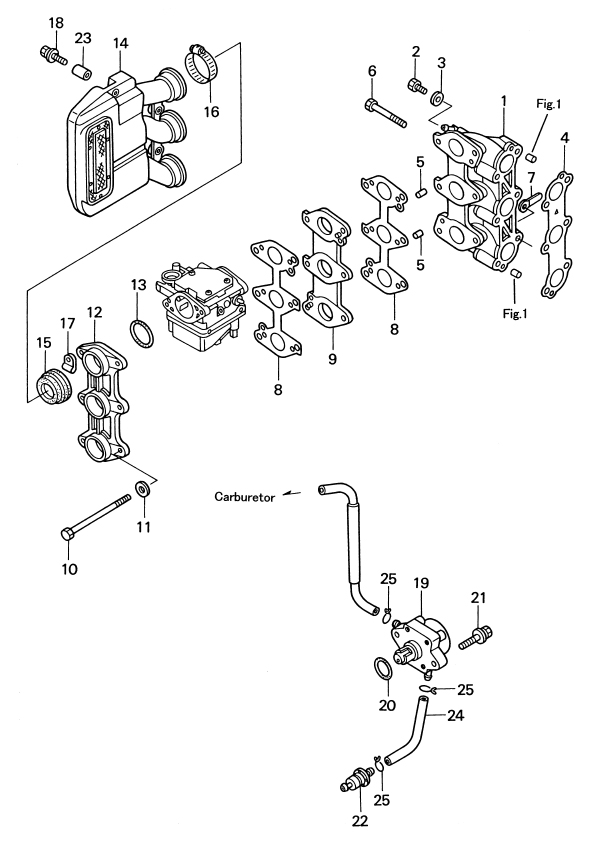

(1) INLET MANIFOLD(2) BOLT, 5 -10(3) WASHER, 5.3 -12 -1(4) GASKET, INLET MANIFOLD(5) KNOCK, 6 -12(5) KNOCK, 6 -12(6) BOLT(7) CLAMP, 6.5 - 47.5P(8) GASKET, CARBURETOR(8) GASKET, CARBURETOR(9) INSULATOR(10) BOLT, 6 -100(11) WASHER(12) FLANGE, AIR SILENCER(13) O-RING,1.9 - 38.8(14) AIR SILENCER(15) SEAL RUBBER, AIR SILENCER(16) CLAMP, 60(17) CLAMP, 6.5 -14L(18) BOLT(19) FUEL PUMP(20) O-RING, 3.5 - 25.7(21) BOLT(22) FUEL FILTER(23) COLLAR, 6.2 - 9 - 7.4(24) RUBBER PIPE(25) CLIP, o10(25) CLIP, o10(25) CLIP, o10



Parts List
2002 :: 30 HP :: 4 Stroke Nissan NSF30A :: INLET MANIFOLD & FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INLET MANIFOLD 3R0020100M 3R0-02010-0 $0.00 1 Sold Out View More Details
(2) BOLT 5 -10 3R0020950M 3R0-02095-0 $0.00 3 Sold Out View More Details
(3) WASHER 5.3 -12 -1 3R0021120M 3R0-02112-0 $2.91 3
(4) GASKET INLET MANIFOLD 3R0021040M 3R0-02104-0 $4.42 1 Sold Out View More Details
(5) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(6) BOLT 9101135652M 910113-5652 $2.91 6 Sold Out View More Details
(7) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(8) GASKET CARBURETOR 3S8020110M 3S8-02011-0 $3.74 2 Sold Out View More Details
(9) INSULATOR 3S8039520M 3S8-03952-0 $0.00 1 Sold Out View More Details
(10) BOLT 6 -100 3R0032150M 916113-0695 $6.22 6 Sold Out View More Details
(11) WASHER 9401130600M 940113-0600 OR 940103-0600 $0.83 6
(12) FLANGE AIR SILENCER 3R0024160M 3R0-02416-0 $9.75 1
(13) O-RING 1.9 - 38.8 3F3020120M 3F3-02012-0 $4.33 3
(14) AIR SILENCER 3R0024120M 3R0-02412-0 $0.00 1 Sold Out View More Details
(15) SEAL RUBBER AIR SILENCER 3R0024180M 3R0-02418-0 $0.00 3 Sold Out View More Details
(16) CLAMP 60 3R0024260M 3R0-02426-0 $3.54 3
(17) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(18) BOLT 9101135620M 910113-5620 OR 910103-5620 $1.30 3
(19) FUEL PUMP 3H8040001M 3H8-04000-1 $67.56 1
(20) O-RING 3.5 - 25.7 345624150M 345-62415-0 $1.10 1 Sold Out View More Details
(21) BOLT 9101135625M 910113-5625 OR 910103-5625 $1.47 2
(22) FUEL FILTER 369022300M 369-02230-0 $12.14 1
(23) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 3 Sold Out View More Details
(24) RUBBER PIPE 98AB50160M 98AB-5-0160 $11.41 1
(25) CLIP ø10 338022150M 338-02215-0 $1.41 3
