20. GAS ASSIST - POWER TRIM & TILT

Click Here for Microfiche Usage Tip
(1) STERN BRACKET RIGHT(1) STERN BRACKET RIGHT (ABYC)(1) STERN BRACKET RIGHT(1) STERN BRACKET RIGHT (ABYC)(2) STERN BRACKET LEFT(2) STERN BRACKET LEFT (ABYC)(2) STERN BRACKET LEFT(2) STERN BRACKET LEFT (ABYC)(3) BRACKET BOLT(4) BUSHING, BRACKET BOLT(5) ANODE, STERN BRACKET(6) THRUST ROD(7) R-PIN, D=10(8) CLAMP SCREW(9) PAD, CLAMP SCREW(10) SWIVEL BRACKET(11) TILT STOPPER ASSY(11) TILT STOPPER ASSY(11-1) SPRING PIN, 3.5 -16(11-2) CLIP, TILT STOPPER(12) SPRING, TILT STOPPER(13) COLLAR, 10.2 -12 -12(13) COLLAR, 10.2 -12 -12(14) POWER TRIM & TILT ASSY(15) CYLINDER PIN UPPER(16) BUSHING,13 -16 - 40(17) BUSHING,13 -17 -19.5(17) BUSHING,13 -17 -19.5(18) BOLT(19) WASHER, 6.5 - 23 -1.5(20) CYLINDER PIN LOWER(21) BUSHING,18 - 24 - 22(21) BUSHING,18 - 24 - 22(21) BUSHING,18 - 24 - 22(21) BUSHING,18 - 24 - 22(21) BUSHING,18 - 24 - 22(21) BUSHING,18 - 24 - 22(21) BUSHING,18 - 24 - 22(22) WASHER, 18.2 - 34 -1(22) WASHER, 18.2 - 34 -1(23) C-RING, D=18(23) C-RING, D=18(24) CLAMP, 6 - 9.5L(25) CLAMP, 6.5 -14L(26) SCREW(26) SCREW(27) BAND, LEAD WIRE 300(28) GROUND CABLE(29) BOLT(30) BOLT(31) TRIM SENDER(31) TRIM SENDER(32) BOLT(33) WASHER, 6 -16 -1.5(34) CLAMP, 6 - 9.5L(35) SCREW(36) BOLT,12P 1.25 - L105(37) WASHER,13 - 34 - 3(38) WASHER(39) NUT, P1.25(40) CONTROL BOX (RC5A)(40) CONTROL BOX (RC5A)(41) TRIM METER(42) LEAD WIRE, METER(43) GAS SHOCK ABSORBER(44) LOCK LEVER(45) GRIP, LOCK LEVER(46) STOPPER, LEVER GRIP(47) BOLT(48) WASHER(49) NUT(50) COLLAR,18.2 - 21.7 - 30(51) TRIM METER KIT



Parts List

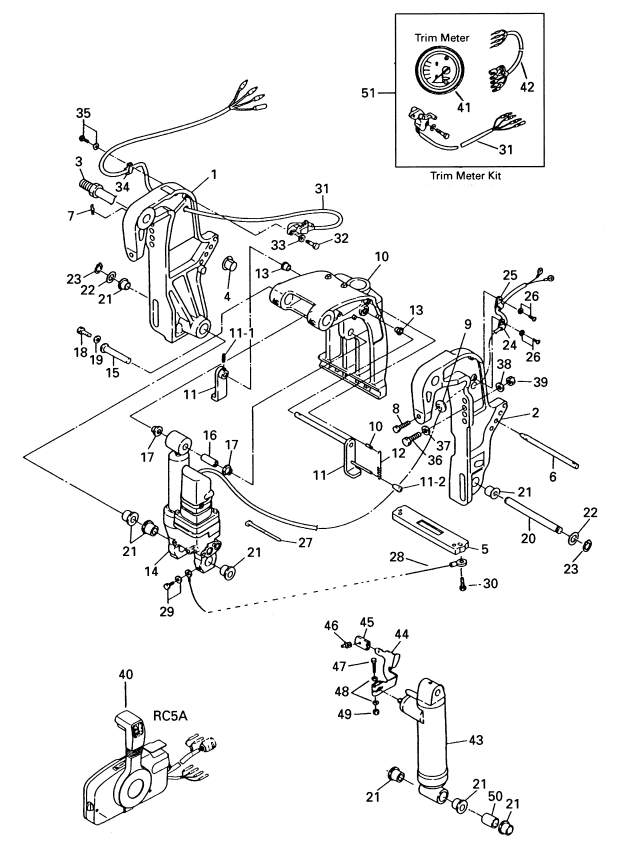

2002 :: 25 HP :: 4 Stroke Tohatsu MFS25A :: GAS ASSIST - POWER TRIM & TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STERN BRACKET RIGHT 3R0S772110 3R0S77211-0 PTT TYPE ONLY $0.00 1 Sold Out View More Details
(1) STERN BRACKET RIGHT (ABYC) 3R0S772111 3R0S77211-0 PTT TYPE ONLY $0.00 1 Sold Out View More Details
(1) STERN BRACKET RIGHT 3S9S772110 3S9S77211-0 GAS ASSIST TYPE ONLY $0.00 1 Sold Out View More Details
(1) STERN BRACKET RIGHT (ABYC) 3S9S772111 3S9S77211-1 GAS ASSIST TYPE ONLY $0.00 1 Sold Out View More Details
(2) STERN BRACKET LEFT 3R0S772120 3R0S77212-0 PTT TYPE ONLY $0.00 1 Sold Out View More Details
(2) STERN BRACKET LEFT (ABYC) 3R0S772121 3R0S77212-0 PTT TYPE ONLY $0.00 1 Sold Out View More Details
(2) STERN BRACKET LEFT 3S9S772120 3S9S77212-0 GAS ASSIST TYPE ONLY $0.00 1 Sold Out View More Details
(2) STERN BRACKET LEFT (ABYC) 3S9S772121 3S9S77212-1 GAS ASSIST TYPE ONLY $0.00 1 Sold Out View More Details
(3) BRACKET BOLT 3S9621910M 3S9-62191-0 $0.00 1 Sold Out View More Details
(4) BUSHING BRACKET BOLT 3C8772130M 3C8-77213-0 $5.07 2
(5) ANODE STERN BRACKET 3C7602181M 3C7-60218-1 $19.84 1
(6) THRUST ROD 3R0771180M 3R0-77118-0 $22.77 1
(7) R-PIN D=10 3B7621291M 3B7-62129-1 $10.81 1
(8) CLAMP SCREW 3C8772140M 3C8-77214-0 $39.91 2
(9) CLAMP SCREW PAD 332621010M 332-62101-0 $3.36 1
(10) SWIVEL BRACKET 3R0S772150 3R0S77215-0 $0.00 1 Sold Out View More Details
(11) TILT STOPPER ASSY 3R0S624700 3R0S62470-0 $66.77 1
(11-1) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(11-2) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(12) SPRING TILT STOPPER 3R0624730M 3R0-62473-0 $3.91 1
(13) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(14) POWER TRIM & TILT ASSY 3R0S771500 3R0S77150-0 $0.00 1 Sold Out View More Details
(15) CYLINDER PIN UPPER 3R0770710M 3R0-77071-1 $8.58 1
(16) BUSHING 13 -16 - 40 3R0770750M 3R0-77075-0 $1.57 1
(17) BUSHING 13 -17 -19.5 3R0770760M 3R0-77076-0 $1.57 2
(18) BOLT 9101130612M 910113-0612 $0.84 1
(19) WASHER 6.5 - 23 -1.5 345051220M 345-05122-0 $2.17 1
(20) CYLINDER PIN LOWER 3R0771010M 3R0-77101-0 $38.19 1
(21) BUSHING 18 - 24 - 22 3C8770761M 3C8-77076-1 6 FOR GAS ASSIST TYPE $2.31 5
(22) WASHER 18.2 - 34 -1 3R0771120M 3R0-77112-0 $2.40 2
(23) C-RING D=18 9451031800M 945103-1800 $1.93 2
(24) CLAMP 6 - 9.5L 336069730M 336-06973-0 $1.41 1
(25) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(26) SCREW 9215035612M 921503-5612 $0.86 2
(27) BAND LEAD WIRE 300 1H2315340M 1H2-31534-0 $0.00 1 Sold Out View More Details
(28) GROUND CABLE 3C8621580M 3C8-62158-0 L=130 $5.75 1 Sold Out View More Details
(29) BOLT 9101135612M 910113-5612 $1.07 1
(30) BOLT 9101135630M 910113-5630 $1.15 2 Sold Out View More Details
(31) TRIM SENDER 3B7725740M 3B7-72574-0 L=6000 / OPTION $183.03 1
(32) BOLT 9101130620M 910113-0620 OPTION $1.04 2
(33) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OPTION $1.59 2 Sold Out View More Details
(34) CLAMP 6 - 9.5L 336069730M 336-06973-0 OPTION $1.41 1
(35) SCREW 9215035612M 921503-5612 OPTION $0.86 1
(36) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.40 4
(37) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(38) WASHER 9401131200M 940113-1200 $0.65 2
(39) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(40) CONTROL BOX (RC5A) 3B7843301M 3B7-84330-1 TOHATSU / EPT TYPE ONLY $446.56 1
(40) CONTROL BOX (RC5A) 3B1Q843303 3B1Q843303 NISSAN / EPT TYPE ONLY $0.00 1 Sold Out View More Details
(41) TRIM METER 3E0725710M 3E0-72571-0 OPTION $0.00 1 Sold Out View More Details
(42) LEAD WIRE METER 3R0725371M 3R0-72537-1 L=2000 / OPTION $65.87 1
(43) GAS SHOCK ABSORBER 3R0S776010 3R0S77601-0 GAS ASSIST TYPE ONLY $0.00 1 Sold Out View More Details
(44) LOCK LEVER 3R0663110M 3R0-66311-0 GAS ASSIST TYPE ONLY $28.78 1
(45) GRIP LOCK LEVER 346663330M 346-66333-0 GAS ASSIST TYPE ONLY $4.83 1
(46) STOPPER LEVER GRIP 346663340M 346-66334-0 GAS ASSIST TYPE ONLY $1.27 1
(47) BOLT 9101140635M 910114-0635 GAS ASSIST TYPE ONLY $1.06 1
(48) WASHER 9401130600M 940113-0600 GAS ASSIST TYPE ONLY $0.83 2
(49) NUT 9301130600M 930113-0600 GAS ASSIST TYPE ONLY $0.84 1
(50) COLLAR 18.2 - 21.7 - 30 3R0771050M 3R0-77105-0 GAS ASSIST TYPE ONLY $14.73 1
(51) TRIM METER KIT 3R0725250M 3R0-72525-0 OPTION $0.00 1 Sold Out View More Details
