13. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip

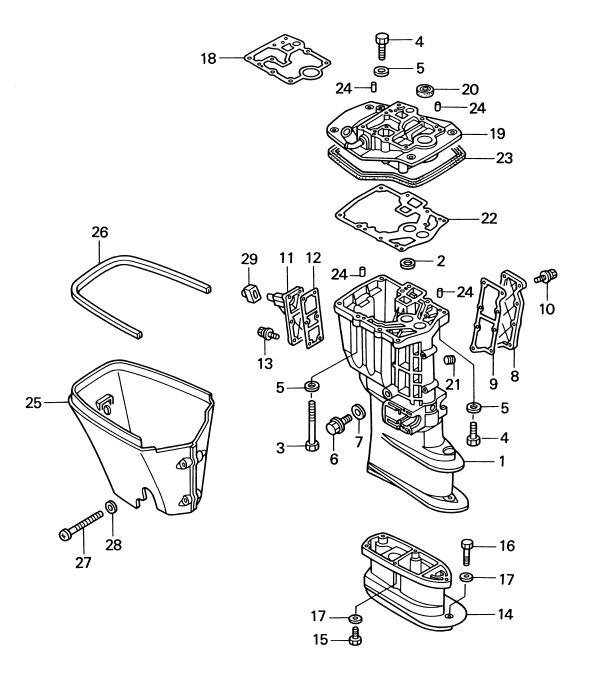

(1) DRIVE SHAFT HOUSING S(1) DRIVE SHAFT HOUSING L(2) PLATE, WATER PIPE(3) BOLT, 8 -105(4) BOLT, 8 - 40(4) BOLT, 8 - 40(5) WASHER(5) WASHER(5) WASHER(6) BOLT, DRAIN(7) WASHER,14.5 - 24 -1(8) COVER, DRAIN(9) GASKET, DRAIN COVER(10) BOLT(11) COVER, IDLE PORT(12) GASKET, IDLE PORT(13) BOLT(14) EXTENSION HOUSING UL(15) BOLT(16) BOLT(17) WASHER, 8.1 -16 -1.5(17) WASHER, 8.1 -16 -1.5(18) GASKET, ENGINE BASE(19) ENGINE BASE(20) OIL SEAL,16 - 28 - 6(21) EXHAUST PLUG(22) GASKET, DRIVE SHAFT HOUSING(23) SEAL RUBBER, ENGINE BASE(24) KNOCK, 6 -12(24) KNOCK, 6 -12(24) KNOCK, 6 -12(24) KNOCK, 6 -12(25) APRON(26) SEAL RUBBER, APRON(27) TAPPING SCREW, 6 - 60(28) WASHER(29) GROMMET, APRON



Parts List
2002 :: 25 HP :: 4 Stroke Tohatsu MFS25A :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE SHAFT HOUSING S 3R0S611910 3R0S61191-0 SHORT $658.73 1
(1) DRIVE SHAFT HOUSING L 3R0S611920 3R0S61192-0 LONG $567.12 1
(2) PLATE WATER PIPE 3R0652070M 3R0-65207-0 $1.87 1
(3) BOLT 8 -105 3B7610172M 3B7-61017-2 $5.16 6
(4) BOLT 8 - 40 3R0610170M 3R0-61017-0 $1.73 3
(5) WASHER 9401130800M 940113-0800 $0.90 9
(6) DRAIN BOLT 3R3074051M 3R3-07405-1 $7.83 1
(7) WASHER 14.5-24-1 3R3074060M 3R3-07406-0 $0.88 1
(8) COVER DRAIN 3R0S610280 3R0S61028-0 $15.79 1 Sold Out View More Details
(9) GASKET DRAIN COVER 3R0610290M 3R0-61029-0 $4.60 1
(10) BOLT 9101135618M 910113-5618 $0.99 8
(11) COVER IDLE PORT 3R0S612080 3R0S61208-0 $15.10 1 Sold Out View More Details
(12) GASKET IDLE PORT 3R0612070M 3R0-61207-0 $4.31 1
(13) BOLT 9101135620M 910113-5620 $1.39 6 Sold Out View More Details
(14) EXTENSION HOUSING UL 346S611105 346S61110-5 $234.90 1
(15) BOLT 9161130835M 916113-0835 $2.14 4
(16) BOLT 9161130845M 916113-0845 $2.51 1
(17) WASHER 8.1 -16 -1.5 3P0662330M 3P0-66233-0 $1.38 5 Sold Out View More Details
(18) GASKET ENGINE BASE 3R0013030M 3R0-01303-0 $33.76 1
(19) ENGINE BASE 3R0S013010 3R0S01301-0 WITH NIPPLE $266.83 1 Sold Out View More Details
(20) OIL SEAL 16 - 28 - 6 346012150M 346-01215-0 $4.70 1
(21) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.94 1
(22) GASKET DRIVE SHAFT HOUSING 3R0610120M 3R0-61012-0 $41.47 1
(23) SEAL RUBBER ENGINE BASE 3R0671160M 3R0-67116-0 $7.96 1
(24) DOWEL PIN 6-12 345011110M 345-01111-0 $1.39 4
(25) APRON 3R0S612100 3R0S61210-0 $102.68 1
(26) SEAL RUBBER APRON 3R0612130M 3R0-61213-0 $4.15 1
(27) TAPPING SCREW 6 - 60 3R0612170M 3R0-61217-0 $1.57 2
(28) WASHER 9401130600M 940113-0600 $0.88 2
(29) GROMMET APRON 3R0612120M 3R0-61212-0 $2.19 1
