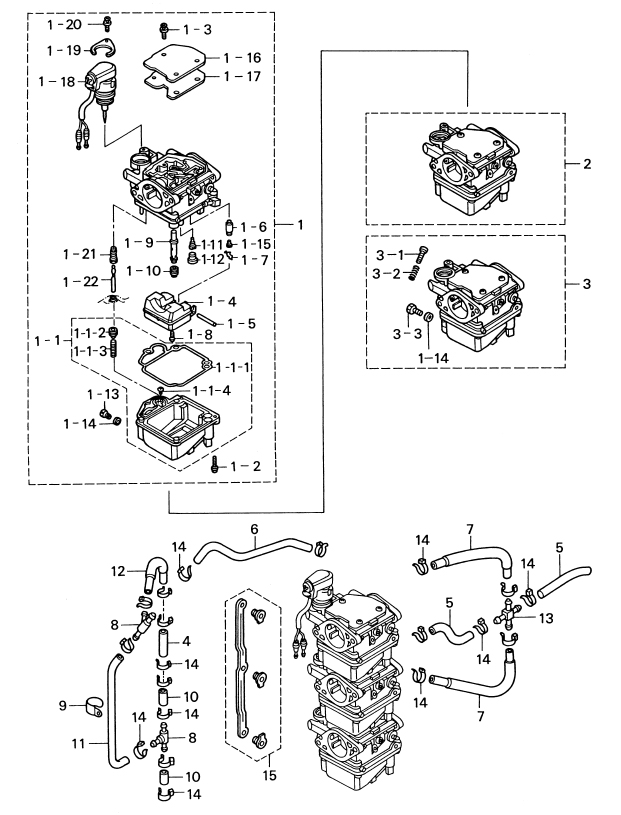

5. CARBURETOR

Click Here for Microfiche Usage Tip
(1) CARBURETOR UPPER ASSY(1-1) FLOAT CHAMBER(1-1) FLOAT CHAMBER(1-1) FLOAT CHAMBER(1-1-1) O-RING, FLOAT CHAMBER(1-1-2) PLUNGER COMP.(1-1-3) COIL SPRING(1-1-4) SCREW(1-2) SCREW(1-3) SCREW(1-4) FLOAT(1-5) ARM PIN, FLOAT(1-6) FLOAT VALVE(1-7) CLIP(1-8) SCREW(1-9) MAIN NOZZLE(1-10) MAIN JET #82(1-11) SLOW JET #45(1-12) RUBBER CAP(1-13) DRAIN SCREW(1-14) GASKET(1-14) GASKET(1-15) VALVE PIN(1-16) CARBURETOR, COVER(1-17) GASKET, CARBURETOR COVER(1-18) AUTO-BY-STARTER ASSY(1-19) HOLDER(1-20) SCREW(1-21) RUBBER BOOT(1-22) LINK ROD(2) CARBURETOR CENTER ASSY(3) CARBURETOR CENTER ASSY(3-1) STOP SCREW(3-2) SPRING(3-3) DRAIN SCREW(4) RUBBER PIPE(5) RUBBER PIPE(5) RUBBER PIPE(6) RUBBER PIPE(7) RUBBER PIPE COMP.(7) RUBBER PIPE COMP.(8) PIPE JOINT T TYPE(8) PIPE JOINT T TYPE(9) CLAMP, 6.5 -14L(10) RUBBER PIPE(10) RUBBER PIPE(11) RUBBER PIPE(12) RUBBER PIPE COMP.(13) JOINT(14) BAND, LEAD WIRE(14) BAND, LEAD WIRE(14) BAND, LEAD WIRE(14) BAND, LEAD WIRE(14) BAND, LEAD WIRE(14) BAND, LEAD WIRE(14) BAND, LEAD WIRE(14) BAND, LEAD WIRE(14) BAND, LEAD WIRE(15) LINK LEVER COMP.



Parts List
2002 :: 25 HP :: 4 Stroke Tohatsu MFS25A :: CARBURETOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR UPPER ASSY 3S9032000M 3S9-03200-0 $250.25 1
(1-1) FLOAT CHAMBER 3R0032210M 3R0-03221-0 WITH STARTER JET / UPPER $0.00 1 Sold Out View More Details
(1-1) FLOAT CHAMBER 3R0032270M 3R0-03227-0 CENTER $0.00 1 Sold Out View More Details
(1-1) FLOAT CHAMBER 3R0032280M 3R0-03228-0 LOWER $64.70 1
(1-1-1) O-RING FLOAT CHAMBER 3R3032220M 3R3-03222-0 X 3 $9.09 1
(1-1-2) PLUNGER COMP. 3R0033150M 3R0-03315-0 X 3 $20.24 1
(1-1-3) COIL SPRING 3R3033140M 3R3-03314-0 X 3 $3.37 1
(1-1-4) SCREW 3R3033160M 3R3-03316-0 X 3 $1.44 1
(1-2) SCREW 9225036414M 922503-6414 X 3 $1.27 4
(1-3) SCREW 369031860M 369-03186-0 X 3 $1.44 3
(1-4) FLOAT 3R3032310M 3R3-03231-0 X 3 $26.89 1
(1-5) ARM PIN FLOAT 3F3032320M 3F3-03232-0 X 3 $2.19 1
(1-6) FLOAT VALVE 3R3032400M 3R3-03240-0 X 3 $11.64 1
(1-7) CLIP 344032440M 344-03244-0 X 3 $3.51 1
(1-8) SCREW 3R3032340M 3R3-03234-0 X 3 $1.11 1
(1-9) MAIN NOZZLE 3S9032520M 3S9-03252-0 X 3 $0.00 1 Sold Out View More Details
(1-10) MAIN JET #82 3S9032510M 3S9-03251-0 X 3 $0.00 1 Sold Out View More Details
(1-11) SLOW JET #45 3R3032780M 3R3-03278-0 X 3 $9.37 1
(1-12) RUBBER CAP 346032560M 346-03256-0 X 3 $2.25 1
(1-13) DRAIN SCREW 3R3032920M 3R3-03292-0 X 2 UPPER CENTER $0.00 1 Sold Out View More Details
(1-14) GASKET 3R3032930M 3R3-03293-0 X 3 $1.34 1
(1-15) VALVE PIN 334032420M 334-03242-0 X 3 $1.61 1
(1-16) CARBURETOR COVER 3R3031810M 3R3-03181-0 X 3 $9.25 1
(1-17) GASKET CARBURETOR COVER 3R3031820M 3R3-03182-0 X 3 $8.31 1
(1-18) AUTO-BY-STARTER ASSY 3R0034100M 3R0-03410-0 X 1 UPPER / WITH O-RING $144.53 1 Sold Out View More Details
(1-19) HOLDER 3R3034110M 3R3-03411-0 X 1 UPPER $5.87 1
(1-20) SCREW 369031860M 369-03186-0 X 1 UPPER $1.44 1
(1-21) RUBBER BOOT 3R3033110M 3R3-03311-0 X 3 $5.87 1
(1-22) LINK ROD 3R3033120M 3R3-03312-0 X 3 $13.67 1
(2) CARBURETOR CENTER ASSY 3S9032040M 3S9-03204-0 $0.00 1 Sold Out View More Details
(3) CARBURETOR CENTER ASSY 3S9032100M 3S9-03210-0 $0.00 1 Sold Out View More Details
(3-1) STOP SCREW 346032650M 346-03265-0 X 1 LOWER $4.54 1
(3-2) SPRING 3R3032670M 3R3-03267-0 X 1 LOWER $1.06 1
(3-3) DRAIN SCREW 3R0032920M 3R0-03292-0 X 1 LOWER $4.29 1
(4) RUBBER PIPE 3R0033320M 3R0-03332-0 $2.53 1
(5) RUBBER PIPE 3R0033380M 3R0-03338-0 $0.00 2 Sold Out View More Details
(6) RUBBER PIPE 3R0033360M 3R0-03336-0 $2.53 1
(7) RUBBER PIPE COMP. 3R0033370M 3R0-03337-0 $0.00 2 Sold Out View More Details
(8) PIPE JOINT T TYPE 3R0700130M 3R0-70013-0 $0.00 2 Sold Out View More Details
(9) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(10) RUBBER PIPE 3R0033330M 3R0-03333-0 $0.00 2 Sold Out View More Details
(11) RUBBER PIPE 3R0033350M 3R0-03335-0 $0.00 1 Sold Out View More Details
(12) RUBBER PIPE COMP. 3R0033310M 3R0-03331-0 $0.00 1 Sold Out View More Details
(13) JOINT 3R0033230M 3R0-03323-0 $0.00 1 Sold Out View More Details
(14) BAND LEAD WIRE 3R0033180M 3R0-03318-0 $0.00 19 Sold Out View More Details
(15) LINK LEVER COMP. 3R0032730M 3R0-03273-0 WITH COLLAR $0.00 1 Sold Out View More Details
