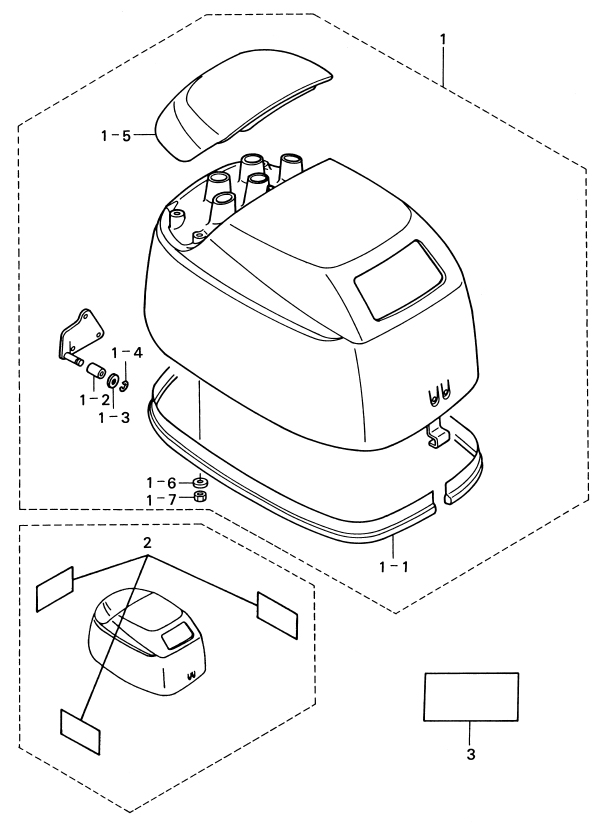

23. MOTOR COVER UPPER

Click Here for Microfiche Usage Tip
(1) UPPER MOTOR COVER ASSY(1) UPPER MOTOR COVER ASSY(1) UPPER MOTOR COVER ASSY(1-1) SEAL RUBBER, MOTOR COVER(1-2) ROLLER, 6.1-14.7 -14(1-3) WASHER, 6 -16 -1.5(1-4) E-RING, D=5(1-5) TILT HANDLE(1-5) TILT HANDLE(1-6) WASHER, 6.5 -16 - 2(1-7) NUT(2) DECAL SET(2) DECAL SET(3) CAUTION LABEL A



Parts List
2002 :: 25 HP :: 4 Stroke Nissan NSF25A :: MOTOR COVER UPPER
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) UPPER MOTOR COVER ASSY 3R0S675000 3R0S67500-0 TOHATSU / 25A ~#20224 / 30A ~#30211 $512.21 1
(1) UPPER MOTOR COVER ASSY 3R0S675001 3R0S67500-0 TOHATSU / 25A #20225~ / 30A #30212~ $512.21 1
(1) UPPER MOTOR COVER ASSY 3W3N675001 3W3N67500-1 NISSAN $0.00 1 Sold Out View More Details
(1-1) SEAL RUBBER MOTOR COVER 3S9675010M 3S9-67501-0 $53.11 1
(1-2) ROLLER 6.1-14.7 -14 3R0675170M 3R0-67517-0 $4.86 1 Sold Out View More Details
(1-3) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(1-4) E-RING D=5 9453030500M 945303-0500 $0.86 1
(1-5) TILT HANDLE 3R0S675210 3R0S67521-0 25A ~#20224 / 30A ~#30211 $0.00 1 Sold Out View More Details
(1-5) TILT HANDLE 3R0S675211 3R0S67521-1 25A #20225~ / 30A #30212~ $0.00 1 Sold Out View More Details
(1-6) WASHER 6.5 -16 - 2 309700160M 309-70016-0 $1.41 4
(1-7) NUT 9301130600M 930113-0600 OR 910103-0600 $0.84 4
(2) DECAL SET 3S9S878010 3S9S87801-0 TOHATSU $0.00 1 Sold Out View More Details
(2) DECAL SET 3W2N878010 3W2N87801-0 NISSAN $0.00 1 Sold Out View More Details
(3) CAUTION DECAL A 3R0721800M 3R0-72180-0 $3.40 1
