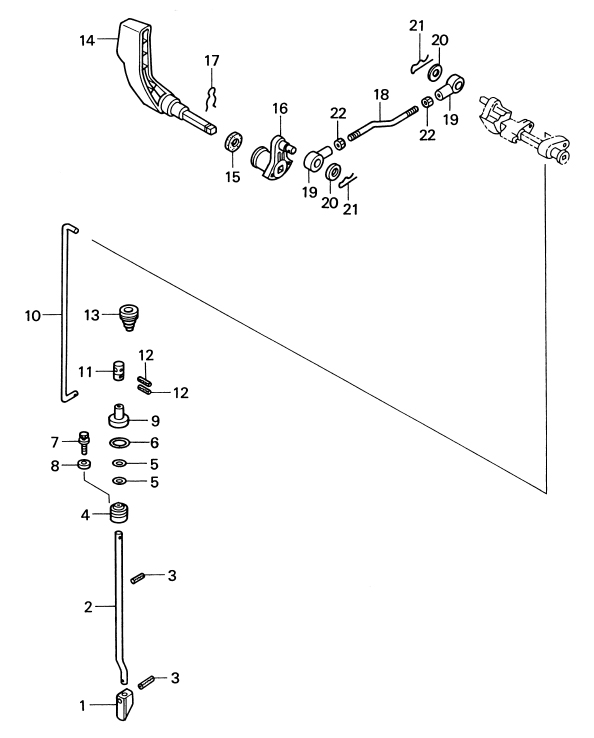

16. SHIFT & CAM ROD

Click Here for Microfiche Usage Tip
(1) CLUTCH CAM(2) CAM ROD "S"(2) CAM ROD "L"(2) CAM ROD "UL"(3) SPRING PIN, 3 -12(3) SPRING PIN, 3 -12(4) BUSHING, CAM ROD(5) O-RING, 2.4 - 5.8(6) O-RING, 3.5 - 21.7(7) BOLT(8) WASHER, 6 -16 -1.5(9) HOLDER, CAM ROD(10) SHIFT ROD(11) JOINT, SHIFT ROD(12) SPRING PIN, 3 -12(12) SPRING PIN, 3 -12(13) GROMMET,17 - 3(14) SHIFT LEVER(15) SEAL RING(16) SHIFT ARM B(17) SNAP RETAINER, D=8(18) ROD, SHIFT LEVER(19) CABLE JOINT(19) CABLE JOINT(20) WASHER, 8.5 -18 -1.6(20) WASHER, 8.5 -18 -1.6(21) R-PIN, D=8(21) R-PIN, D=8(22) NUT(22) NUT



Parts List
2002 :: 25 HP :: 4 Stroke Nissan NSF25A :: SHIFT & CAM ROD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLUTCH CAM 3C8660110M 3C8-66011-0 $32.23 1
(2) CAM ROD S 3R0660120M 3R0-66012-0 $14.90 1
(2) CAM ROD L 3R0660130M 3R0-66013-0 $17.26 1
(2) CAM ROD UL 3R0660140M 3R0-66014-0 $18.72 1
(3) SPRING PN 3-12 9514070312M 951407-0312 $0.86 2
(4) BUSHING CAM ROD 3R0660310M 3R0-66031-0 $9.30 1
(5) O-RING 2.4 - 5.8 332660210M 332-66021-0 $1.41 2
(6) O-RING 3.5 - 21.7 3C8660320M 3C8-66032-0 $2.07 1
(7) BOLT 9101135612M 910113-5612 $1.07 1
(8) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(9) HOLDER CAM ROD 346660370M 346-66037-0 FOR TRANSOM UL $2.19 1
(10) SHIFT ROD 3R0662110M 3R0-66211-0 $17.99 1
(11) JOINT SHIFT ROD 3R0662410M 3R0-66241-0 $7.19 1
(12) SPRING PIN 3-12 9514030312M 951403-0312 $0.83 2
(13) GROMMET 17 - 3 345662260M 345-66226-0 $3.91 1 Sold Out View More Details
(14) SHIFT LEVER 3R0661100M 3R0-66110-0 FOR MF & EF $9.90 1
(15) SEAL RING 338671470M 338-67147-0 FOR MF & EF $1.85 1
(16) SHIFT ARM B 3R0661280M 3R0-66128-0 FOR MF & EF $2.70 1
(17) SNAP RETAINER D=8 9517030800M 951703-0800 FOR MF & EF $0.83 1
(18) ROD SHIFT LEVER 3R0661340M 3R0-66134-0 FOR MF & EF $4.72 1
(19) CABLE JOINT 3R0837150M 3R0-83715-0 FOR MF & EF $2.40 2
(20) WASHER 8.5-18-1.6 353837190M 353-83719-0 FOR MF & EF $2.39 2
(21) SNAP PIN D=8 9516030800M 951603-0800 FOR MF & EF $0.70 2
(22) NUT 9301060500M 930106-0500 FOR MF & EF $0.86 2
