10. STARTER MOTOR

Click Here for Microfiche Usage Tip

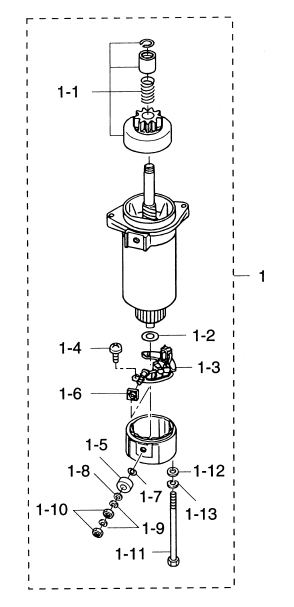

(1) STARTER MOTOR(1-1) PINION ASSY(1-2) WASHER(1-3) BRUSH HOLDER ASSY(1-4) SCREW(1-5) BUSHING 1(1-6) BUSHING 2(1-7) O-RING(1-8) WASHER(1-9) SPRING WASHER(1-10) NUT(1-11) BOLT(1-12) SPRING WASHER(1-13) WASHER



Parts List
2002 :: 25 HP :: 4 Stroke Nissan NSF25A :: STARTER MOTOR
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STARTER MOTOR 3C8760101M 3C8-76010-1 FOR EP & EF $491.52 1 Sold Out View More Details
(1-1) PINION ASSY 3C8760150M 3C8-76015-0 $167.77 1
(1-2) WASHER 3C8750150M 3C8-75015-0 $5.69 1
(1-3) BRUSH HOLDER ASSY 3C8750140M 3C8-75014-0 $59.83 1
(1-4) SCREW 9215216408M 921521-6408 $0.63 2
(1-5) BUSHING 1 3C8750160M 3C8-75016-0 $3.39 1
(1-6) BUSHING 2 3C8750170M 3C8-75017-0 $3.39 1
(1-7) O-RING 3C8750180M 3C8-75018-0 $1.21 1
(1-8) WASHER 9401030600M 940103-0600 $0.70 1
(1-9) SPRING WASHER 9413030600M 941303-0600 $0.84 1
(1-10) NUT 9302030600M 930203-0600 $0.00 2 Sold Out View More Details
(1-11) BOLT 3C8750190M 3C8-75019-0 $8.97 2
(1-12) SPRING WASHER 9413210500M 941321-0500 $0.00 2 Sold Out View More Details
(1-13) WASHER 9402210500M 940221-0500 $0.00 2 Sold Out View More Details
