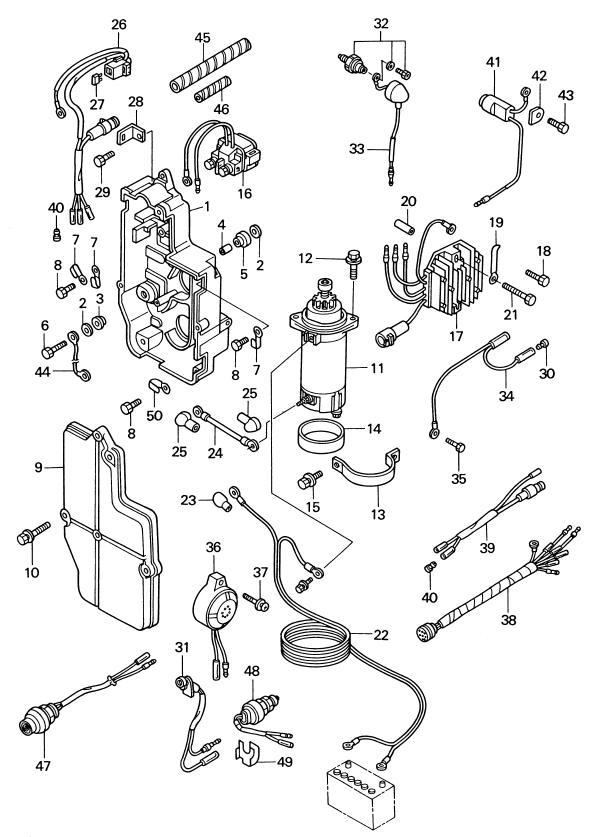

9. ELECTRIC PARTS

Click Here for Microfiche Usage Tip
(1) ELECTRIC BRACKET(2) WASHER, 6 -16 -1.5(2) WASHER, 6 -16 -1.5(3) RUBBER MOUNT, 8.5 -12 - 2(4) COLLAR, 6.2 - 9 -12.3(5) RUBBER MOUNT(6) BOLT(7) CLAMP, 6.5 - 47.5P(7) CLAMP, 6.5 - 47.5P(7) CLAMP, 6.5 - 47.5P(8) SCREW(8) SCREW(8) SCREW(9) COVER, ELECTRIC BRACKET(10) BOLT(11) STARTER MOTOR(12) BOLT(13) BAND, STARTER MOTOR(14) RUBBER, STARTER MOTOR(15) BOLT(16) STARTER SOLENOID(17) RECTIFIER(18) BOLT(19) CLAMP, 6.5 - 87P(20) SPACER, 6.2 - 9 - 27(21) BOLT(22) BATTERY CORD (L=2000)(23) CAP, CORD(24) STARTER CORD (L=270)(25) CAP, CORD(25) CAP, CORD(26) FUSE HOLDER ASSY(27) FUSE, 20A(28) STAY, FUSE HOLDER(29) BOLT(30) PLUG B, CABLE TERMINAL(31) PILOT LAMP ASSY(32) SWITCH, OIL PRESSURE(33) LEAD WIRE, SWITCH(34) SEPARATE CORD (BLACK)(35) BOLT(36) OVER HEAT BUZZER B(37) SCREW(38) CORD ASSY A(39) SEPARATE CORD (RED)(40) PLUG B, CABLE TERMINAL(40) PLUG B, CABLE TERMINAL(41) OVER HEAT SENSOR(42) STOPPER(43) BOLT(44) GROUND CABLE(45) SPIRAL TUBE 10 - 200(46) SPIRAL TUBE 6 - 60(47) MAIN SWITCH(48) NEUTRAL SWITCH(49) ACTUATOR, NEUTRAL SWITCH(50) CLAMP, 6.5 - 67P



Parts List
2002 :: 25 HP :: 4 Stroke Nissan NSF25A :: ELECTRIC PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ELECTRIC BRACKET 3R0069011M 3R0-06901-1 $35.49 1 Sold Out View More Details
(2) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 6 Sold Out View More Details
(3) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 3
(4) COLLAR 6.2 - 9 -12.3 3R0063030M 3R0-06303-1 $2.40 3
(5) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 3
(6) BOLT 9101036630M 910103-6630 $1.30 3
(7) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 3
(8) SCREW 9215030610M 921503-0610 $0.90 5
(9) COVER ELECTRIC BRACKET 3R0069021M 3R0-06902-1 $0.00 1 Sold Out View More Details
(10) BOLT 9101135620M 910113-5620 OR 910103-5620 $1.30 3
(11) STARTER MOTOR 3C8760101M 3C8-76010-1 FOR EP & EF $491.52 1 Sold Out View More Details
(12) BOLT 9101135830M 910113-5830 OR 910103-5830 / FOR EP & EF $1.38 2
(13) BAND STARTER MOTOR 3R0760090M 3R0-76009-0 FOR EP & EF $5.32 1
(14) RUBBER STARTER MOTOR 3C8760070M 3C8-76007-0 FOR EP & EF $3.39 1 Sold Out View More Details
(15) BOLT 9101135820M 910113-5820 OR 910103-5820 / FOR EP & EF $1.89 2
(16) STARTER SOLENOID 3H8760400M 3H8-76040-0 FOR EP & EF $67.57 1
(17) RECTIFIER 3T5760600M 3T5-76060-0 $114.50 1
(18) BOLT 9101135630M 910113-5630 OR 910103-5630 / FOR MF $1.15 2 Sold Out View More Details
(19) CLAMP 6.5-87P 3T4069720M 3T4-06972-1 2 FOR MF&EP / 1 FOR EF $1.53 2
(20) SPACER 6.2 - 9 - 27 3B2061620M 3B2-06162-0 FOR EP & EF $2.07 2
(21) BOLT 9101035655M 910103-5655 FOR EP & EF $1.93 2
(22) BATTERY CABLE (L=2000) 3B2761200M 3B2-76120-0 FOR EP & EF $61.59 1
(23) CAP CORD 3B7761450M 3B7-76145-0 FOR EP & EF $3.39 1
(24) STARTER CORD (L=270) 3R3761410M 3R3-76141-0 FOR EP & EF $24.89 1
(25) CAP CORD 3A3761450M 3A3-76145-0 FOR EP & EF $3.39 2
(26) FUSE HOLDER ASSY 3R0760620M 3R0-76062-0 FOR EP & EF $0.00 1 Sold Out View More Details
(27) FUSE (20A) 3T5762470M 3T5-76247-0 FOR EP & EF $2.99 1
(28) FUSE HOLDER STAY 3R0760640M 3R0-76064-0 $1.44 1
(29) BOLT 9101030612M 910113-0612 FOR EP & EF $0.84 1
(30) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EP $1.50 1
(31) WARNING LAMP 3R3710400M 3R3-71040-0 $21.44 1
(32) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(33) LEAD WIRE SWITCH 3H8076130M 3H8-07613-0 WITH GROMMET $4.78 1
(34) SEPARATE CORD ( BLACK) 3V5726780M 3V5-72678-0 $6.84 1
(35) BOLT 9101030610M 910114-0610 $0.76 1
(36) OVER HEAT BUZZER B 3B7761710M 3B7-76171-0 FOR MF & EF $57.51 1
(37) SCREW 9215035520M 921503-5520 FOR MF & EF $0.00 1 Sold Out View More Details
(38) CORD ASSY A 3R0761100M 3R0-76110-0 FOR EP $0.00 1 Sold Out View More Details
(39) SEPARATE CORD (RED) 3R0726770M 3R0-72677-0 FOR MF $0.00 1 Sold Out View More Details
(40) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR MF & EP $1.50 1
(41) OVER HEAT SENSOR 3R0761720M 3R0-76172-0 $0.00 1 Sold Out View More Details
(42) STOPPER 332660330M 332-66033-0 $0.55 1
(43) BOLT 9101030512M 910103-0512 $0.65 1
(44) GROUND CABLE 3B7761420M 3B7-76142-0 FOR EF & EP $5.29 1
(45) SPIRAL TUBE 10 - 200 3R0761480M 3R0-76148-0 $5.57 1 Sold Out View More Details
(46) SPIRAL TUBE 6 - 60 3R0761490M 3R0-76149-0 $3.59 2 Sold Out View More Details
(47) MAIN SWITCH 3B2760261M 3B2-76026-1 FOR EF $15.87 1
(48) NEUTRAL SWITCH 361760800M 361-76080-0 FOR EF $20.43 1
(49) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF $4.02 1
(50) CLAMP 6.5-67P 398069720M 398-06972-0 $2.31 1
