2. CYLINDER

Click Here for Microfiche Usage Tip

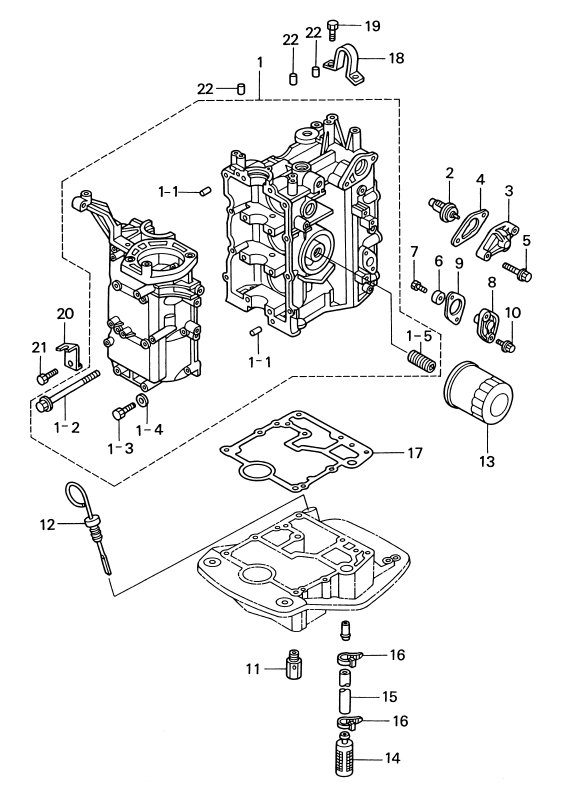

(1) CYLINDER-CRANK CASE ASSY(1-1) KNOCK, 6 -12(1-1) KNOCK, 6 -12(1-2) BOLT, 8 � 90(1-3) BOLT(1-4) WASHER(1-5) BOLT, OIL FILTER(2) THERMOSTAT(3) CAP, THERMOSTAT(4) GASKET(5) BOLT(6) ANODE(7) BOLT(8) CAP, ANODE(9) GASKET(10) BOLT(11) PLUNGER ASSY(12) OIL LEVEL GAUGE(13) OIL FILTER ASSY(14) OIL STRAINER ASSY(15) RUBBER HOSE(16) BAND, LEAD WIRE 150(16) BAND, LEAD WIRE 150(17) GASKET, ENGINE BASE(18) HANGER(19) BOLT(20) BRACKET, STARTER LOCK CABLE(21) BOLT(22) KNOCK, 6 -12(22) KNOCK, 6 -12(22) KNOCK, 6 -12



Parts List
2002 :: 25 HP :: 4 Stroke Nissan NSF25A :: CYLINDER
Pic. Ref. Part Description Tohatsu
Part Number
Original
Part Number
Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER-CRANK CASE ASSY 3R0B011000 3R0B01100-0 $0.00 1 Sold Out View More Details
(1-1) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(1-2) BOLT 8 – 90 3R0011130M 3R0-01113-0 $2.86 8
(1-3) BOLT 9161140640 916114-0640 $0.00 8 Sold Out View More Details
(1-4) WASHER 9401130600M 940113-0600 OR 940103-0600 $0.83 8
(1-5) BOLT OIL FILTER 3H8076360M 3H8-07636-0 $6.49 1
(2) THERMOSTAT 3R3010300M 3R3-01030-0 $39.63 1
(3) THERMOSTAT CAP 3H6B010310M 3H6B01031-0 $10.65 1 Sold Out View More Details
(4) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(5) BOLT 9101135630M 910113-5630 $1.15 2 Sold Out View More Details
(6) ANODE 369602181M 369-60218-1 $7.42 1
(7) BOLT 9101130616M 910113-0616 $0.98 1
(8) ANODE CAP 3H8B011430 3H8B01143-0 $17.31 1
(9) ANODE CAP GASKET 3R3011440M 3R3-01144-0 $2.01 1
(10) BOLT 9101135620M 910113-5620 $1.30 2
(11) PLUNGER ASSY 3R3076200M 3R3-07620-0 $26.96 1
(12) OIL LEVEL GAUGE 3R3074212M 3R3-07421-2 $11.65 1
(13) OIL FILTER ASSY 3R0076150M 3R0-07615-0 $11.78 1
(14) OIL STRAINER ASSY 3R3074100M 3R3-07410-0 $7.36 1
(15) RUBBER HOSE 98AH100220M 98AH10-0220 $65.61 1
(16) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 2
(17) GASKET ENGINE BASE 3R0013030M 3R0-01303-0 $31.56 1
(18) HANGER 3C7015131 3C7-01513-1 $0.00 1 Sold Out View More Details
(19) BOLT 9101145820M 910114-5820 $1.43 2 Sold Out View More Details
(20) BRACKET STARTER LOCK CABLE 3R0690000M 3R0-69000-0 $1.93 1 Sold Out View More Details
(21) BOLT 9101130612M 910113-0612 OR 910103-0612 $0.84 1
(22) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 3
