18. OPTIONAL PARTS (2) ACCESSORIES

Click Here for Microfiche Usage Tip

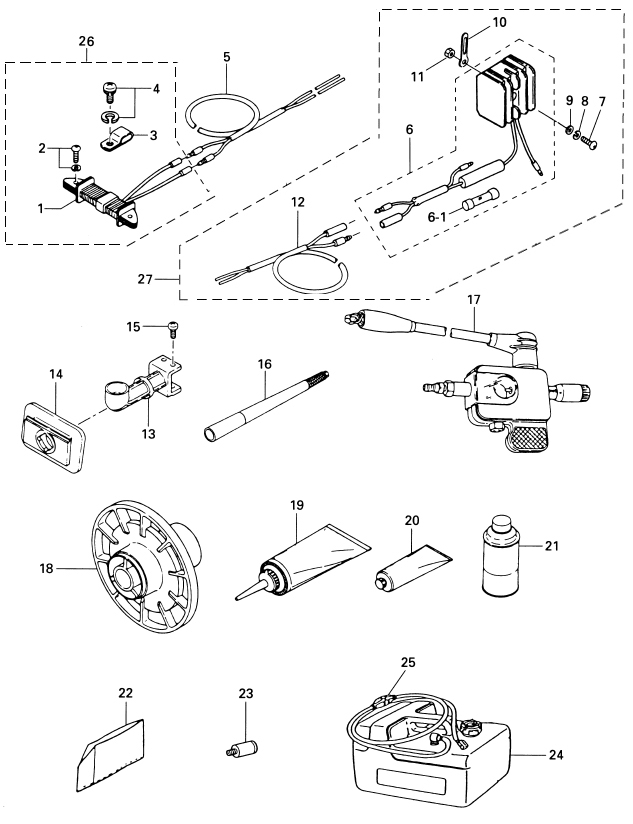

(1) ALTERNATOR (12V60W)(2) SCREW(3) CLAMP, 4.2 - 3- 8(4) SCREW(5) EXTENSION CORD , LIGHT(6) RECTIFIER COMPLETE(6-1) FUSE (10A)(7) SCREW(8) SPRING WASHER(9) WASHER(10) CLAMP, 7-80P(11) NUT(12) EXTENSION CORD(13) ELBOW, VERTICAL STARTING(14) SEAL RUBBER, VERTICAL STARTING(15) TAPPING SCREW(16) LONG HANDLE 0.4M(16) LONG HANDLE 0.8M(16) LONG HANDLE 1.0M(17) IGNITION CHECKER(18) TEST PROPELLER(19) TOHATSU GEAR LUBE (12-QUARTS)(19) TOHATSU GEAR LUBE (5 GAL PAIL)(19) TOHATSU GEAR LUBE (16 GAL DRUM)(19) NISSAN GEAR LUBE (12-QUARTS)(19) NISSAN GEAR LUBE (5 GAL PAIL)(19) NISSAN GEAR LUBE (16 GAL DRUM)(19) TOHATSU 4-CYCLE FCW OIL (12-QUARTS)(19) TOHATSU 4-CYCLE FCW OIL (6-GALLONS)(19) NISSAN 4-CYCLE FCW OIL (12-QUARTS)(19) NISSAN 4-CYCLE FCW OIL (6-GALLONS)(20) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(20) NISSAN GREASE (10-14 OZ. CARTRIDGE)(21) TOUCH-UP PAINT (SILVER GRAY)(22) VINYL MOTOR COVER (S)(23) FLUSHING ATTACHMENT(24) FUEL TANK ASSY (12L)(24) FUEL TANK ASSY (12L)(25) PRIMER BULB ASSY(26) ALTERNATOR KIT(27) RECITIFIER KIT



Parts List
2002 :: 6 HP :: 4 Stroke Tohatsu MFS6A2 :: OPTIONAL PARTS (2) ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ALTERNATOR (12V60W) 399060231M 399-06023-1 $32.55 1
(2) SCREW 9215216520M 921521-6520 $0.42 2
(3) CLAMP 4.2-3-8 369069150M 369-06915-0 $2.48 1
(4) SCREW 9215216408M 921521-6408 $0.67 1
(5) EXTENSION CORD LIGHT 369761670M 369-76167-0 $11.33 1
(6) RECTIFIER 369760601M 369-76060-1 $52.26 1
(6-1) FUSE (10A) 334762110M 334-76211-0 $2.03 1
(7) SCREW 9215030530M 921503-0530 $0.70 1
(8) SPRING WASHER 9413030500M 941303-0500 $0.97 1
(9) WASHER 9401030500M 940103-0500 $0.56 1
(10) CLAMP 7-80P 353069720M 353-06972-0 $2.35 1
(11) NUT 9301030500M 930103-0500 $0.92 1
(12) EXTENSION CORD 369761610M 369-76161-0 $11.79 1
(13) VERTICAL STARTING ELBOW 369B059110 369B05911-0 $78.27 1
(14) VERTICAL STARTING SEAL 3B2059120M 3B2-05912-0 $14.45 1
(15) TAPPING SCREW 6-12 369059130M 369-05913-0 $0.00 4 Sold Out View More Details
(16) LONG HANDLE 0.4M 3B2630370 3B2-63037-0 $0.00 1 Sold Out View More Details
(16) LONG HANDLE 0.8M 3A1630390M 3A1-63039-0 $0.00 1 Sold Out View More Details
(16) LONG HANDLE 1.0M 3A1630380M 3A1-63038-0 $0.00 1 Sold Out View More Details
(17) SPARK TESTER 3F3725400M 3F3-72540-0 $181.77 1
(18) TEST PROPELLER 369641110M 369-64111-0 $0.00 1 Sold Out View More Details
(19) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $150.31 1
(19) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $214.27 1
(19) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(19) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $150.31 1
(19) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $214.27 1
(19) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(19) TOHATSU 4-CYCLE FCW OIL (12-QUARTS) 332823080M 332823080M QUARTS - 12 PER CASE $132.74 1
(19) TOHATSU 4-CYCLE FCW OIL (6-GALLONS) 332823050M 332823050M GALLONS - 6 PER CASE $158.85 1
(19) NISSAN 4-CYCLE FCW OIL (12-QUARTS) 332823070M 332823070M QUARTS - 12 PER CASE $132.74 1
(19) NISSAN 4-CYCLE FCW OIL (6-GALLONS) 332823020M 332823020M GALLONS - 6 PER CASE $158.85 1
(20) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $0.00 1 Sold Out View More Details
(20) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $0.00 1 Sold Out View More Details
(21) TOUCH-UP PAINT (SILVER GRAY) 3B7723260M 3B7-72326-0 N.A.F.N. $0.00 1 Sold Out View More Details
(22) VINYL MOTOR COVER (S) 369723140M 369-72314-0 UNIQUE $0.00 1 Sold Out View More Details
(23) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.61 1
(24) FUEL TANK (12L PLASTIC) 3B2701670M 3B2-70167-0 TOHATSU $93.44 1
(24) FUEL TANK (12L PLASTIC) 99998FT12M 99998FT12M NISSAN $93.44 1
(25) PRIMER BULB ASSY 3H6702000M 3H6-70200-0 $131.17 1
(26) ALTERNATOR KIT 3H6061280M 3H6-06128-0 $33.07 1
(27) RECTIFIER KIT 3H6761600M 3H6-76160-0 $53.27 1
