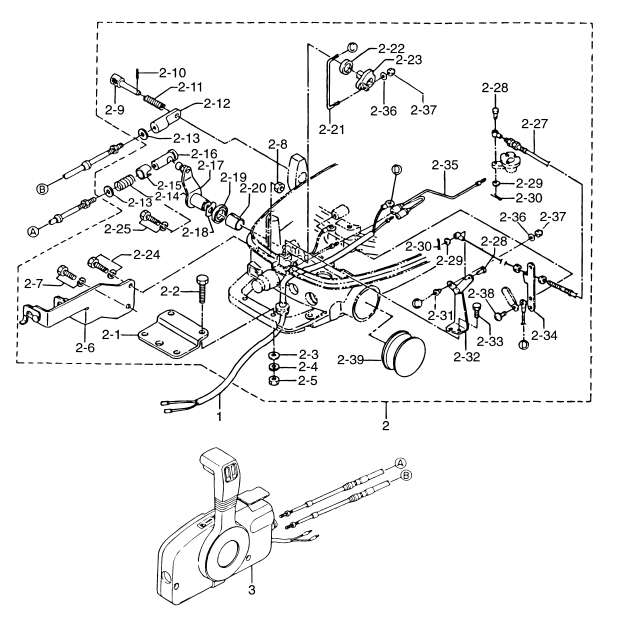

17. OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)

Click Here for Microfiche Usage Tip
(1) R.C. STOP CORD 2.0M(1) R.C. STOP CORD 3.2M(1) R.C. STOP CORD 3.9M(1) R.C. STOP CORD 5.9M(2) S. R. C. FITTING PARTS ASSY(2-1) STEERING HOOK PLATE(2-2) BOLT(2-3) WASHER(2-4) SPRING WASHER(2-5) NUT(2-6) CABLE CLIP ASSY(2-7) BOLT(2-8) NUT(2-9) LOCK PIN(2-10) SPRING PIN, 2 -12(2-11) SPRING, LOCK PIN(2-12) SLEEVE B GUIDE(2-13) WASHER, 5.5 -14 -1.2(2-13) WASHER, 5.5 -14 -1.2(2-14) CAP SPRING(2-15) HOLDER CAP(2-16) BALL HOLDER(2-17) THROTTLE LEVER A ASSY(2-18) WAVE WASHER, D=14(2-19) SEAL RING, THROTTLE LEVER(2-20) BUSHING, THROTTLE LEVER(2-21) THROTTLE LINK ROD(2-22) COLLAR,13.5 -18 - 2.5(2-23) LEVER, THROTTLE LINK ASSY(2-24) BOLT(2-25) BOLT(2-27) THROTTLE WIRE(2-28) PIN, THROTTLE WIRE(2-28) PIN, THROTTLE WIRE(2-29) WASHER(2-29) WASHER(2-30) SPLIT PIN, 1.2 -10(2-30) SPLIT PIN, 1.2 -10(2-31) ROD BUSHING O3(2-32) THROTTLE LINK ASSY(2-33) BOLT(2-34) BRACKET, THROTTLE WIRE(2-35) SEPARATE CORD(2-36) WASHER(2-36) WASHER(2-37) NYLON NUT, 3P 0.5(2-37) NYLON NUT, 3P 0.5(2-38) SCREW(2-39) GROMMET(3) SINGLE REMOTE CONTROL BOX ASSY (RC5D)(3) SINGLE REMOTE CONTROL BOX ASSY (RC5D)



Parts List
2002 :: 6 HP :: 4 Stroke Tohatsu MFS6A2 :: OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) R.C. STOP CORD 2.0M (6.6 FEET) 369838460M 369-83846-0 $0.00 1 Sold Out View More Details
(1) R.C. STOP CORD 3.2M (10.5 FEET) 369838480M 369-83848-0 $64.41 1
(1) R.C. STOP CORD 3.9M (12.8 FEET) 369838530M 369-83853-0 $71.35 1 Sold Out View More Details
(1) R.C. STOP CORD 5.9M (19.4 FEET) 369838580M 369-83858-0 $99.14 1 Sold Out View More Details
(2) REMOTE CONTROL FITTING PARTS 3H6838801M 3H6-83880-1 $0.00 1 Sold Out View More Details
(2-1) STEERING HOOK PLATE 369838302M 369-83830-2 $12.20 1
(2-2) BOLT 9101030830M 910103-0830 OR 910113-0830 $1.38 2
(2-3) WASHER 9401030800M 940113-0800 OR 940113-0800 $0.84 2
(2-4) SPRING WASHER 9413030800M 941303-0800 $0.79 2
(2-5) NUT 9301030800M 930103-0800 OR 930113-0800 $1.99 2
(2-6) CABLE CLIP 369838200M 369-83820-0 $30.77 1
(2-7) BOLT 9101036616M 910103-6616 $1.20 1
(2-8) NUT 9301030600M 930113-0600 OR 930113-0600 $0.84 2
(2-9) LOCK PIN 332837280M 332-83728-0 $12.61 1
(2-10) SPRING PIN 2-12 9514030212M 951403-0212 $0.70 1
(2-11) LOCK PIN SPRING 332837290M 332-83729-0 $1.61 1
(2-12) CABLE JOINT 369837151M 369-83715-1 $4.83 1
(2-13) WASHER 5.5-14-1.2 332837250M 332-83725-0 $0.97 2
(2-14) CAP SPRING 332837240M 332-83724-0 $1.41 1
(2-15) HOLDER CAP 332837230M 332-83723-0 $8.63 1
(2-16) BALL JOINT HOLDER 3A1837220M 3A1-83722-0 $10.59 1
(2-17) THROTTLE LEVER A 3H6839101M 3H6-83910-1 $42.76 1
(2-18) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(2-19) SEAL RING 338671470M 338-67147-0 $1.85 1
(2-20) BUSHING 369671050M 369-67105-0 $2.07 1
(2-21) THROTTLE LINK ROD 3H6838252M 3H6-83825-2 $2.45 1
(2-22) COLLAR 13.5-18-2.5 369838880M 369-83888-0 $0.65 1
(2-23) THROTTLE LINK LEVER 3H6839201M 3H6-83920-1 $9.02 1
(2-24) BOLT 9101036625M 910103-6625 $1.01 1
(2-25) BOLT 9101535635M 910153-5635 $2.08 1
(2-27) THROTTLE WIRE 3H6838631M 3H6-83863-1 $27.03 1
(2-28) THROTTLE CABLE PIN 3H6636260M 3H6-63626-0 $4.78 2
(2-29) WASHER 9401030400M 940103-0400 $0.58 2
(2-30) SPLIT PIN 1.2-10 9515031210M 951503-1210 $0.00 2 Sold Out View More Details
(2-31) ROD BUSHING ø 3 3H6636270M 3H6-63627-0 $0.00 1 Sold Out View More Details
(2-32) THROTTLE LINK 3H6838670M 3H6-83867-0 $6.21 1
(2-33) BOLT 9101030612M 910113-0612 OR 910113-0612 $0.84 1
(2-34) BRACKET THROTTLE WIRE 3H6838621M 3H6-83862-1 $7.32 1
(2-35) SEPARATE CORD 3H6838830M 3H6-83883-0 $0.00 1 Sold Out View More Details
(2-36) WASHER 9401030300M 940103-0300 $0.84 2
(2-37) NYLON NUT 3-P0.5 9304030300M 930403-0300 $0.00 2 Sold Out View More Details
(2-38) SCREW 9215037616M 921503-7616 $1.36 2
(2-39) GROMMET 43-23 3H6671610M 3H6-67161-0 $6.74 1
(3) SINGLE REMOTE CONTROL BOX ASSY (RC5D) 3B7843600M 3B7-84360-0 TOHATSU $310.10 1
(3) SINGLE REMOTE CONTROL BOX ASSY (RC5D) 373843602M 373-84360-2 NISSAN $0.00 1 Sold Out View More Details
