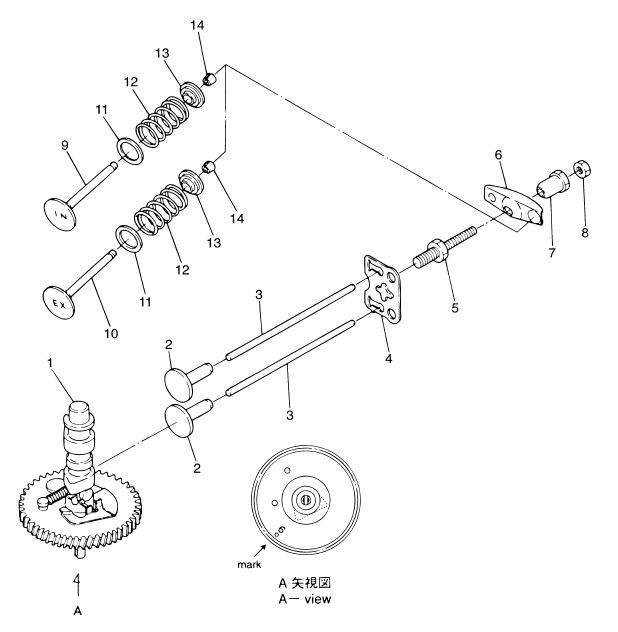

5. CAMSHAFT VALVE

Click Here for Microfiche Usage Tip
(1) CAMSHAFT ASSY(2) LIFTER(2) LIFTER(3) PUSH ROD(3) PUSH ROD(4) PLATE, PUSH ROD(5) BOLT, PIVOT(6) ROCKER ARM(7) PIVOT, ROCKER ARM(8) ADJUST NUT(9) VALVE, INT.(10) VALVE, EXHAUST(11) SEAT, VALVE SPRING(11) SEAT, VALVE SPRING(12) VALVE SPRING(12) VALVE SPRING(13) RETAINER, INT. & EXHAUST(13) RETAINER, INT. & EXHAUST(14) COTTER(14) COTTER



Parts List
2002 :: 6 HP :: 4 Stroke Tohatsu MFS6A2 :: CAMSHAFT VALVE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CAMSHAFT 3R4070100M 3R4-07010-0 MARK 6 $125.82 1
(2) LIFTER 3H6072310M 3H6-07231-0 $4.98 2
(3) PUSH ROD 3H6072320M 3H6-07232-0 $3.63 2
(4) PUSH ROD PLATE 3H6072330M 3H6-07233-0 $2.58 1
(5) PIVOT BOLT 3H6072340M 3H6-07234-0 $1.71 2
(6) ROCKER ARM 3H6072350M 3H6-07235-0 $6.51 2
(7) ROCKER ARM PIVOT 3H6072360M 3H6-07236-0 $3.82 2
(8) ADJUSTING NUT 3H6072370M 3H6-07237-0 $1.11 2
(9) INTAKE VALVE 3H6072010M 3H6-07201-0 $22.69 1
(10) EXHAUST VALVE 3H6072020M 3H6-07202-0 $19.01 1
(11) VALVE SPRING SEAT 3H6072050M 3H6-07205-0 $1.30 2
(12) VALVE SPRING (OLD) 3H6072031M 3H6-07203-1 $3.43 2
(13) RETAINER 3H6072210M 3H6-07221-0 $4.40 2
(14) COTTER 3H6072230M 3H6-07223-0 $2.48 4
