3. CARBURETOR FUEL PUMP

Click Here for Microfiche Usage Tip

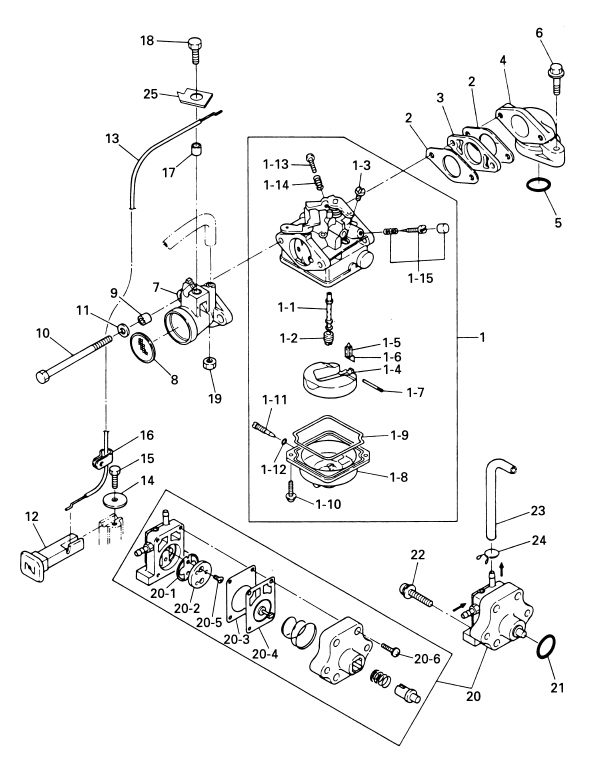

(1) CARBURETOR ASSY(1-1) MAIN NOZZLE(1-2) MAIN JET #75(1-3) PILOT JET #45(1-4) FLOAT(1-5) FLOAT VALVE(1-6) CLIP(1-7) ARM PIN, FLOAT(1-8) FLOAT CHAMBER(1-9) GASKET, FLOAT CHAMBER(1-10) SCREW(1-11) DRAIN SCREW(1-12) O-RING, DRAIN SCREW(1-13) STOP SCREW(1-14) SPRING, STOP SCREW(1-15) PILOT SCREW SET(2) GASKET, CARBURETOR(2) GASKET, CARBURETOR(3) INSULATOR(4) INLET MANIFOLD(5) O-RING, 2- 33.5(6) BOLT(7) AIR SILENCER(8) FLAME TRAP(9) COLLAR, 6.2 - 9- 7.5(10) BOLT(11) WASHER(12) CHOKE ROD(13) WIRE, CHOKE LINK(14) WASHER, 6.5 - 21-1(15) BOLT(16) CLAMP, 6.5 -14(17) COLLAR, 6.2 - 9- 7(18) BOLT(19) NUT(20) FUEL PUMP(20-1) CHECK VALVE (P)(20-2) CHECK VALVE (R)(20-3) GASKET(20-4) DIAPHRAGM(20-5) SCREW(20-6) SCREW(20-6) SCREW(21) O-RING, 2.62-18.72(22) SCREW(23) FUEL HOSE, 4.5L-115(24) CLIP, o10(25) CABLE HOLDER



Parts List
2002 :: 6 HP :: 4 Stroke Tohatsu MFS6A2 :: CARBURETOR FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CARBURETOR 3R4032000M 3R4-03200-0 3R4A $188.55 1
(1-1) MAIN NOZZLE 3R4032520M 3R4-03252-0 $14.35 1
(1-2) MAIN JET #75 3R4032510M 3R4-03251-0 $6.17 1
(1-3) SLOW JET #45 3R4032540M 3R4-03254-0 $7.66 1
(1-4) FLOAT 3H6032310M 3H6-03231-0 $16.34 1
(1-5) FLOAT VALVE 3H6032400M 3H6-03240-0 $10.17 1
(1-6) CLIP 3H6032440M 3H6-03244-0 $3.04 1
(1-7) FLOAT ARM PIN 3H6032320M 3H6-03232-0 $2.14 1
(1-8) FLOAT CHAMBER 3H6032210M 3H6-03221-0 $27.17 1
(1-9) FLOAT CHAMBER GASKET 3H6032220M 3H6-03222-0 $5.93 1
(1-10) SCREW 9225036412M 922503-6412 $1.47 2
(1-11) DRAIN SCREW 3H6032920M 3H6-03292-0 $3.55 1
(1-12) DRAIN SCREW O-RING 3H6032930M 3H6-03293-0 $1.79 1
(1-13) STOP SCREW 3H6032650M 3H6-03265-0 $5.58 1
(1-14) STOP SCREW SPRING 3H6032670M 3H6-03267-0 $1.18 1
(1-15) PILOT SCREW SET 3H6032660M 3H6-03266-0 $11.48 1
(2) CARBURETOR GASKET 3H6020110M 3H6-02011-0 $1.93 1
(3) INSULATOR 3H6039521M 3H6-03952-1 $2.10 1
(4) INTAKE MANIFOLD 3H6B020100M 3H6B02010-0 $23.75 1
(5) O-RING 2-33.5 3H6021040M 3H6-02104-0 $2.60 1
(6) BOLT 9101245625M 910124-5625 $0.86 2
(7) INTAKE SILENCER 3H6024110M 3H6-02411-0 $5.11 1
(8) FLAME ARRESTER 3H6026030M 3H6-02603-0 $2.91 1
(9) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 2 Sold Out View More Details
(10) BOLT 9164810685M 916481-0685 $1.98 2 Sold Out View More Details
(11) WASHER 9401130600M 940113-0600 OR 910103-0600 $0.83 2
(12) CHOKE ROD 3H6671510M 3H6-67151-0 $4.09 1 Sold Out View More Details
(13) CHOKE LINK CABLE 3H6671920M 3H6-67192-0 $8.93 1
(14) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(15) BOLT 9101130612M 910113-0612 OR 910103-0612 $0.84 1
(16) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(17) COLLAR 6.2-9-7 3H6760790M 3H6-76079-0 $1.79 1
(18) BOLT 9101130616M 910113-0616 OR 910103-0616 $0.98 1
(19) NUT 9301130600M 930113-0600 OR 930103-0600 $0.84 1
(20) FUEL PUMP 3H6040001M 3H6-04000-1 A MARK $66.10 1
(20-1) CHECK VALVE (P) 3H6040440M 3H6-04044-0 $2.58 1
(20-2) CHECK VALVE ( R ) 3H6040140M 3H6-04014-0 $5.57 1
(20-3) PUMP BODY GASKET 3H6040280M 3H6-04028-0 $7.02 1
(20-4) PUMP DIAPHRAGM 3H6040050M 3H6-04005-0 $30.87 1
(20-5) SCREW 9216030308M 921603-0308 $0.97 2
(20-6) SCREW 9225036418M 922503-6418 $0.76 4
(20-6) SCREW 9225036414M 922503-6414 OLD 3H6-04000-0 ONLY $1.27 4
(21) O-RING 2.62-18.72 3H6074220M 3H6-07422-0 $1.57 1
(22) SCREW 9215037630M 921503-7630 $1.02 2
(23) FUEL HOSE 4.5L-115 3H6022040M 3H6-02204-0 $0.00 1 Sold Out View More Details
(24) CLIP ø10 338022150M 338-02215-0 $1.41 1
(25) CABLE HOLDER 3H6635050M 3H6-63505-0 $2.08 1
