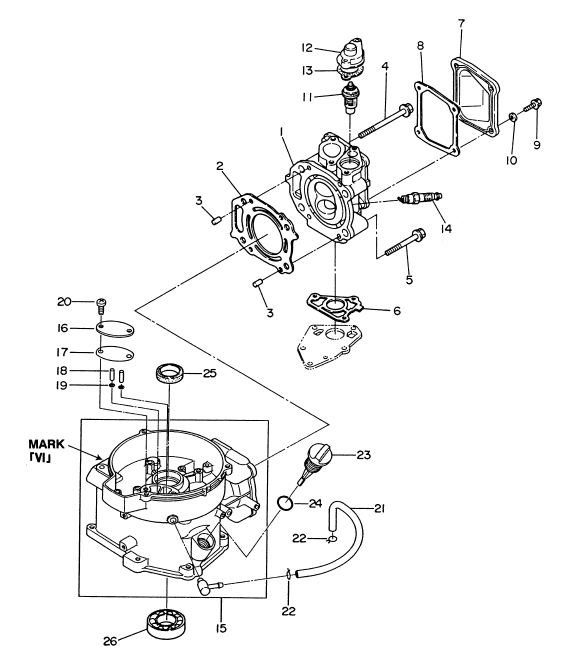

1. CYLINDER CYLINDER HEAD

Click Here for Microfiche Usage Tip
(1) CYLINDER HEAD COMP.(2) GASKET, CYLINDER HEAD(3) KNOCK, 6-12(3) KNOCK, 6-12(4) BOLT, CYLINDER HEAD(5) BOLT, CYLINDER HEAD(6) GASKET, EXHAUST PORT(7) COVER, CYLINDER HEAD(8) GASKET, HEAD COVER(9) BOLT(10) WASHER, 6 -16 -1.5(11) THERMOSTAT(12) CAP, THERMOSTAT(13) GASKET, THERMOSTAT(14) SPARK PLUG DCPR6E(15) CYLINDER COMP.(16) CAP, BREATHER CHAMBER(17) GASKET, BREATHER CAP(18) COLLAR, BREATHER(19) WAVE WASHER, D=5(20) SCREW(21) BREATHER PIPE(22) CLIP(22) CLIP(23) FILLER CAP, ENGINE OIL(24) O-RING, 2.62-18.72(25) OIL SEAL, 20 - 35 - 7(26) BEARING, 6205



Parts List
2002 :: 6 HP :: 4 Stroke Tohatsu MFS6A2 :: CYLINDER CYLINDER HEAD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CYLINDER HEAD 3R4B010011 3R4B01001-1 $237.88 1
(2) CYLINDER HEAD GASKET 3H6010051M 3H6-01005-1 $9.29 1
(3) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(4) CYLINDER HEAD BOLT 3H6010120M 3H6-01012-0 8-90 $2.01 2
(5) CYLINDER HEAD BOLT 3H6010130M 3H6-01013-0 8-60 $1.53 2
(6) EXHAUST COVER GASKET (OUTER) 3H6023060M 3H6-02306-0 $3.20 1
(7) CYLINDER HEAD COVER 3H6B010210 3H6B01021-0 $25.08 1
(8) CYLINDER HEAD COVER GASKET 3H6010240M 3H6-01024-0 $2.77 1
(9) BOLT 9101210616M 910121-0616 $0.98 4
(10) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 4 Sold Out View More Details
(11) THERMOSTAT 3H6010300M 3H6-01030-0 MARK 5B $32.67 1
(12) THERMOSTAT CAP 3H6B010310M 3H6B01031-0 $10.65 1 Sold Out View More Details
(13) THERMOSTAT CAP GASKET 346010320M 346-01032-0 $1.93 1
(14) SPARK PLUG 970111103M 9701-1-1103 $6.50 1
(15) CYLINDER 3R1B011004 3R1B01100-4 MARK [VI] $0.00 1 Sold Out View More Details
(16) BREATHER CHAMBER COVER 3R1B074311 3R1B07431-1 $2.74 1 Sold Out View More Details
(17) BREATHER CHAMBER COVER GASKET 3R1074321M 3R1-07432-1 $0.88 1
(18) BREATHER COLLAR 3R1074390M 3R1-07439-0 $1.55 2
(19) WAVE WASHER D=5 9414030500M 941403-0500 $0.55 2 Sold Out View More Details
(20) SCREW 9215216616M 921521-6616 $0.81 2
(21) BREATHER HOSE 3R1074350M 3R1-07435-0 $3.87 1
(22) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(23) OIL LEVEL GAUGE 3H6074210M 3H6-07421-0 $3.05 1
(24) O-RING 2.62-18.72 3H6074220M 3H6-07422-0 $1.57 1
(25) OIL SEAL 20-35-7 101001210M 101-00121-0 $12.36 1
(26) BALL BEARING 6205 960136205M 9601-3-6205 $17.28 1
