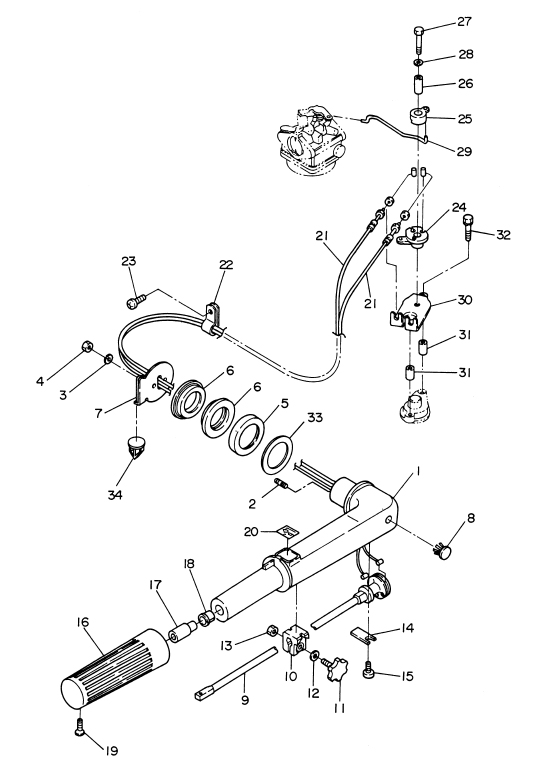

7. HANDLE THROTTLE

Click Here for Microfiche Usage Tip
(1) STEERING HANDLE(2) STUD BOLT(3) SPRING WASHER(4) NUT(5) SPACER, HANDLE(6) BUSHING, STEERING HANDLE(6) BUSHING, STEERING HANDLE(7) STOPPER, STEERING HANDLE(8) PLASTIC RIVET, 6.5(9) THROTTLE SHAFT(10) FRICTION PIECE, GRIP(11) ADJUST SCREW(12) WASHER(13) NUT(14) SUPPORTER, THROTTLE SHAFT(15) SCREW(16) GRIP(17) RUBBER, THROTTLE SHAFT(18) BUSHING,14 -15.8 - 7(19) SCREW(20) THROTTLE LABEL(21) THROTTLE WIRE(21) THROTTLE WIRE(22) CLAMP, 6.5 -14(23) SCREW(24) THROTTLE DRUM(25) THROTTLE OPENER(26) COLLAR, DRUM(27) BOLT(28) WASHER, 6 -16 -1.5(29) THROTTLE ROD(30) BRACKET, THROTTLE WIRE(31) COLLAR, BRACKET(31) COLLAR, BRACKET(32) BOLT(33) WASHER, 30 - 45 -1(34) ANCHOR CLIP, 6.5



Parts List
2002 :: 4 HP :: 4 Stroke Tohatsu MFS4A2 :: HANDLE THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) STEERING HANDLE 3H6S630110 3H6S63011-0 $0.00 1 Sold Out View More Details
(2) STUD BOLT 3B2631041M 3B2-63104-1 $3.27 2
(3) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(4) NUT 9301130600M 930113-0600 OR 930103-0600 $0.84 2
(5) TILLER HANDLE SPACER 3H6630260M 3H6-63026-0 $3.51 1
(6) TILLER HANDLE BUSHING 3H6631020M 3H6-63102-0 $3.37 2
(7) TILLER HANDLE STOPPER 3H6631030M 3H6-63103-0 $5.76 1
(8) PLASTIC RIVET 6.5 350671540M 350-67154-0 $1.85 1
(9) THROTTLE SHAFT 3B2630410M 3B2-63041-0 $18.64 1
(10) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 $4.19 1
(11) ADJUSTING SCREW 3B2630340M 3B2-63034-0 $4.19 1
(12) WASHER 9401130600M 940113-0600 OR 940103-0600 $0.83 1
(13) NUT 9301130600M 930113-0600 OR 930103-0600 $0.84 1
(14) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 $2.31 1
(15) SCREW 9215130612M 921513-0612 OR 921503-0612 $0.93 1
(16) GRIP 369630121M 369-63012-1 $29.88 1
(17) THROTTLE SHAFT DAMPER 3H6630480M 3H6-63048-0 $1.85 1 Sold Out View More Details
(18) BUSHING 14 -15.8 - 7 3H6635060M 3H6-63506-0 $0.00 1 Sold Out View More Details
(19) SCREW 9208030518M 9208E3-0518 $0.92 1
(20) THROTTLE DECAL 369720191M 369-72019-1 $1.20 1
(21) THROTTLE CABLE (OLD) 3H6636000M 3H6-63600-0 $14.50 2
(22) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(23) SCREW 9215130612M 921513-0612 OR 921503-0612 $0.93 1
(24) THROTTLE DRUM 3H6636110M 3H6-63611-0 $3.55 1
(25) THROTTLE OPENER 3H6636120M 3H6-63612-0 $1.71 1
(26) COLLAR 6.5-10.5-22.6 3H6636180M 3H6-63618-0 $4.28 1
(27) BOLT 9101036635M 910103-6635 $1.09 1 Sold Out View More Details
(28) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 OR 3C8-66308-0 $1.59 1 Sold Out View More Details
(29) THROTTLE ROD 3H6636170M 3H6-63617-0 $3.85 1
(30) THROTTLE CABLE BRACKET 3H6636150M 3H6-63615-0 $0.00 1 Sold Out View More Details
(31) COLLAR 6.5-10.5-10 3H6636191M 3H6-63619-1 $4.19 2
(32) BOLT 9101036645M 910103-6645 $1.18 2
(33) WASHER 30-45-1 3B2631080M 3B2-63108-0 $1.41 1
(34) ANCHOR CLIP 6.5 3H6671540M 3H6-67154-0 $1.39 1
