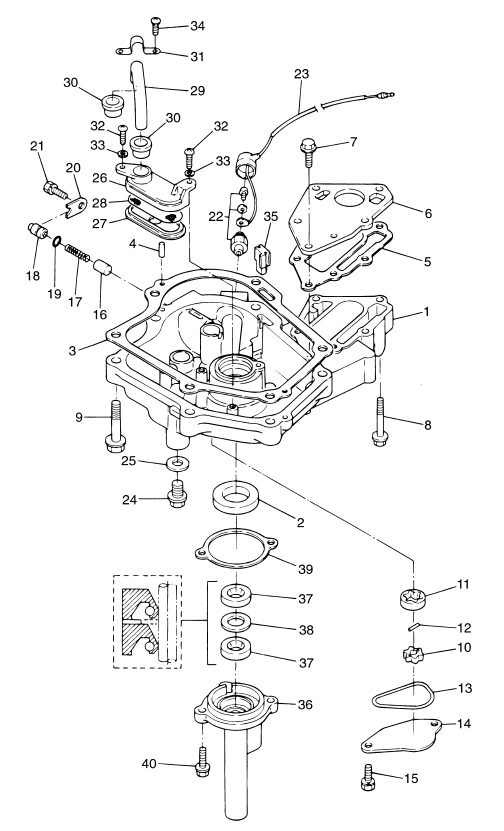

4. OIL PAN

Click Here for Microfiche Usage Tip
(1) OIL PAN COMP.(2) OIL SEAL, 25 - 40 - 8(3) GASKET, OIL PAN(4) KNOCK, 6-12(5) GASKET, EXHAUST PLATE(6) PLATE, EXHAUST(7) BOLT(8) BOLT(9) BOLT(10) ROTOR, OIL PUMP INNER(11) ROTOR, OIL PUMP OUTER(12) PIN, OIL PUMP(13) O-RING, OIL PUMP(14) COVER, OIL PUMP(15) BOLT(16) PLUNGER, CONTROL(17) SPRING, PRESSURE(18) SEAT, SPRING(19) O-RING,1.9 - 6.8(20) COVER, PLUNGER(21) BOLT(22) SWITCH, OIL PRESSURE(23) LEAD WIRE, OIL PRESSURE SWITCH(24) BOLT, DRAIN(25) WASHER,10.2 -19 -1(26) BODY, STRAINER(27) CAP, STRAINER(28) MESH, STRAINER(29) PIPE, STRAINER(30) SEAL RUBBER, STRAINER(30) SEAL RUBBER, STRAINER(31) STOPPER, STRAINER(32) BOLT, 5 -16(32) BOLT, 5 -16(33) WASHER(33) WASHER(34) SCREW(35) GROMMET, OIL PAN(36) HEAD, CRANK CASE(37) OIL SEAL, 10.1 - 25 - 7(37) OIL SEAL, 10.1 - 25 - 7(38) SPACER,19 - 24.8 -1.0(39) GASKET, CRANKCASE HEAD(40) BOLT



Parts List
2002 :: 4 HP :: 4 Stroke Nissan NSF4A2 :: OIL PAN
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL PAN 3H6B074010 3H6B07401-0 $210.91 1
(2) OIL SEAL 25-40-8 334001220M 334-00122-0 $7.59 1
(3) OIL PAN GASKET 3H6074020M 3H6-07402-0 $8.70 1
(4) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(5) EXHAUST COVER GASKET (INNER) 3H6023050M 3H6-02305-0 $4.38 1
(6) EXHAUST COVER (INNER) 3H6023021M 3H6-02302-1 $14.08 1
(7) BOLT 9101145620M 910114-5620 $1.53 3
(8) BOLT 9101145640M 910114-5640 $0.76 3
(9) BOLT 9101245840M 910124-5840 $1.34 6
(10) OIL PUMP ROTOR (INNER) 3H6076010M 3H6-07601-0 $4.97 1
(11) OIL PUMP ROTOR (OUTER) 3H6076020M 3H6-07602-0 $5.15 1
(12) OIL PUMP PIN 3H6076030M 3H6-07603-0 $0.97 1
(13) OIL PUMP O-RING 3H6076050M 3H6-07605-0 $1.59 1
(14) OIL PUMP COVER 3H6076060M 3H6-07606-0 $2.86 1
(15) BOLT 9101216616M 910121-6616 $0.84 2
(16) PLUNGER CONTROL 3H6076210M 3H6-07621-0 $3.39 1
(17) PRESSURE SPRING 3H6076220M 3H6-07622-0 $1.43 1
(18) SPRING SEAT 3H6076230M 3H6-07623-0 $4.19 1
(19) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 1
(20) PLUNGER COVER 3H6671150M 3H6-67115-0 $0.92 1
(21) BOLT 9101216616M 910121-6616 $0.84 1
(22) OIL PRESSURE SWITCH 3H6076110M 3H6-07611-0 $17.57 1
(23) OIL PRESSURE SWITCH LEAD CABLE 3H6076130M 3H6-07613-0 $4.98 1
(24) DRAIN BOLT 3H6074050M 3H6-07405-0 $4.15 1
(25) WASHER 10.2-19-1 3H6074060M 3H6-07406-0 $1.30 1
(26) STRAINER BODY 3H6074110M 3H6-07411-0 $3.82 1
(27) STRAINER CAP 3H6074120M 3H6-07412-0 $3.14 1
(28) STRAINER MESH 3H6074130M 3H6-07413-0 $2.82 1
(29) STRAINER PIPE 3H6074150M 3H6-07415-0 $4.28 1
(30) STRAINER SEAL 3H6074160M 3H6-07416-0 $2.25 2
(31) STRAINER STOPPER 3H6074170M 3H6-07417-0 $1.22 1
(32) BOLT 5-16 PRE-COATED 3C8024200M 3C8-02420-0 $1.85 2
(33) WASHER 9401210500M 940121-0500 $0.83 2
(34) SCREW 9215216512M 921521-6512 $0.81 1
(35) OIL PAN GROMMET 3H6074040M 3H6-07404-0 $2.71 1
(36) CRANK CASE HEAD 369012104M 369-01210-4 $22.31 1
(37) OIL SEAL 10-25-7 369012150M 369-01215-0 $5.07 2
(38) SPACER 19-24.8-1 369012170M 369-01217-0 $1.30 1
(39) CRANK CASE HEAD GASKET 369012140M 369-01214-0 $12.31 1
(40) BOLT 9101035620M 910103-5620 OR 910113-5620 $1.30 2
