2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

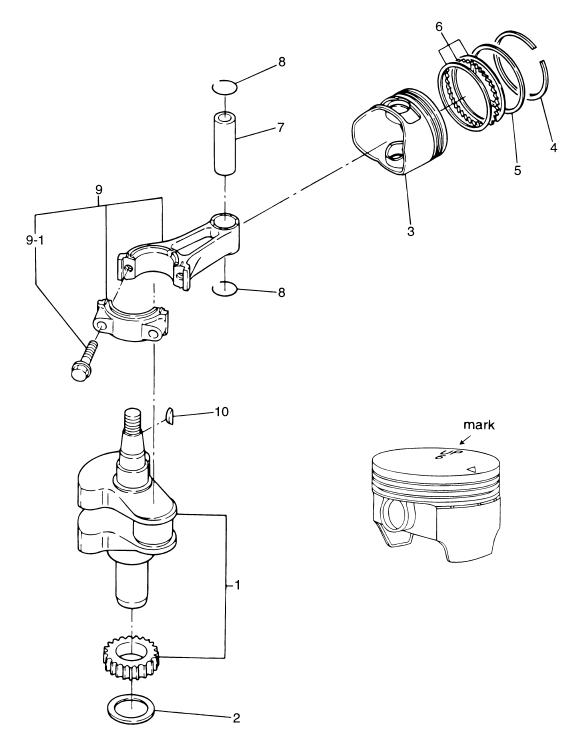

(1) CRANKSHAFT ASSY(2) WASHER(3) PISTON(4) PISTON RING TOP(4) PISTON RING TOP 0.5 MM O/S(5) PISTON RING 2ND(5) PISTON RING 2ND 0.5 MM O/S(6) PISTON RING OIL(6) PISTON RING OIL 0.5 MM O/S(7) PISTON PIN(8) CLIP, PISTON PIN(9) CONNECTING ROD ASSY(9-1) BOLT, CONNECTING ROD(10) MAGNETO KEY(3) PISTON 0.5MM O/S



Parts List
2002 :: 4 HP :: 4 Stroke Nissan NSF4A2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3H6000300M 3H6-00030-0 $183.18 1
(2) WASHER 25.4-36-1 3H6001150M 3H6-00115-0 $1.57 1
(3) PISTON 3R4000012M 3R4-00001-2 MARK 6 $36.49 1
(3) PISTON 0.5MM O/S 3R4000042M 3R4-00004-2 OPTION $41.47 1
(4) PISTON RING TOP 3H6000110M 3H6-00011-0 $10.41 1
(4) PISTON RING TOP (0.5MM O/S) 3H6000140M 3H6-00014-0 OPTION $7.62 1
(5) PISTON RING 2ND 3H6000120M 3H6-00012-0 $6.27 1
(5) PISTON RING 2ND (0.5MM O/S) 3H6000150M 3H6-00015-0 OPTION $7.62 1
(6) PISTON RING OIL 3H6000130M 3H6-00013-0 $8.47 1
(6) PISTON RING OIL (0.5MM O/S) 3H6000160M 3H6-00016-0 OPTION $7.62 1
(7) PISTON PIN 3H6000210M 3H6-00021-0 $4.86 1
(8) PISTON PIN CLIP 3H6000240M 3H6-00024-0 $0.92 2
(9) CONNECTING ROD 3H6000400M 3H6-00040-0 $45.55 1
(9-1) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 2
(10) MAGNETO KEY 338001310M 338-00131-0 $3.39 1
