25. OPTIONAL PARTS (2)

Click Here for Microfiche Usage Tip

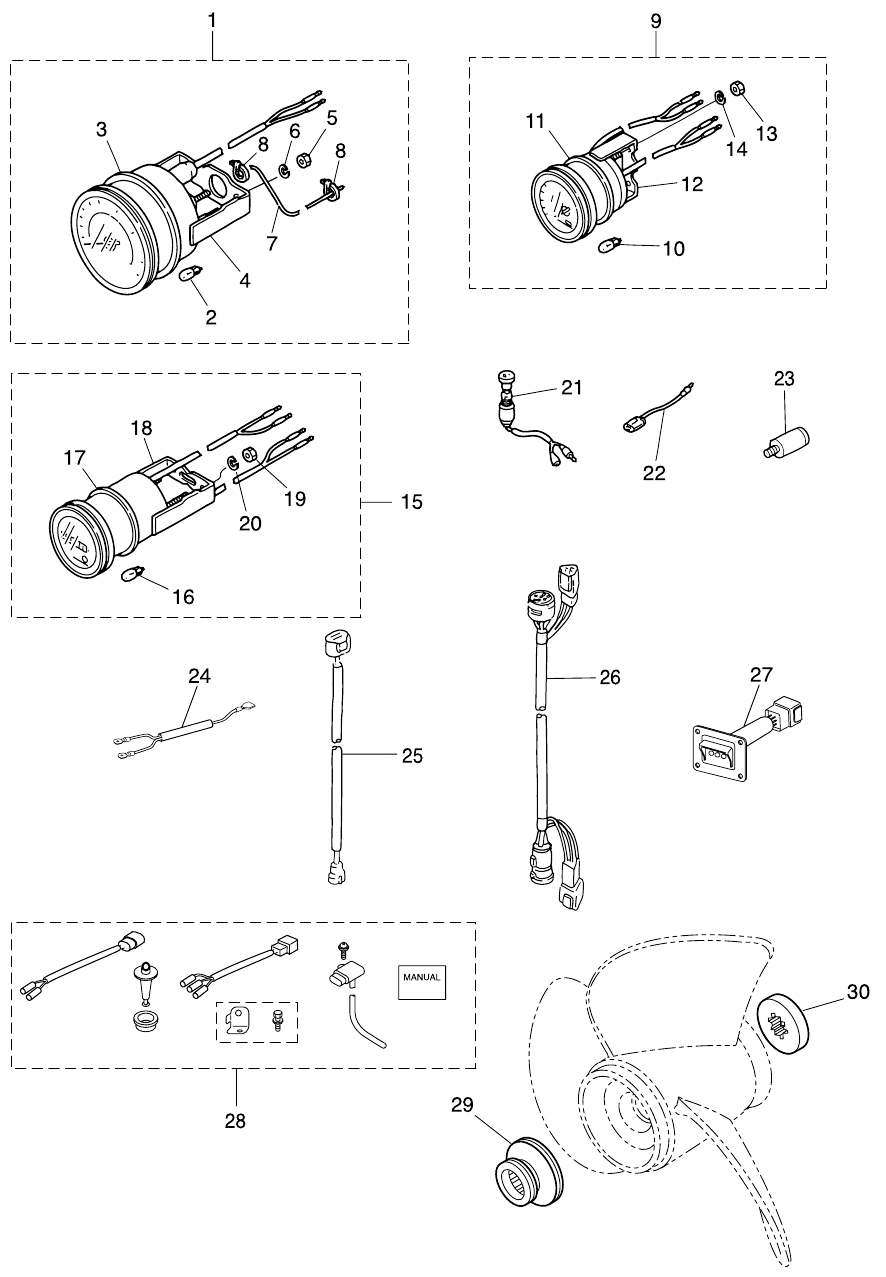

(1) SPEEDOMETER (BLACK)(1) SPEEDOMETER (WHITE)(1) SPEEDOMETER ASSY (75MPH)(1) SPEEDOMETER ASSY (50MPH)(2) METER BULB 12V-1.8W(3) METER DAMPER(4) FITTING PLATE(5) NUT(6) SPRING WASHER(7) SPEEDOMETER TUBE L=6000(8) SPEEDOMETER BAND(8) SPEEDOMETER BAND(9) VOLTMETER (BLACK)(9) VOLTMETER (WHITE)(9) VOLTMETER ASSY(10) METER BULB 12V-1.7W(11) METER DAMPER(12) FITTING PLATE(13) NUT(14) SPRING WASHER(15) HOUR METER (BLACK)(15) HOUR METER (WHITE)(15) HOUR METER ASSY(16) METER BULB 12V-1.7W(17) METER DAMPER(18) FITTING PLATE(19) NUT(20) SPRING WASHER(21) METER LAMP SWITCH(22) ASSIST CORD (BLU) L=200(22) ASSIST CORD (BLK) L=200(22) ASSIST CORD (RED) L=200(23) FLUSHING PLUG(24) LEAD WIRE L=200(25) EXTENSION CORD (TRIM SENSOR) L=2000(26) EXTENSION CORD L=2000 (11P)(27) LAMP PANEL ASSY(28) ALTITUDE ADJUSTMENT KIT(29) THRUST HOLDER(30) STOPPER



Parts List
2014 :: 115 HP :: TLDI Tohatsu MD115A2 :: OPTIONAL PARTS (2)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SPEEDOMETER KIT (60MPH) 3GF726720M 3GF726720M $178.39 1
(1) SPEEDOMETER KIT (60MPH) 3GL726720M 3GL726720M $178.39 1
(1) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 $0.00 1 Sold Out View More Details
(1) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 $0.00 1 Sold Out View More Details
(2) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR 3E0-72648-0 & 3E0-72649-0 $0.00 1 Sold Out View More Details
(3) METER DAMPER 3B7726560M 3B7-72656-0 FOR 3E0-72648-0 & 3E0-72649-0 $3.27 1
(4) FITTING PLATE 3B7726610M 3B7-72661-0 FOR 3E0-72648-0 & 3E0-72649-0 $25.33 1
(5) NUT 9302030500M 930203-0500 FOR 3E0-72648-0 & 3E0-72649-0 $0.60 2
(6) SPRING WASHER 9413030500M 941303-0500 FOR 3E0-72648-0 & 3E0-72649-0 $0.90 2
(7) SPEEDOMETER TUBE 3B7726500M 3B7-72650-0 FOR 3E0-72648-0 & 3E0-72649-0 $27.66 1 Sold Out View More Details
(8) SPEEDOMETER BAND 3B7726510M 3B7-72651-0 FOR 3E0-72648-0 & 3E0-72649-0 $2.07 2 Sold Out View More Details
(9) VOLTMETER ASSY 3GF725290M 3GF725290M $34.36 1
(9) VOLTMETER ASSY 3GL725290M 3GL725290M $34.36 1
(9) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(10) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72529-0 $0.00 1 Sold Out View More Details
(11) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72529-0 $2.68 1
(12) FITTING PLATE 3B7726620M 3B7-72662-0 FOR 3E0-72529-0 $19.58 1 Sold Out View More Details
(13) NUT 9302030400M 930203-0400 FOR 3E0-72529-0 $0.00 2 Sold Out View More Details
(14) SPRING WASHER 9413030400M 941303-0400 FOR 3E0-72529-0 $0.90 2
(15) HOUR METER ASSY 3GF725240M 3GF725240M $66.93 1
(15) HOUR METER ASSY 3GL725240M 3GL725240M $66.93 1
(15) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(16) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 FOR 3E0-72524-0 $0.00 1 Sold Out View More Details
(17) METER DAMPER 3B7726550M 3B7-72655-0 FOR 3E0-72524-0 $2.68 1
(18) FITTING PLATE 3B7726640M 3B7-72664-0 FOR 3E0-72524-0 $19.58 1 Sold Out View More Details
(19) NUT 9302030400M 930203-0400 FOR 3E0-72524-0 $0.00 2 Sold Out View More Details
(20) SPRING WASHER 9413030400M 941303-0400 FOR 3E0-72524-0 $0.90 2
(21) METER LAMP SWITCH 353725211M 353-72521-1 $19.47 1
(22) ASSIST CORD (BLUE) 353725470M 353-72547-0 $5.92 1
(22) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(22) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 1
(23) FLUSHING ATTACHMENT 3B7600070M 3B7-60007-0 $8.05 1
(24) LEAD WIRE 3Y9760490M 3Y9-76049-0 FOR TWIN OUTBOARDS / PTT MODEL $0.00 1 Sold Out View More Details
(25) TRIM METER EXTENSION CORD 3Z4725730M 3Z4-72573-0 $29.42 1
(26) 11 P EXTENSION CORD 3T5761140M 3T5-76114-0 11P $71.76 1
(27) LAMP PANEL ASSY 3Y9762510M 3Y9-76251-0 $97.87 1
(28) ALTITUDE ADJUSTMENT KIT 3GF102300M 3GF-10230-0 HIGH ALTITUDE $110.13 1
(29) THRUST HOLDER 3B7642312M 3B7642312M FOR TEST PROPELLER $72.68 1
(30) STOPPER 3B7-64233-1 NA FOR TEST PROPELLER $0.00 1 Sold Out View More Details
