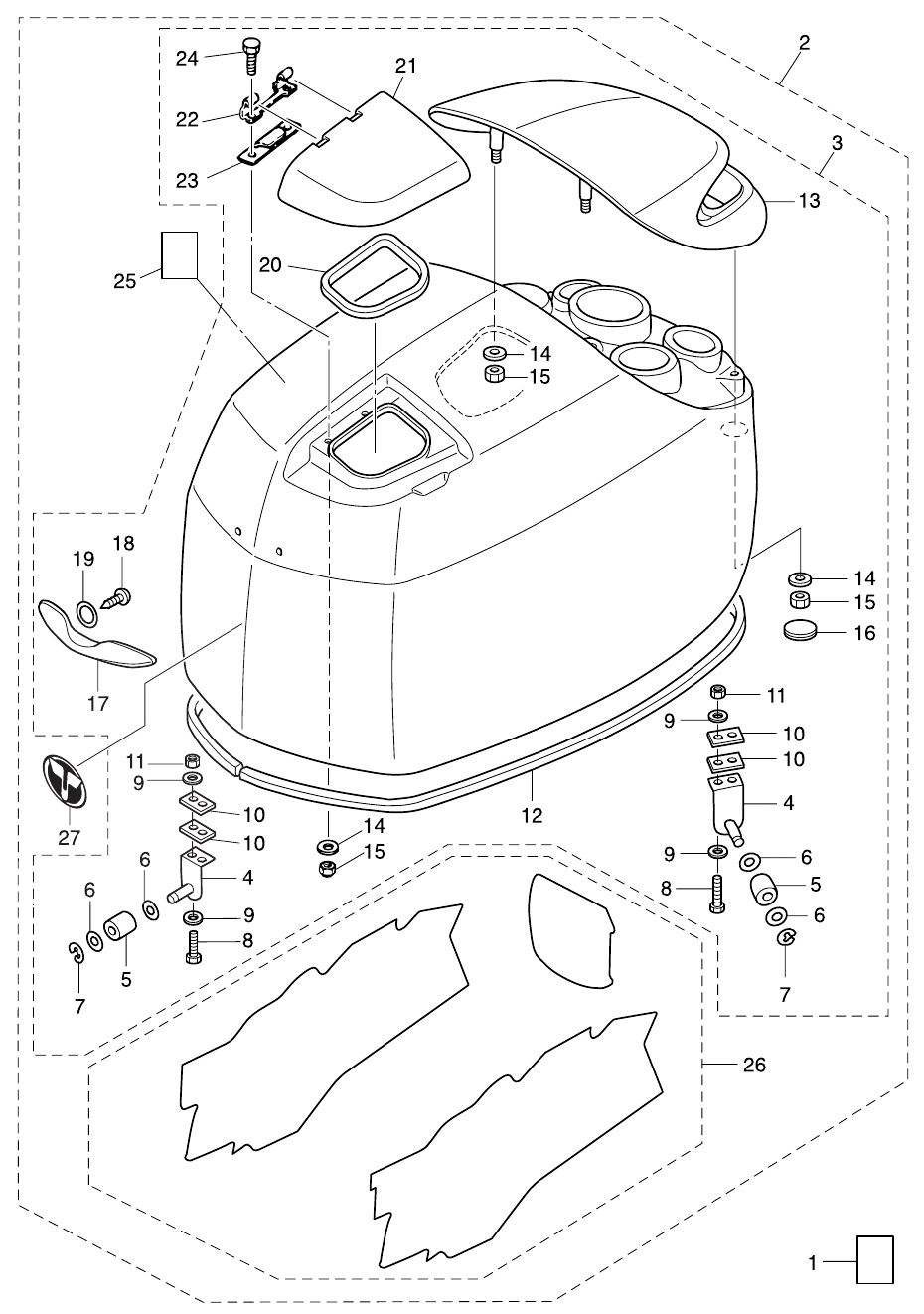

20. TOP COWL

Click Here for Microfiche Usage Tip
(1) OIL CAUTION DECAL(2) TOP COWL ASSY (TOHATSU)(2) TOP COWL ASSY (NISSAN)(3) TOP COWL SUB-ASSY(4) COVER STAY ASSY(4) COVER STAY ASSY(5) ROLLER 6.1-14.7-14(5) ROLLER 6.1-14.7-14(6) WASHER(6) WASHER(6) WASHER(6) WASHER(7) E-RING D=5(7) E-RING D=5(8) BOLT(8) BOLT(9) WASHER(9) WASHER(9) WASHER(9) WASHER(10) PLATE(10) PLATE(10) PLATE(10) PLATE(11) NYLON NUT 5-P0.8(11) NYLON NUT 5-P0.8(12) TOP COWL SEAL(13) TILT HANDLE(14) WASHER 6-16-1.5(14) WASHER 6-16-1.5(14) WASHER 6-16-1.5(15) NYLON NUT 6-P1.0(15) NYLON NUT 6-P1.0(15) NYLON NUT 6-P1.0(16) GROMMET(17) COWL HANDLE(18) TAPPING SCREW 6-16(19) WASHER 6.5-23-1.5(20) SEAL(21) FILLER LID ASSY(22) FILLER LID HINGE(23) SPRING(24) BOLT(25) CAUTION DECAL (A)(26) DECAL SET (MD115A2)(26) DECAL SET (NSD115A2)(27) FRONT DECAL



Parts List
2014 :: 115 HP :: TLDI Tohatsu MD115A2 :: TOP COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) OIL CAUTION DECAL 3T1720430M 3T1-72043-0 $1.53 1
(2) TOP COWL ASSY (TOHATSU) 3HKQ676454 3HKQ676454 TOHATSU $6,221.79 1
(2) TOP COWL ASSY (NISSAN) 3U1Q676450 3U1Q67645-0 NISSAN $0.00 1 Sold Out View More Details
(3) TOP COWL SUB-ASSY 3T1Q676400 3T1Q676400 $2,445.82 1 Sold Out View More Details
(4) COVER STAY ASSY 3T1675110M 3T1-67511-0 $17.37 3
(5) ROLLER 6.1-14.7 -14 3R0675170M 3R0-67517-0 $5.20 3
(6) WASHER 9401030600M 940103-0600 $0.75 6
(7) E-RING D=5 9453030500M 945303-0500 $0.92 3
(8) BOLT 9101030525M 910103-0525 $0.00 6 Sold Out View More Details
(9) WASHER 9401030500M 940103-0500 $0.56 12
(10) COVER STAY PLATE 3T1675160M 3T1-67516-0 $2.81 6
(11) NYLON NUT 5-P0.8 9304030500M 930403-0500 $1.57 6
(12) TOP COWL SEAL 3HK675010M 3HK-67501-0 $87.27 1
(13) TILT HANDLE 3T1Q675210 3T1Q67521-0 $129.63 1
(14) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 TILT HANDLE / FILLER LID $1.50 6
(15) NYLON NUT 6-P 1.0 9304030600M 930403-0600 TILT HANDLE / FILLER LID $2.40 6
(16) GROMMET 3F3726180M 3F3-72618-0 $4.19 2
(17) COWL HANDLE 3T1676600M 3T1-67660-0 $0.00 1 Sold Out View More Details
(18) TAPPING SCREW 6-16 3T5064370M 3T5-06437-0 $1.36 2
(19) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.33 2
(20) SEAL 3T1672130M 3T1-67213-0 $0.00 1 Sold Out View More Details
(21) FILLER LID ASSY 3T1Q672091 3T1Q67209-1 $0.00 1 Sold Out View More Details
(22) FILLER LID HINGE 3B7672110M 3B7-67211-0 $3.27 1
(23) SPRING 3T1672120M 3T1-67212-0 $0.00 1 Sold Out View More Details
(24) BOLT 9101030616M 910113-0616 $1.04 2
(25) CAUTION DECAL (A) 3C7721803M 3C7-72180-3 $2.25 1
(26) DECAL SET (MD115A2) 3HK878023M 3HK878023M TOHATSU $0.00 1 Sold Out View More Details
(26) DECAL SET 3U1N878020 3U1N87802-0 NISSAN $111.03 1 Sold Out View More Details
(27) FRONT DECAL 3GF675310M 3GF-67531-0 $44.08 1
