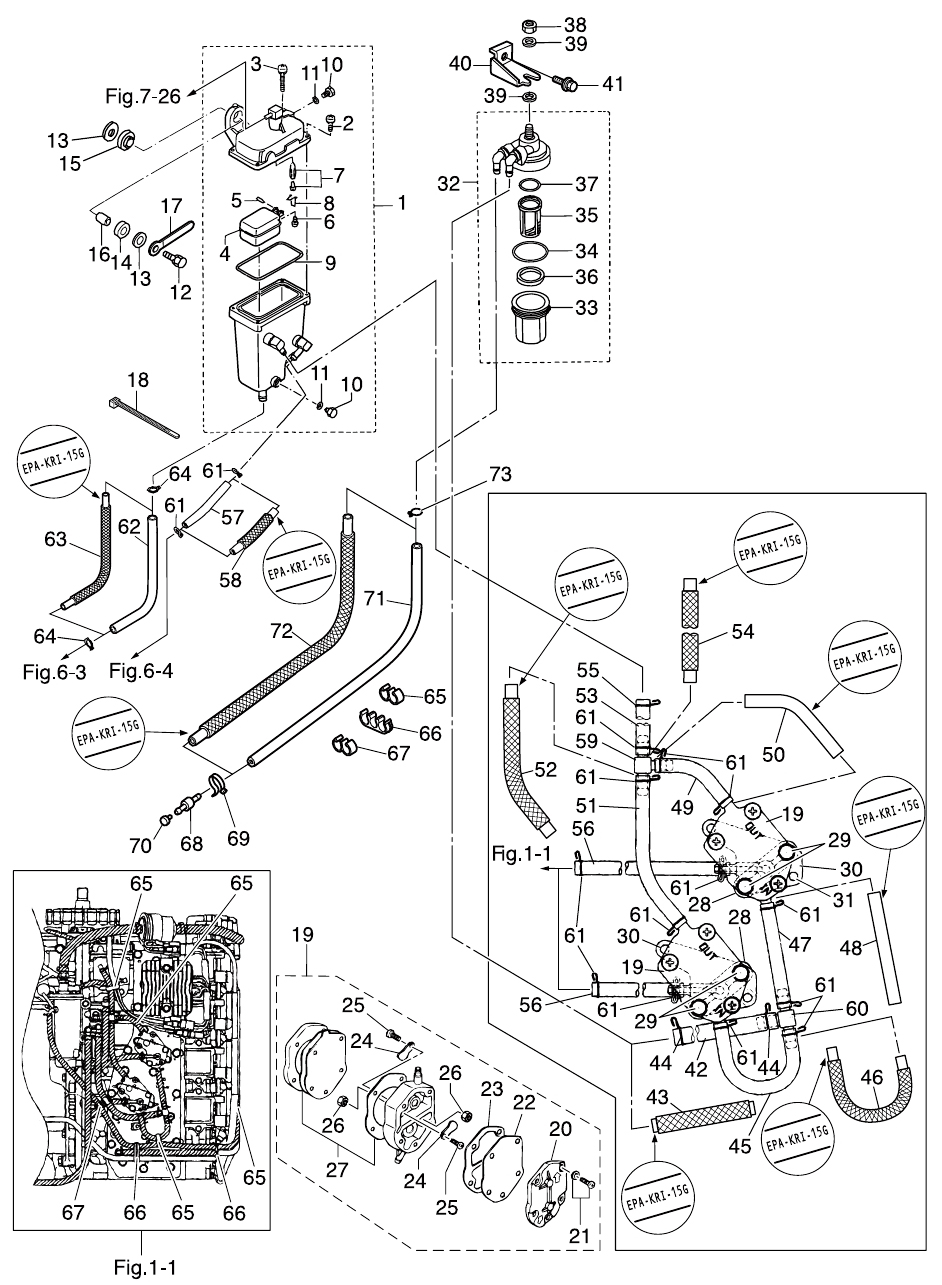

8. VAPOR SEPARATOR & FUEL LINE

Click Here for Microfiche Usage Tip
(1) VAPOR SEPARATOR ASSY(2) SCREW(3) SCREW(4) FLOAT(5) FLOAT ARM PIN(6) SCREW(7) FLOAT VALVE ASSY(8) CLIP(9) O-RING(10) DRAIN SCREW(10) DRAIN SCREW(11) O-RING(11) O-RING(12) BOLT(13) WASHER 6.5-21-1(13) WASHER 6.5-21-1(14) MOUNT 8.5-14-2.5(15) RUBBER MOUNT 8.5-14-2.5(16) SPACER 6.2-9-15.7(17) CLAMP 6.5-47.5P(18) BAND 104(19) FUEL PUMP ASSY(19) FUEL PUMP ASSY(19) FUEL PUMP ASSY(20) PUMP COVER(21) SCREW(22) PUMP DIAPHRAGM(23) DIAPHRAGM GASKET(24) CHECK VALVE(24) CHECK VALVE(25) SCREW(25) SCREW(26) NUT(26) NUT(27) DIAPHRAGM GASKET SET(28) GASKET(28) GASKET(29) BOLT(29) BOLT(30) FUEL PUMP BRACKET(30) FUEL PUMP BRACKET(31) BOLT(32) FUEL FILTER ASSY(33) CUP(34) O-RING(35) FILTER(36) FLOAT(37) O-RING(38) NUT(39) WASHER(39) WASHER(40) PLATE(41) BOLT(42) HOSE(43) FUEL HOSE W/PROTECTOR L=300(44) CLIP o12(44) CLIP o12(45) HOSE(46) FUEL HOSE W/PROTECTOR L=140(47) HOSE(48) LOW PERMEATION HOSE L=110(49) HOSE(50) LOW PERMEATION HOSE L=40(51) HOSE(52) FUEL HOSE W/PROTECTOR L=140(53) HOSE(54) FUEL HOSE W/PROTECTOR L=100(55) CLIP o9.4(56) HOSE(56) HOSE(57) HOSE(58) FUEL HOSE W/PROTECTOR L=90(59) PIPE JOINT 4-4(60) PIPE JOINT 7-5(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(61) CLIP o10(62) HOSE(63) FUEL HOSE W/PROTECTOR L=160(64) CLIP o12(64) CLIP o12(65) CLAMP o10(65) CLAMP o10(65) CLAMP o10(65) CLAMP o10(65) CLAMP o10(66) CLAMP o10(66) CLAMP o10(66) CLAMP o10(67) CLAMP o10(67) CLAMP o10(68) NIPPLE(69) BAND 104(70) PLUG(71) HOSE(72) FUEL HOSE W/PROTECTOR L=1200(73) CLIP o12



Parts List
2014 :: 115 HP :: TLDI Tohatsu MD115A2 :: VAPOR SEPARATOR & FUEL LINE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) VAPOR SEPARATOR ASSY 3T5101501M 3T5101500M V.S.T $200.01 1
(2) SCREW 9225316414M 922531-6414 $0.47 3
(3) SCREW 9215036430M 921503-6430 $0.00 1 Sold Out View More Details
(4) FLOAT 3T5032300M 3T5-03230-0 $24.02 1
(5) ARM PIN FLOAT 3F3032320M 3F3-03232-0 $2.19 1
(6) SCREW 9215030408M 921503-0408 $0.75 1
(7) FLOAT VALVE 3R3032390M 3R3-03239-0 VALVE PIN $11.64 1
(8) CLIP 344032440M 344-03244-0 $3.51 1
(9) O-RING 3T5032350M 3T5-03235-0 $5.34 1
(10) DRAIN SCREW 345032920M 345-03292-0 $3.91 2
(11) O-RING 336032930M 336-03293-0 $1.79 2
(12) BOLT 9101036630M 910103-6630 $1.30 2
(13) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(14) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 2
(15) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 2
(16) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 2
(17) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(18) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(19) FUEL PUMP 356040001M 356-04000-1 $88.09 2
(20) PUMP COVER 334040040M 334-04004-0 $16.82 1
(21) SCREW 9225F26528M 9225F2-6528 $0.69 3
(22) PUMP DIAPHRAGM 334040050M 334-04005-0 $29.88 1
(23) DIAPHRAGM GASKET B 334040070M 334-04007-0 $8.52 1
(24) CHECK VALVE 356040440M 356-04044-0 $4.19 2
(25) SCREW 9217220306M 921722-0306 $0.88 2
(26) NUT 9302220300M 930222-0300 $0.86 2
(27) DIAPHRAGM GASKET SET 356040300M 356-04030-0 $25.62 1
(28) GASKET 346049012M 346049012M $2.71 2
(29) BOLT 9101036640M 910103-6640 $1.44 4
(30) FUEL PUMP BRACKET 3T1041000M 3T1-04100-0 $21.12 2
(31) BOLT 9101035620M 910103-5620 $1.30 4
(32) FUEL FILTER 3T1022300M 3T1-02230-0 $54.10 1 Sold Out View More Details
(33) CUP 3B7022370M 3B7-02237-0 $7.34 1
(34) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(35) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(36) FLOAT 3T5022290M 3T5-02229-0 $6.84 1
(37) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(38) NUT 9301030800M 930103-0800 $1.99 1
(39) WASHER 9401030800M 940113-0800 $0.84 2
(40) FILTER PLATE 3T1022390M 3T1-02239-0 $0.00 1 Sold Out View More Details
(41) BOLT 9101036614M 910103-6614 $1.09 1
(42) HOSE 98AB70300M 98AB-70-300 FUEL FILTER-T-NIPPLE / STD 98AB-701000 $13.44 1
(43) FUEL HOSE W/PROTECTOR L=300 3HL021700M 3HL-02170-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(44) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(45) HOSE 98AB50140M 98AB-50-140 T-NIPPLE-FUEL PUMP / STD 98AB-501000 $11.41 1
(46) FUEL HOSE W/PROTECTOR L=140 3HL021650M 3HL-02165-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(47) RUBBER HOSE 98AB50110M 98AB-50-110 T-NIPPLE-FUEL PUMP / STD 98AB-501000 $11.41 1
(48) LOW PERMEATION HOSE L=110 3KD021350M 3KD-02135-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $4.05 1 Sold Out View More Details
(49) HOSE 98AB50040M 98AB-50-040 FUEL PUMP-T-NIPPLE / STD 98AB-501000 $11.41 1
(50) LOW PERMEATION HOSE L=40 3HK021350M 3HK-02135-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $1.53 1 Sold Out View More Details
(51) HOSE 98AB50140M 98AB-50-140 FUEL PUMP-T-NIPPLE / STD 98AB-501000 $11.41 1
(52) FUEL HOSE W/PROTECTOR L=140 3HL021650M 3HL-02165-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(53) HOSE 98AB50100M 98AB-50-100 T-NIPPLE-V.S.T / STD 98AB-501000 $11.41 1
(54) FUEL HOSE W/PROTECTOR L=100 3HK021660M 3HK-02166-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $3.71 1 Sold Out View More Details
(55) CLIP ø 9.5 3AB351430M 121-35143-0 $1.30 1
(56) HOSE 98AB50140M 98AB-50-140 CYLINDER-FUEL PUMP / 98AB-501000 $11.41 2
(57) RUBBER HOSE 98AB50090M 98AB-5-0090 FFP CASE-V.S.T / STD 98AB-501000 $11.41 1
(58) FUEL HOSE W/PROTECTOR L=90 3KD021650M 3KD-02165-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $3.40 1 Sold Out View More Details
(59) HOSE JOINT T TYPE 394700130M 394-70013-0 FUEL PUMP-V.S.T $2.19 1
(60) PIPE JOINT 7-5 3C7020920M 3C7-02092-0 FUEL FILTER-FUEL PUMP $3.27 1
(61) CLIP ø10 338022150M 338-02215-0 $1.41 15
(62) HOSE 98AB70160M 98AB-70-160 V.S.T-FFP CASE / STD 98AB-701000 $13.44 1
(63) FUEL HOSE W/PROTECTOR L=160 3HK021700M 3HK-02170-0 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(64) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(65) HOSE CLAMP 3T1069150M 3T1-06915-0 $1.24 4 Sold Out View More Details
(66) HOSE CLAMP 3U1069150M 3U1-06915-0 $2.94 2 Sold Out View More Details
(67) CLAMP ø10 3T1069170M 3T1-06917-0 $0.00 1 Sold Out View More Details
(68) FUEL HOSE NIPPLE 3T1600180M 3T1-60018-0 $4.38 1
(69) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(70) FUEL HOSE NIPPLE PLUG 3T1038130M 3T1-03813-0 $0.00 1 Sold Out View More Details
(71) HOSE 98AB701200M 98AB-701200 F/NIPPLE-FUEL FILTER / STD 98AB-701000 X2 $13.44 1
(72) FUEL HOSE W/PROTECTOR L=1200 3KD021701M 3KD-02170-1 LOW PERMEATION PARTS / USA EPA-KRI-15G $0.00 1 Sold Out View More Details
(73) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 1
